Reference
3Ć28
Display Modes
The digitizing oscilloscope can display waveform records in different ways.
The Display menu lets you adjust the oscilloscope display style, intensity
level, graticule, and format.
To bring up the Display menu:
1. Press DISPLAY to show the Display menu.
2. On the TDS 644A & TDS 524A, press Setting in the main menu until you
select Display from the pop-up menu.
Display lets you adjust the style, intensity level, graticule, and format features
described below. Color (TDS 644A & TDS 524A) lets you alter color settings
for various display components such as waveforms and text. For more in-
formation on color, see
Color
on page 3-12.
Display Style
Press DISPLAY ➞ Style (main) ➞ Vectors, Intensified Samples, Dots,
Infinite Persistence, or Variable Persistence (side) (Figure 3-16).

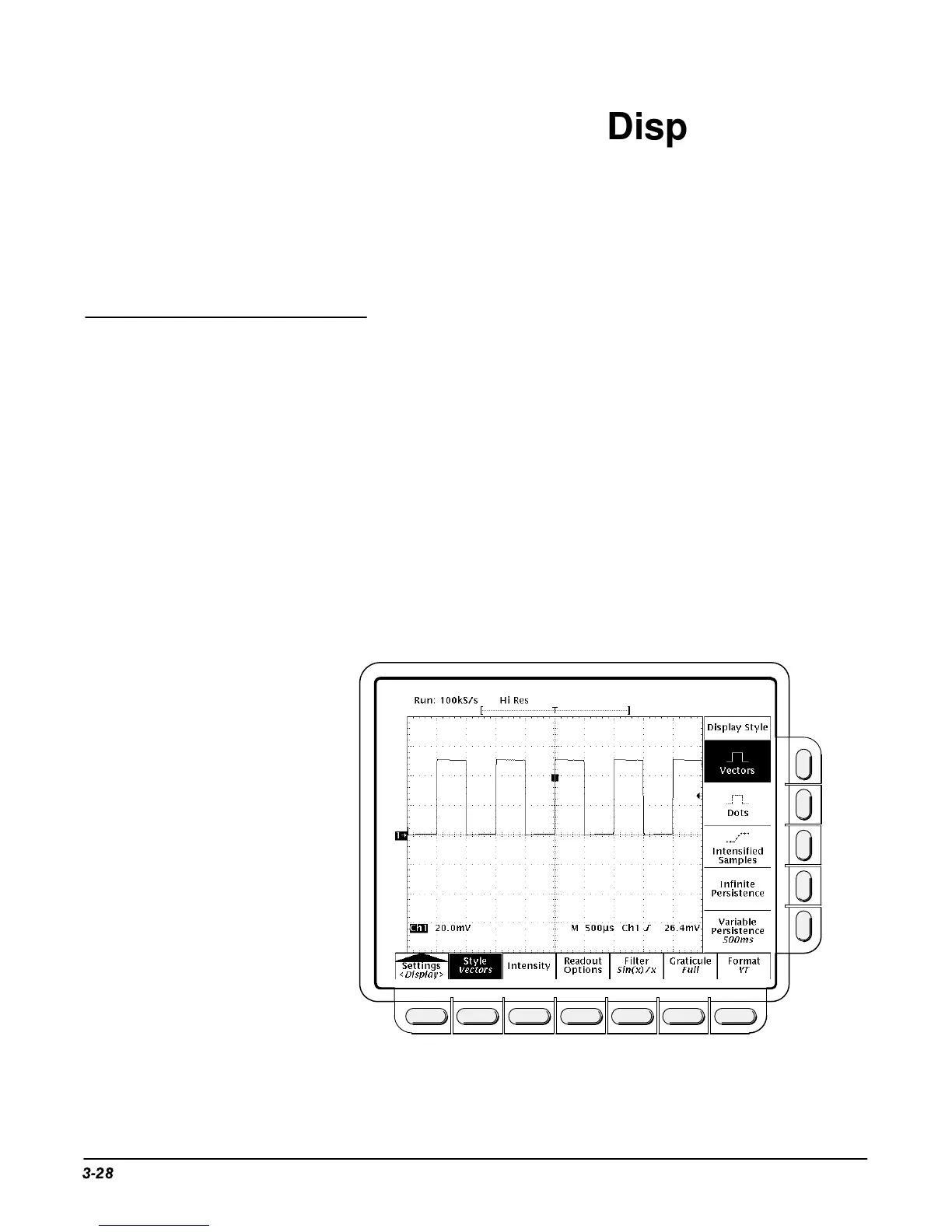

Figure 3-16: Display Menu — Style
Operation
To Next Page
