Tektronix TDS 410A User Manual

At a Glance
Operating Basics
2Ć6
The value entered with
the general purpose
knob
Channel level
and waveform
source
The acquisition
status, page 3-3
The main menu with
choices of major
actions
The side menu
with choices of
specific actions
Vertical scale,
page 3-147
Horizontal scale
and time base
type, page 3-68
Trigger
parameters,
page 3-144
Cursor
measurements,
page 3-17
Trigger position (T),
page 3-142

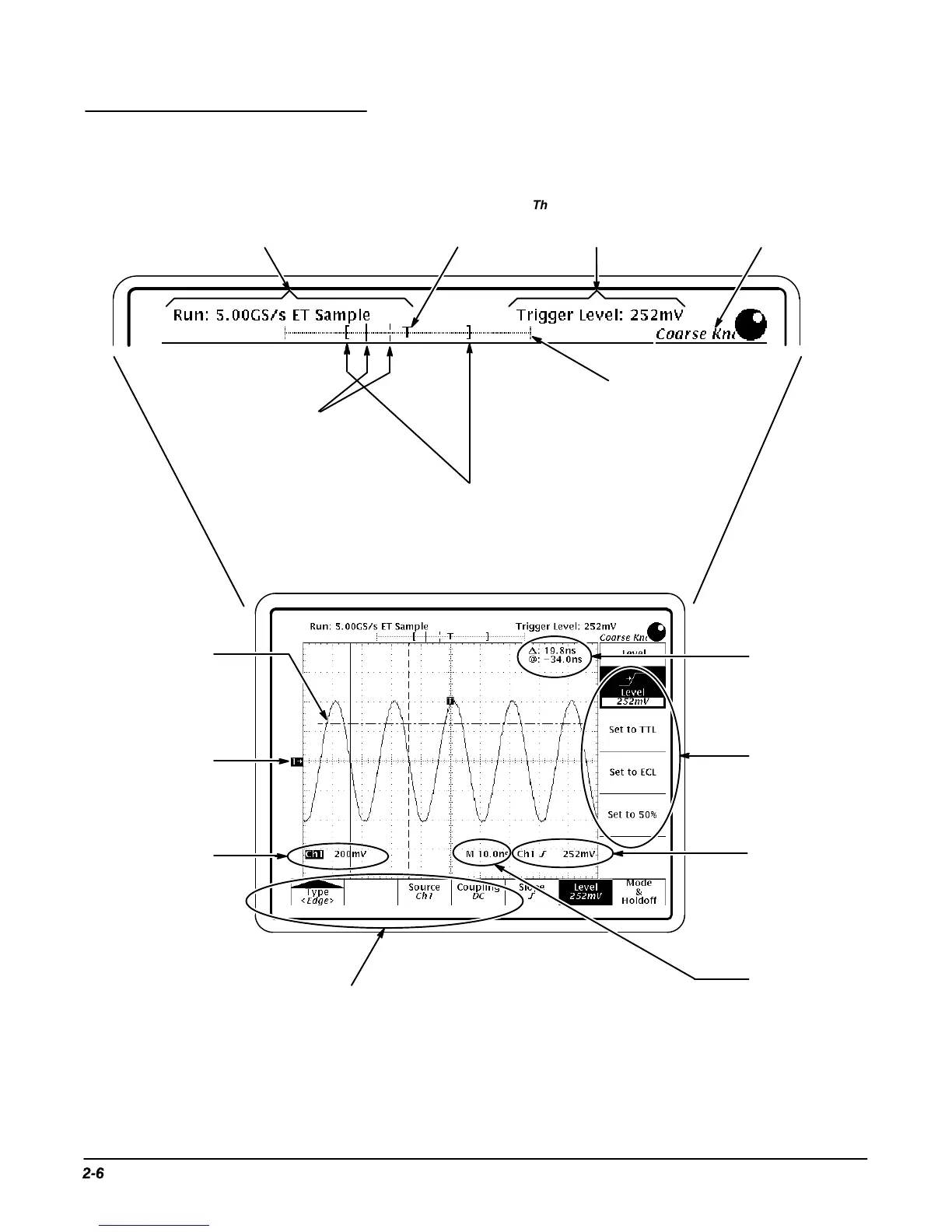

Shows what part of the waveform
record is displayed, page 3-68
Indicates position of
vertical bar cursors in
the waveform record,
page 3-147
The waveform
record icon
Trigger level on
waveform (may be
an arrow at right
side of screen
instead of a bar)
When present, the general
purpose knob makes coarse
adjustments; when absent,
fine adjustments
Display Map
