TDS 500C, TDS 600B, & TDS 700C User Manual
3–113
Measuring Waveforms
To make the best use of the TDS Oscilloscope when taking measurements, you
need to know how to use the five types, or classes, of measurements it can take.
This section describes how to take the following classes of measurements (Fig-
ure 3–54 shows four measurement classes):
Automated for automatically taking and displaying waveform measurements
Cursor for measuring the difference (either in time or voltage) between two
locations in a waveform record
Graticule for making quick estimates by counting graticule divisions on
screens
Histogram for displaying and automatically measuring how your vertical and
horizontal units vary in the histogram box
Masks for mask counting, selecting a mask, or editing a mask
This section also tells you how to use Probe Cal, Channel/Probe Deskew, and
Signal Path Compensation to optimize the accuracy of your measurements.
Ch 1 Period
10 ns
Automated
Measurements
Graticule
Ch 1
Frequency
100 MHz
Cursors
D: 64.0 mV
@: 32.0 mV
Cursor
Readouts
Histogram
box
Histogram

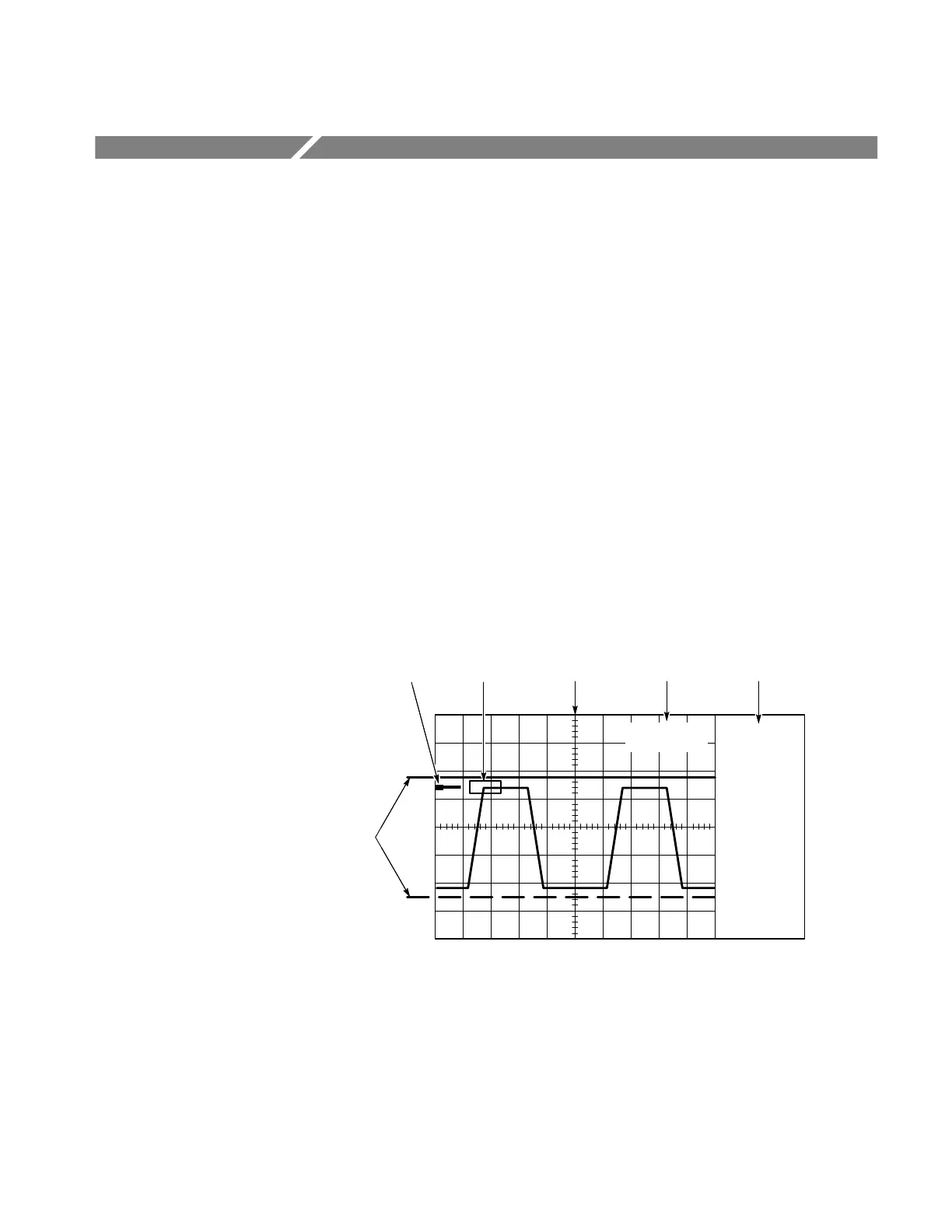

Figure 3–54: Histogram, Graticule, Cursor and Automated Measurements
