Tutorial
2–20
TDS 500C, TDS 600B, & TDS 700C User Manual
Ch2 Reference Indicator
Side Menu Title

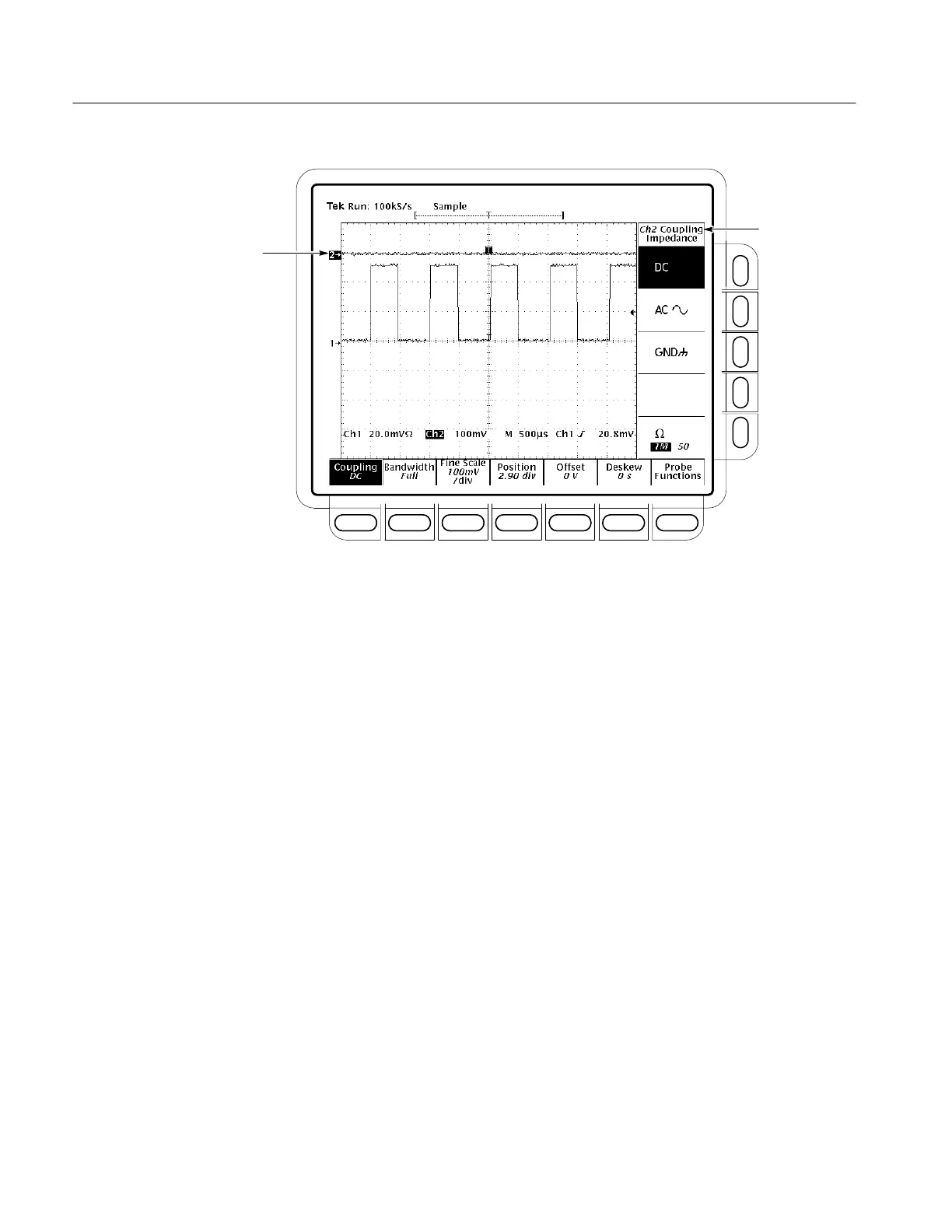

Figure 2–12: The Vertical Main Menu and Coupling Side Menu
Pressing a channel (CH) button sets the vertical controls to that channel. It also
adds the channel to the display if that waveform is not already displayed. To
explore assigning controls to different channels, do the following steps:
1. Press CH 1.
Observe that now the side menu title shows Ch1. (See Figure 2–13), and that
the light above CH 1 is lighted. The highlighted menu item in the side menu
has changed from the 50 W channel 2 setting to the 1 MW impedance setting
of channel 1.
2. Press CH 2 ➞ (side) to toggle the selection to 1M. That returns the
coupling impedance of channel 2 to its initial state.
Assign Controls to
Another Channel
To Next Page
