Tektronix TDS 500C User Manual

Tutorial
2–16
TDS 500C, TDS 600B, & TDS 700C User Manual
AUTOSET Button

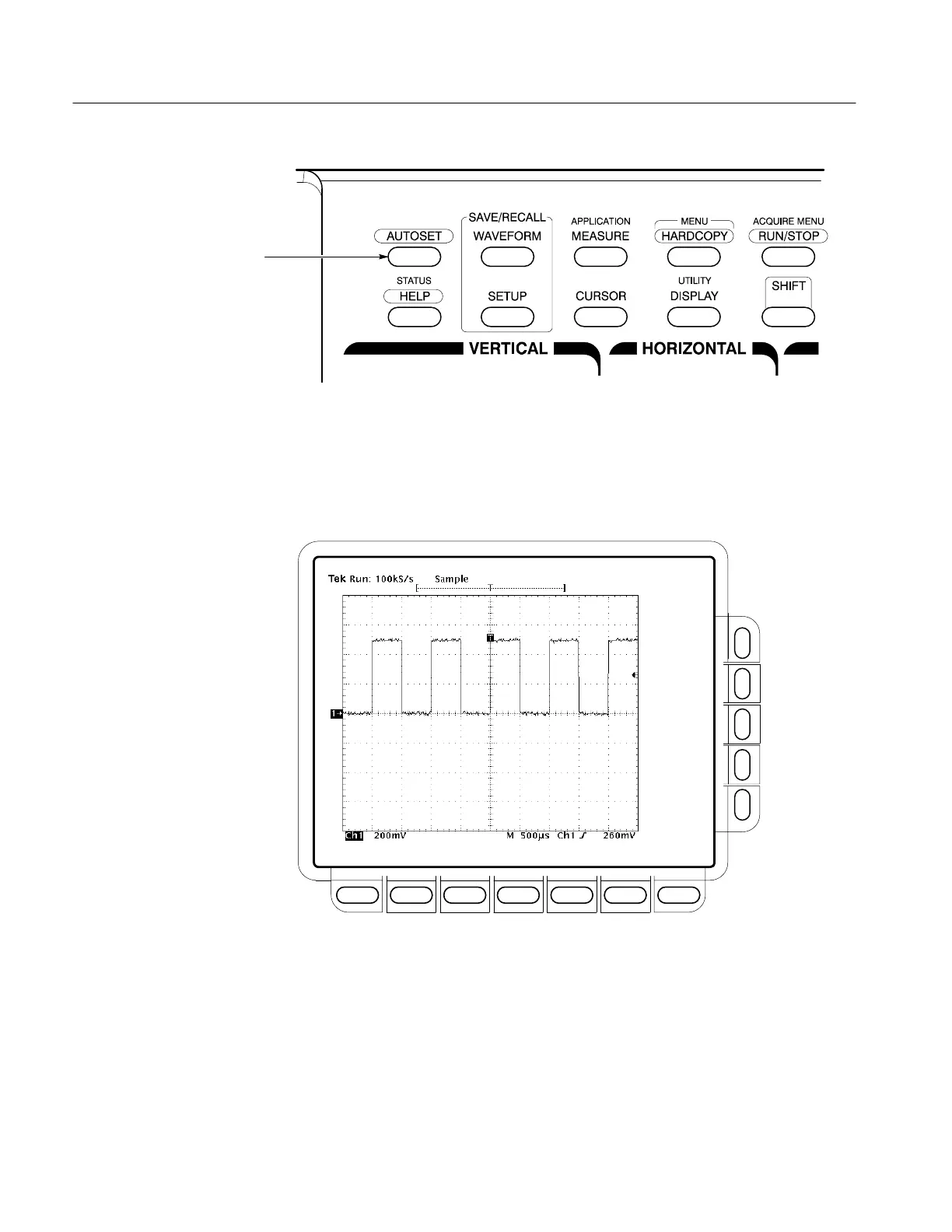

Figure 2–8: AUTOSET Button Location
Figure 2–9 shows the display after pressing AUTOSET. If necessary, you can
adjust the waveform now by using the knobs discussed earlier in this example.
Figure 2–9: The Display After Pressing Autoset
