Acquiring and Displaying Waveforms
3–12
TDS 500C, TDS 600B, & TDS 700C User Manual
Channel Readout
Channel Reference
Indicator

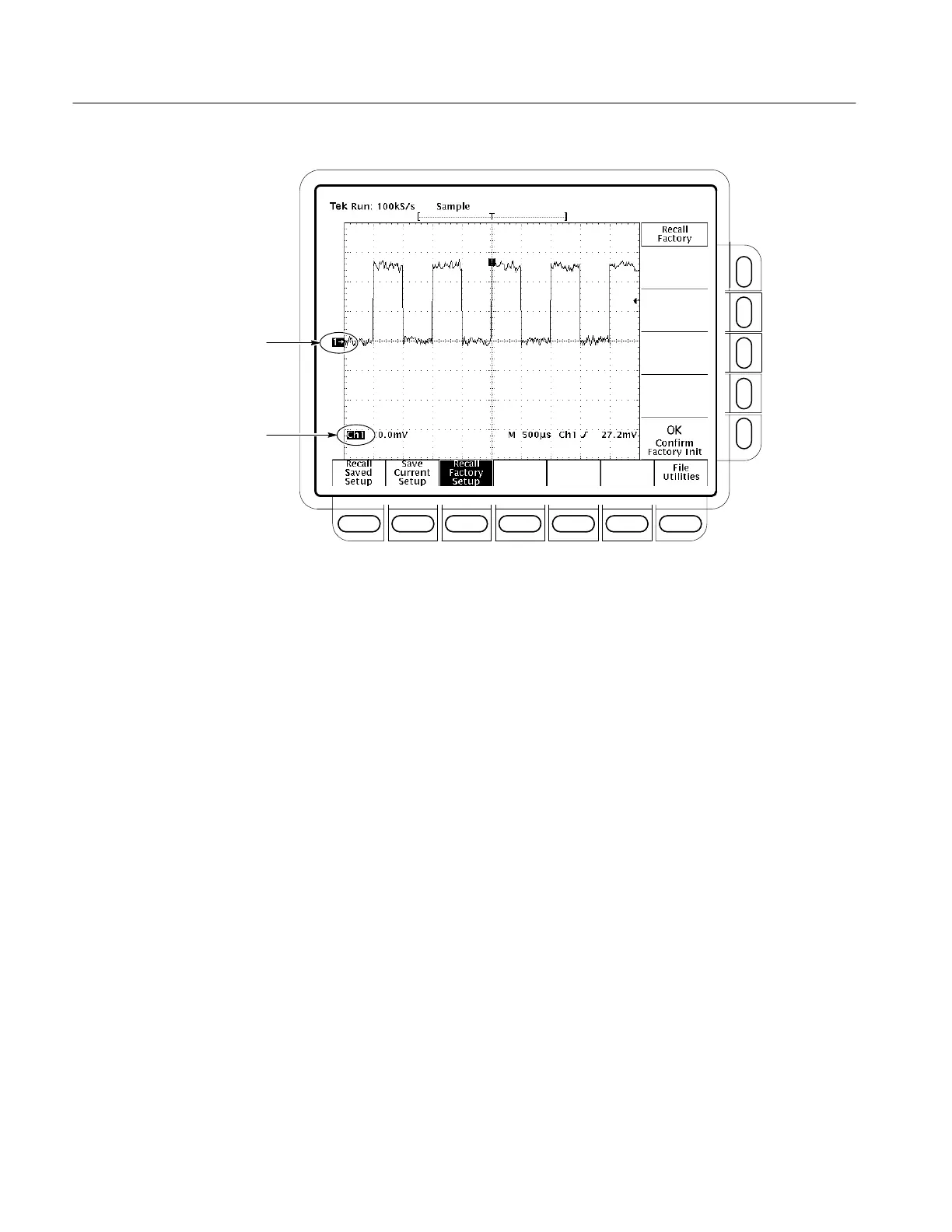

Figure 3–3: The Channel Readout
To select a channel, use the channel selection buttons on the right of the display.
These buttons labeled CH 1, CH 2, CH 3, CH 4, and MORE select a channel
and display it if its off. (The MORE button allows you to select internally stored
Math and Ref waveforms for display and manipulation.) The selected channel is
indicated by the lighting the LED above the button of the selected channel.
To Select and
Remove Waveforms
