Tenda AC5 User Manual

104

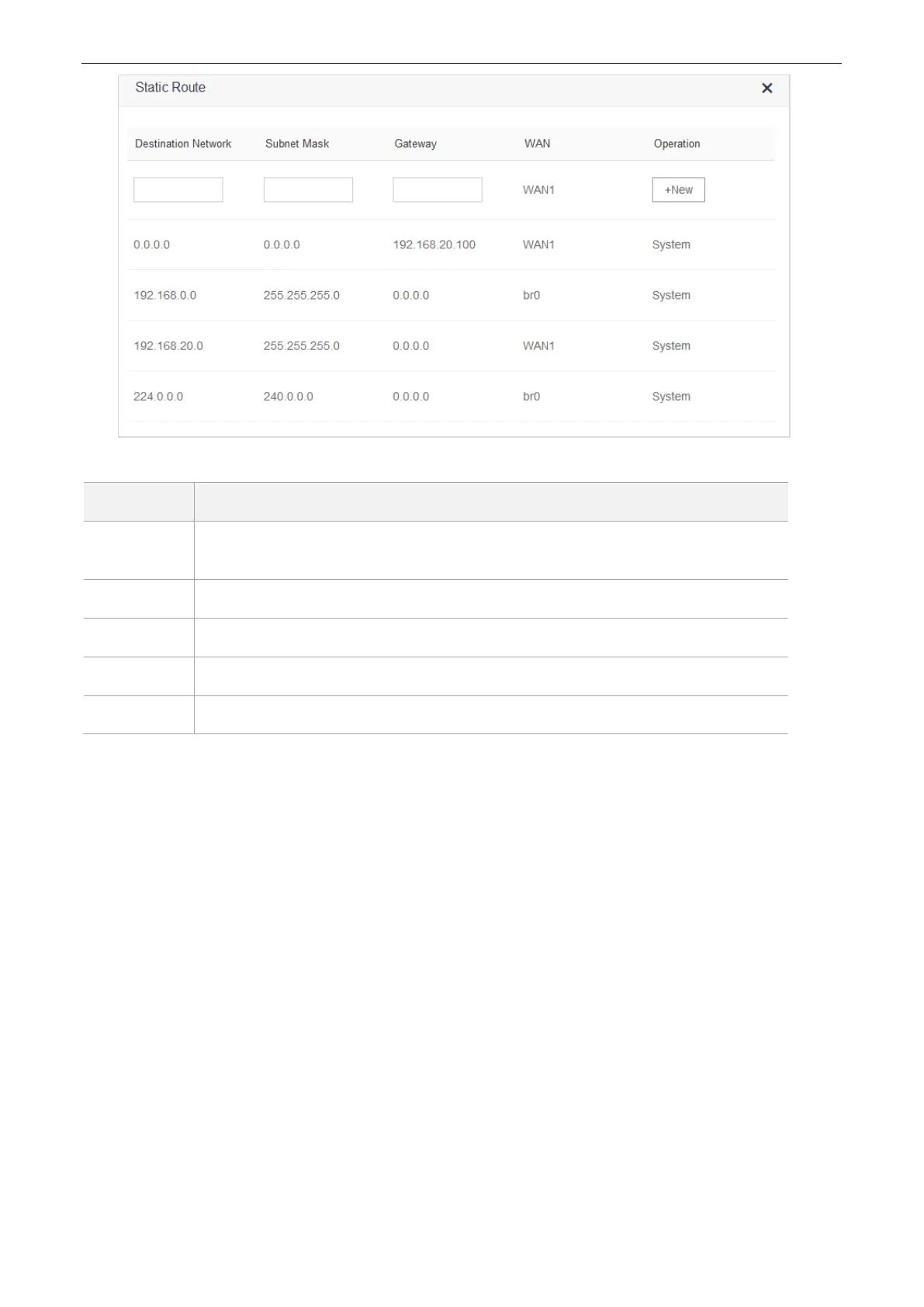

Parameter descriptions
Parameter
Description
Destination
Network
It specifies the destination IP address of a packet.
Subnet Mask
It specifies the subnet mask of the destination IP address of a packet.
Gateway
It specifies the IP address of the next hop of packet transmitted from the router.
WAN
It specifies the WAN port of the router for transmitting packets.
Operation
It allows you to add/delete a static route rule.
10.8.2 Example
Networking Requirement
Michael used wired router and switch for network in the past. Now he purchases an AC5 for wireless coverage
and builds an office intranet on that network, requiring clients connected to AC5 able to access both the internet
and office intranet.
Solution
The following figure shows a topology for reference:

Tenda AC5 Specifications

General

Antennas quantity	4
Antenna gain level (max)	5 dBi
Certification	CE/FCC/RoHS
Built-in processor	Yes
Processor frequency	1000 MHz
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	1167 Mbit/s
WLAN data transfer rate (first band)	300 Mbit/s
WLAN data transfer rate (second band)	867 Mbit/s
VPN support	L2TP/PPTP/IPSec
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
SIM card slot	No
Ethernet LAN (RJ-45) ports	3
Output current	1 A
Output voltage	9 V
AC input voltage	100 - 240 V
Power source type	DC
AC input frequency	50 - 60 Hz
Product type	Tabletop router
Product color	Black
LED indicators	LAN, System, WAN, WLAN
Security algorithms	WPA-PSK, WPA2-PSK, WPS
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Cables included	LAN (RJ-45)
Harmonized System (HS) code	85176990
