Tenda D301-V2 User Manual

Wireless Modem Router
12
Statistics
Here you can view the packets received and transmitted on LAN/WAN ports.

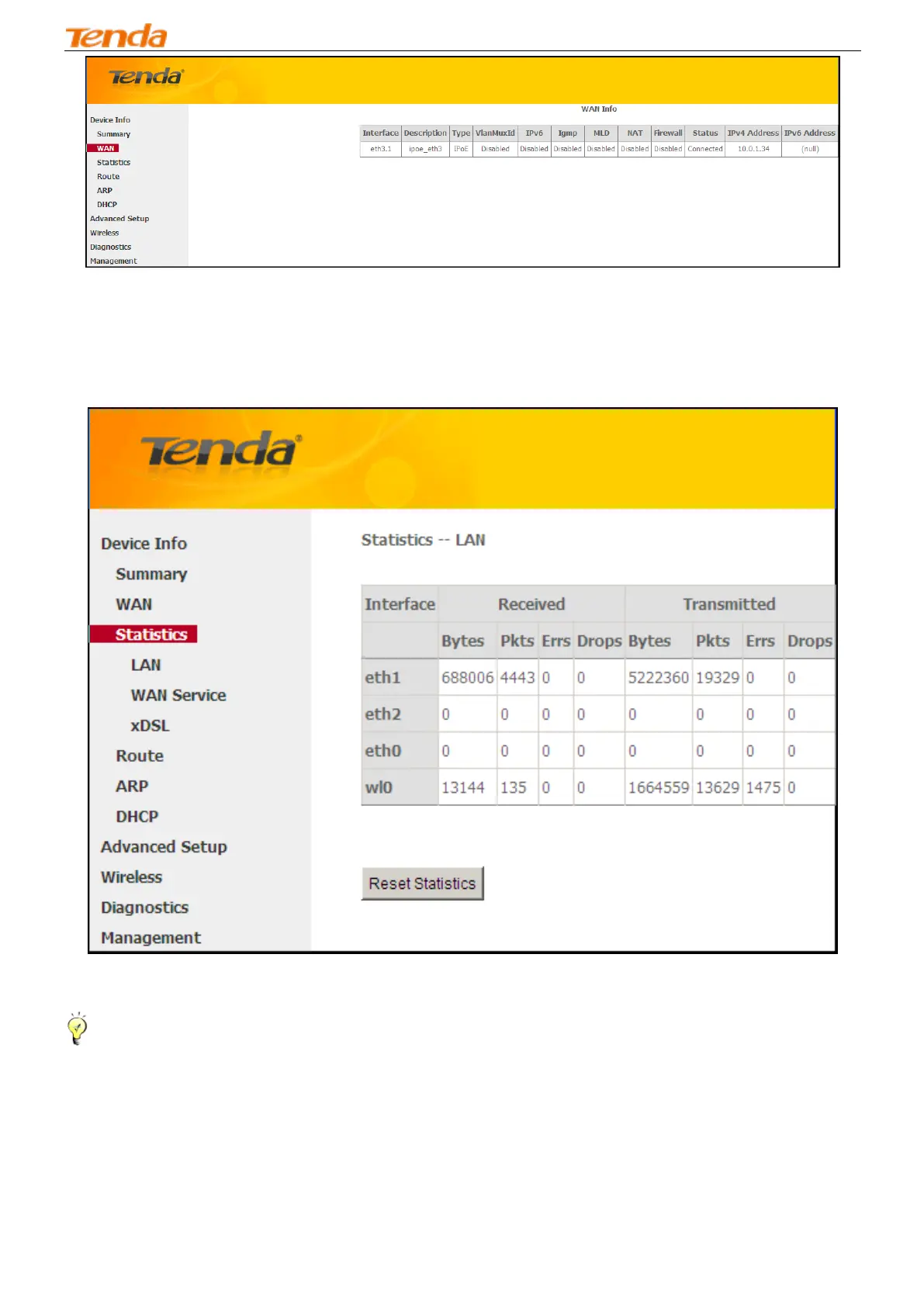

Statistics--LAN: Displays the packets received and transmitted on the LAN ports as seen in the screenshot below.
_________________________________________________________________________________________________
Tip:
eth0, eth1, eth3 and eth3 respectively represent the LAN port1, LAN port2, LAN port3 and LAN port4 of the device.
_________________________________________________________________________________________________
Statistics--WAN: Displays the packets received and transmitted on the WAN ports as seen in the screenshot below.

Tenda D301-V2 Specifications

General

Wireless Standards	IEEE 802.11b/g/n
Frequency	2.4 GHz
Wireless Speed	300Mbps
WAN Ports	1 x 10/100 Mbps
LAN Ports	3 x 10/100Mbps
Antenna	2 x 5dBi external antennas
WAN Connection Type	PPPoE, Dynamic IP, Static IP
Security	WPA/WPA2, WEP
Button	Reset/WPS Button
DHCP Server	Supported
Operating Temperature	0°C ~ 40°C
Storage Temperature	-40°C ~ 70°C
Operating Humidity	10% ~ 90% non-condensing
Storage Humidity	5% ~ 90% non-condensing
Weight	210g
