CSR-20 & CSR-40, September 1999
Electrical, Refrigeration and µP-D Menu Flow Diagrams Schematic Circuit Tracings 9-7
1
Typical model shown with three evaporator fans.

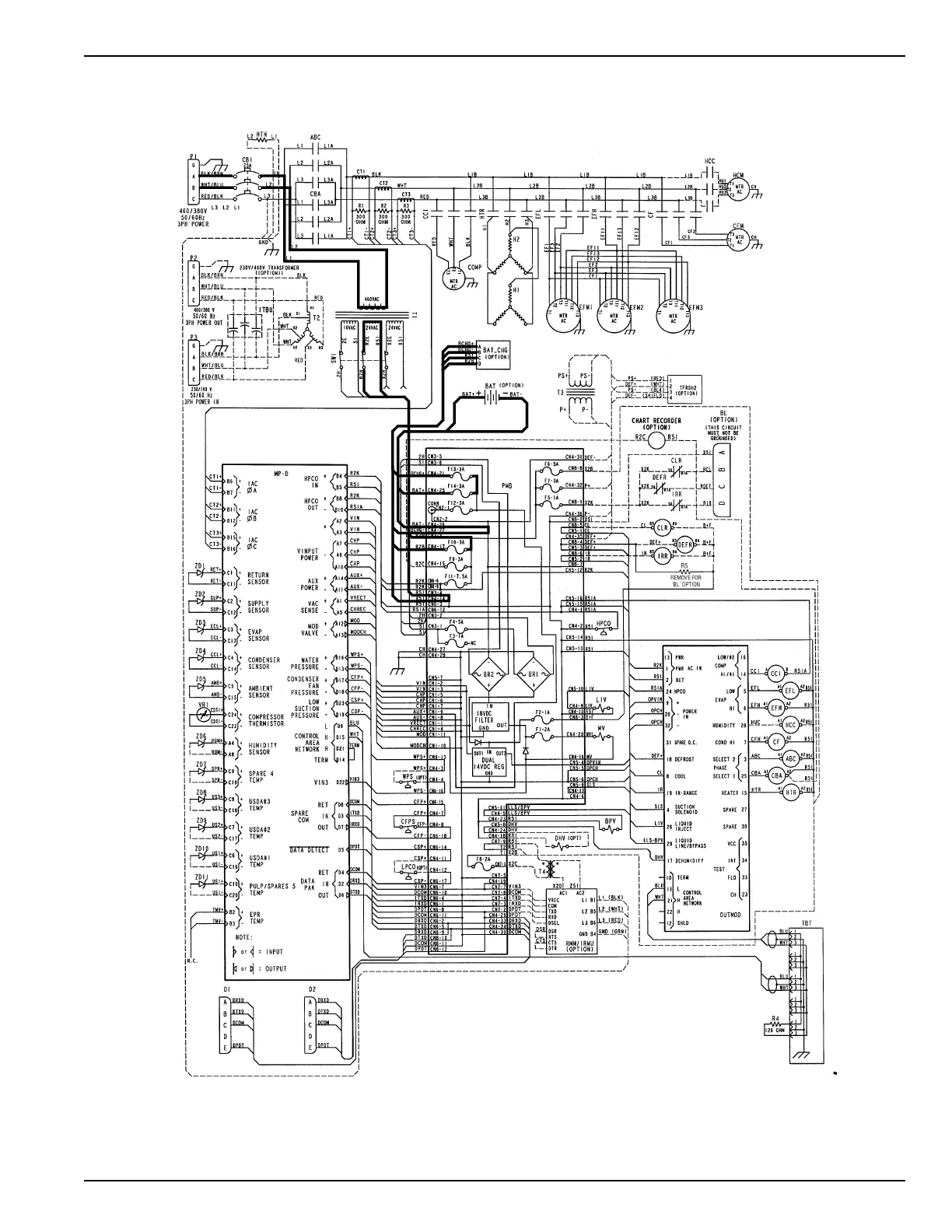

Setpoint Enable Battery and Battery Charger Circuit
