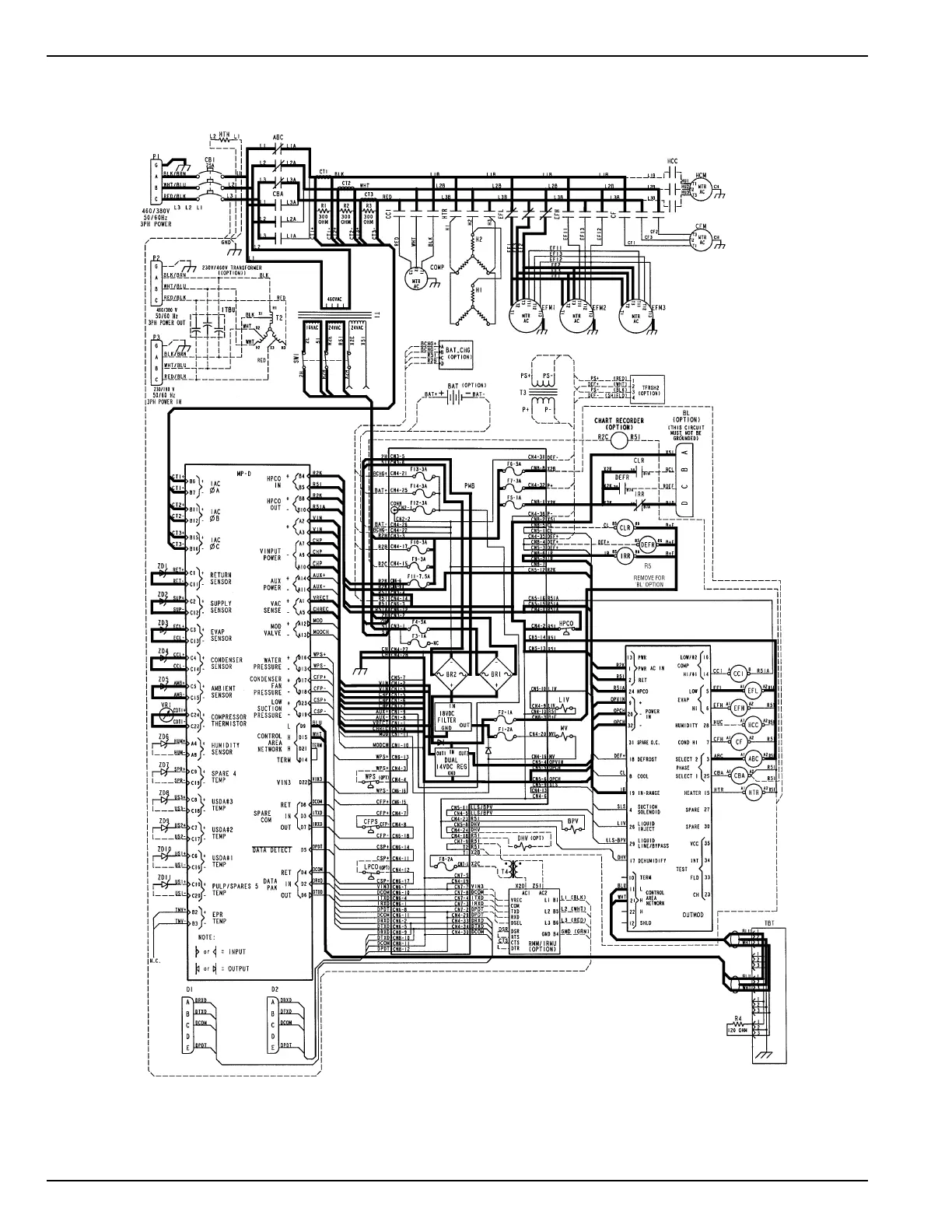

9-26 Schematic Circuit Tracings Electrical, Refrigeration and µP-D Menu Flow Diagrams

CSR-20 & CSR-40, September 1999

Typical model shown with three evaporator fans.

Controller stops the compressor. If the condenser fan was ON, it will operate for 30 seconds and then stop.

Null Mode

— Frozen Load (Setpoint at -10.0 C [14.0 F] or Below); Condenser Fan OFF

; Economy Mode OFF
