Thermo King CSR-20 Series User Manual

CSR-20 & CSR-40, September 1999

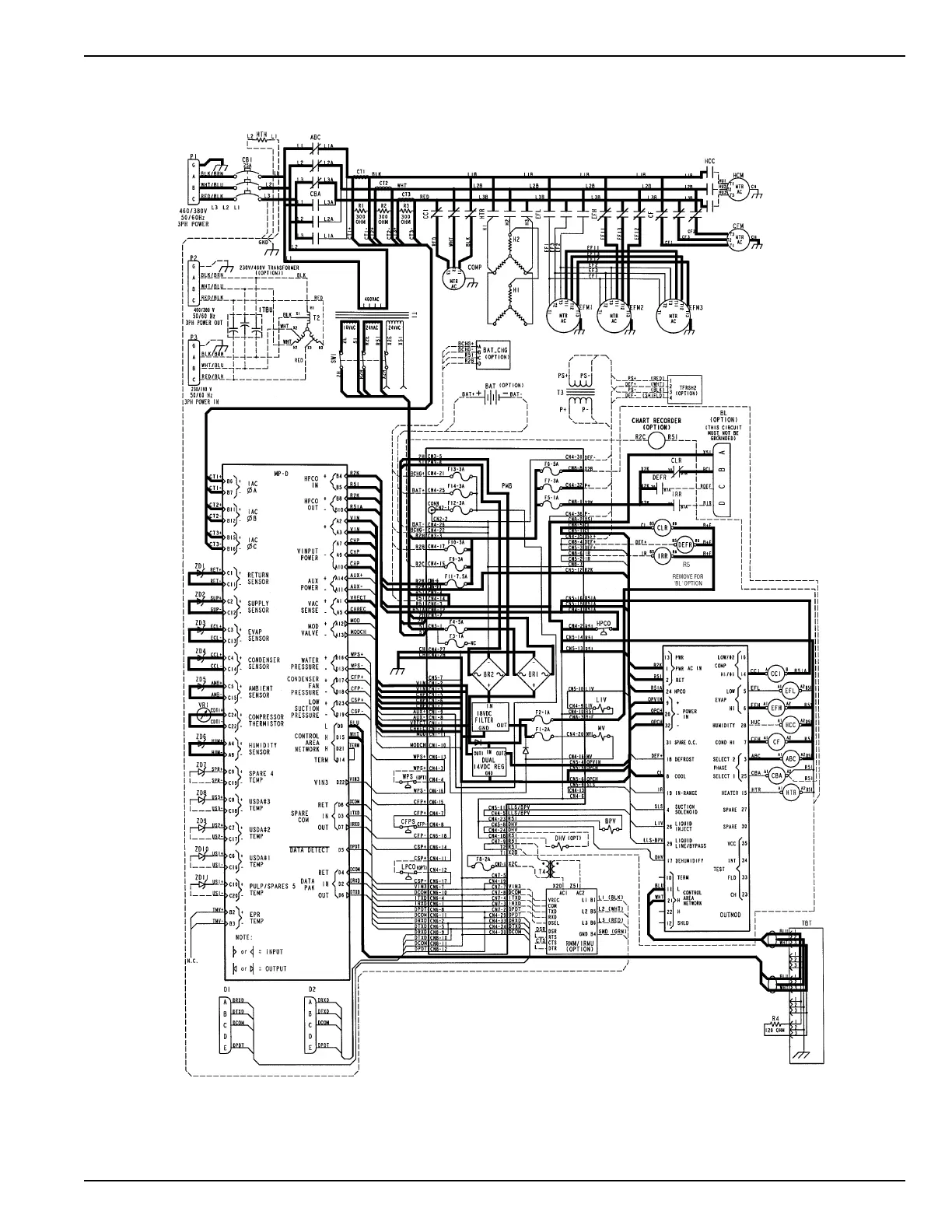

Electrical, Refrigeration and µP-D Menu Flow Diagrams Schematic Circuit Tracings 9-15
1
Typical model shown with three evaporator fans.
2
A complex algorithm will typically turn the condenser fan ON when the compressor discharge temperature is above
50 C (122 F) and increasing, or when the condenser temperature is above 35 C (95 F).
Cool Mode
1
— Chill Load (Setpoint at -9.9 C [14.1 F] or Above); Condenser Fan ON
2
; Economy Mode OFF;
Humidify Mode (Option) ON with container humidity above humidity setpoint
