Thermo King CSR-20 Series User Manual

CSR-20 & CSR-40, September 1999

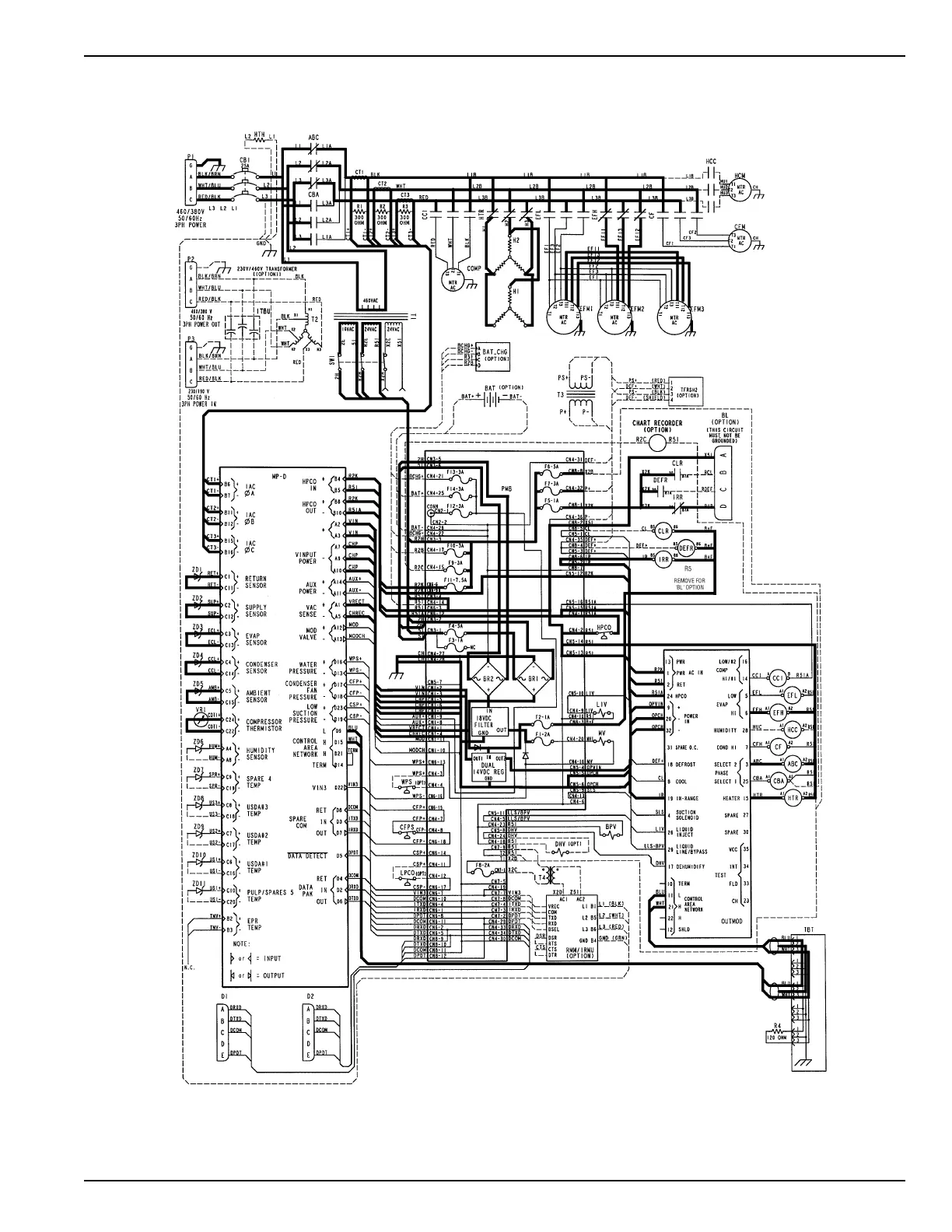

Electrical, Refrigeration and µP-D Menu Flow Diagrams Schematic Circuit Tracings 9-23
Heat Mode
1, 2
— Chill Load (Setpoint at -9.9 C [14.1 F] or Above); Economy Mode OFF; Temperature In-range
1
Typical model shown with three evaporator fans.
2
Electric heaters pulse ON and OFF during the Heat mode. The amount of ON time increases from 0% at a
Calculated Temperature Differential of 0.6 C (1.0 F) below setpoint to 100% at a Calculated Temperature Differential
of 3.1 C (5.5 F) below setpoint.

Thermo King CSR-20 Series Specifications

General

Brand	Thermo King
Model	CSR-20 Series
Category	Heat Pump
Language	English
