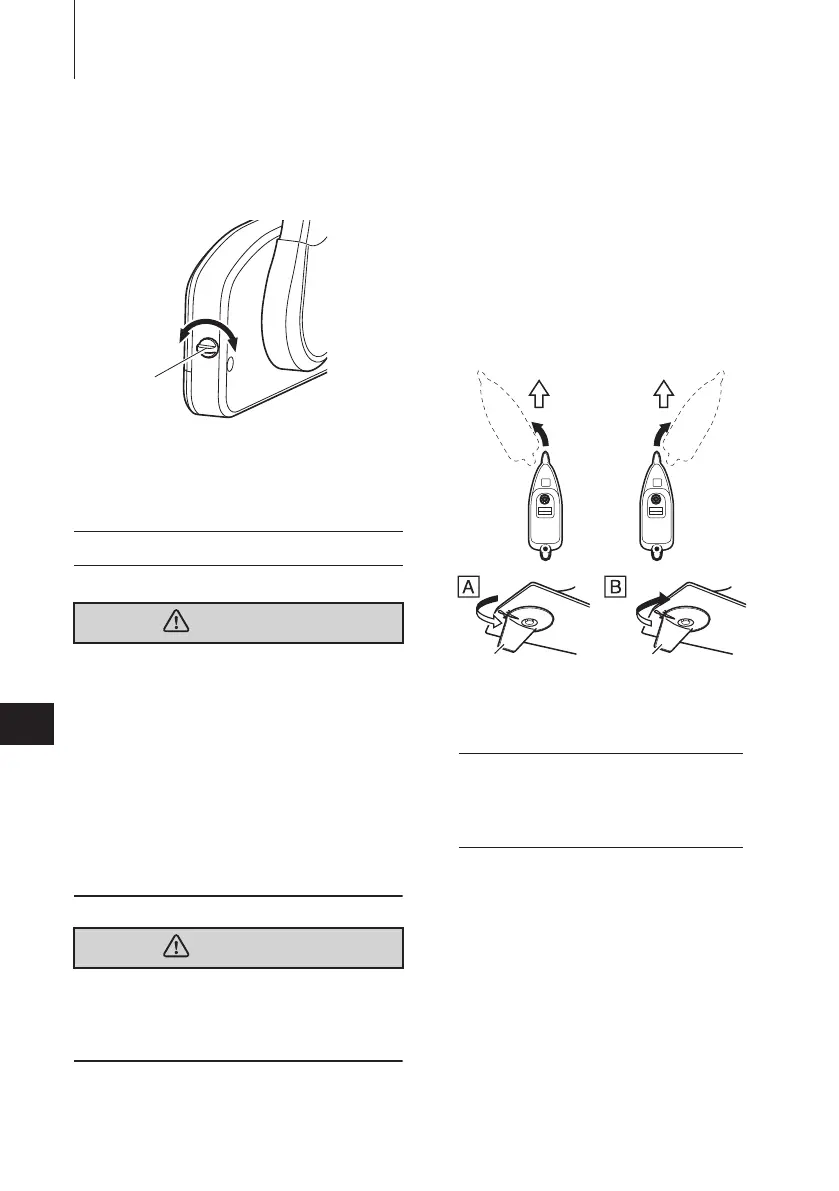

ADJUSTMENT62
9
wise to decrease it.
Side mount type
1. Throttle friction adjustment screw
2. Decrease
3. Increase
ENOM00076-0
ENOW00076-1
z Be sure that outboard motor is secured to
transom or service stand, or accidental
drop or fall of outboard motor could lead
to severe personal injury.
z Be sure to lock outboard motor when it is
tilted up, otherwise accidental fall of out-
board motor could lead to severe per-
sonal injury.
z Do not go under outboard motor tilted up
and locked, or accidental fall of outboard
motor could lead to severe personal
injury.
ENOW00075-1
Inappropriate adjustment of trim tab could
cause steering difficulty. After installing or
readjusting trim tab, check if steering load is
even.
If straight-line cruising can not be
achieved, adjust the trim tab located
under the anti-ventilation plate.
z If the boat veers toward the left direct
the trim tab towards A (left from rear
of boat).
z If the boat veers toward the right
direct the trim tab towards B (right
from rear of boat).
1. Trim tab
ENON00022-A
Notes
z After adjustment securely tighten the
trim tab fixing bolt.
z Check for looseness of the bolt and the
trim tab at regular intervals.
4. Trim tab adjustment
WARNING
WARNING
1
2
3
ENOF00078-2
1
1
ENOF00912-A
