TOHATSU MFS 25d User Manual

ENGINE OPERATION 55
7

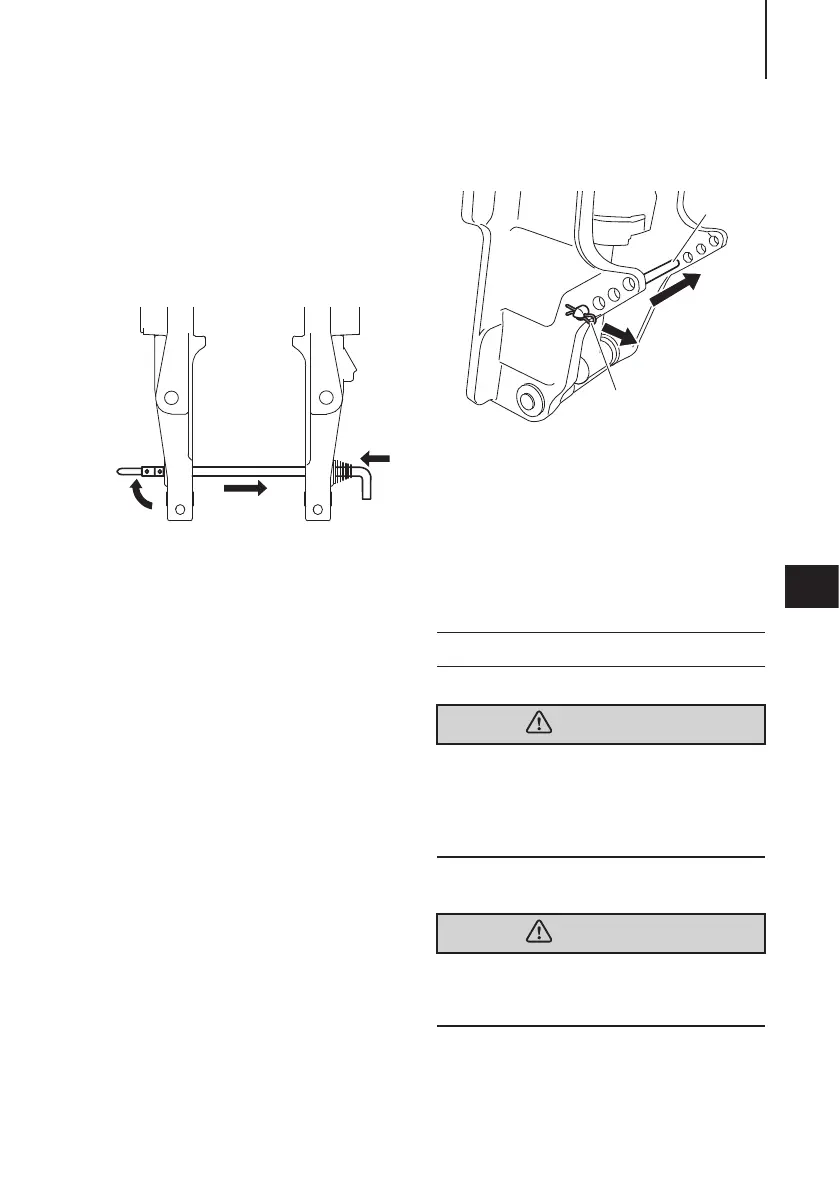

Trim angle adjustment (Manual tilt type)
The transom angle adjustment
1. Stop the engine.
2. Shift into neutral position.
3. Tilt up the outboard motor.
4. Remove the thrust rod as shown pic-
ture.
1. Push in
2. Rise the stopper
3. Pull out
5. Reinstall the thrust rod in the desired
position securely.
6. Gentry tilt down the outboard motor.
Trim angle adjustment (Power tilt type)
The transom angle adjustment
1. Stop the engine.
2. Shift into neutral position.
3. Tilt up the outboard motor.
4. Lock the tilt stopper.
5. Remove the Snap pin and Thrust rod
as shown in the picture.
1. Snap pin
2. Thrust rod
6. Reinstall the thrust rod in the desired
position securely.
7. Put the Snap pin back and unlock the
tilt stopper.
8. Gently tilt down the outboard motor.
ENOM00060-A
ENOW00055-1
Do not tilt the outboard motor up or down
when swimmer(s) and/or passenger(s) are
near to prevent them from being caught
between outboard motor body and clamp
bracket.
ENOW00048-1
When tilting up or down, be careful not to
place your hand between the swivel bracket
and the stern bracket.
3
2
1
ENOF01238-1
8. Tilt up and down
WARNING
WARNING
1
2
ENOF01147-0
