TOHATSU MFS 25d User Manual

ADJUSTMENT 65
9
ENOM01903-0
ENOW00985-0
z Do not install or remove spacers on the
bracket with engine running.
z Do not install more than 6 spacers [ 1 ].

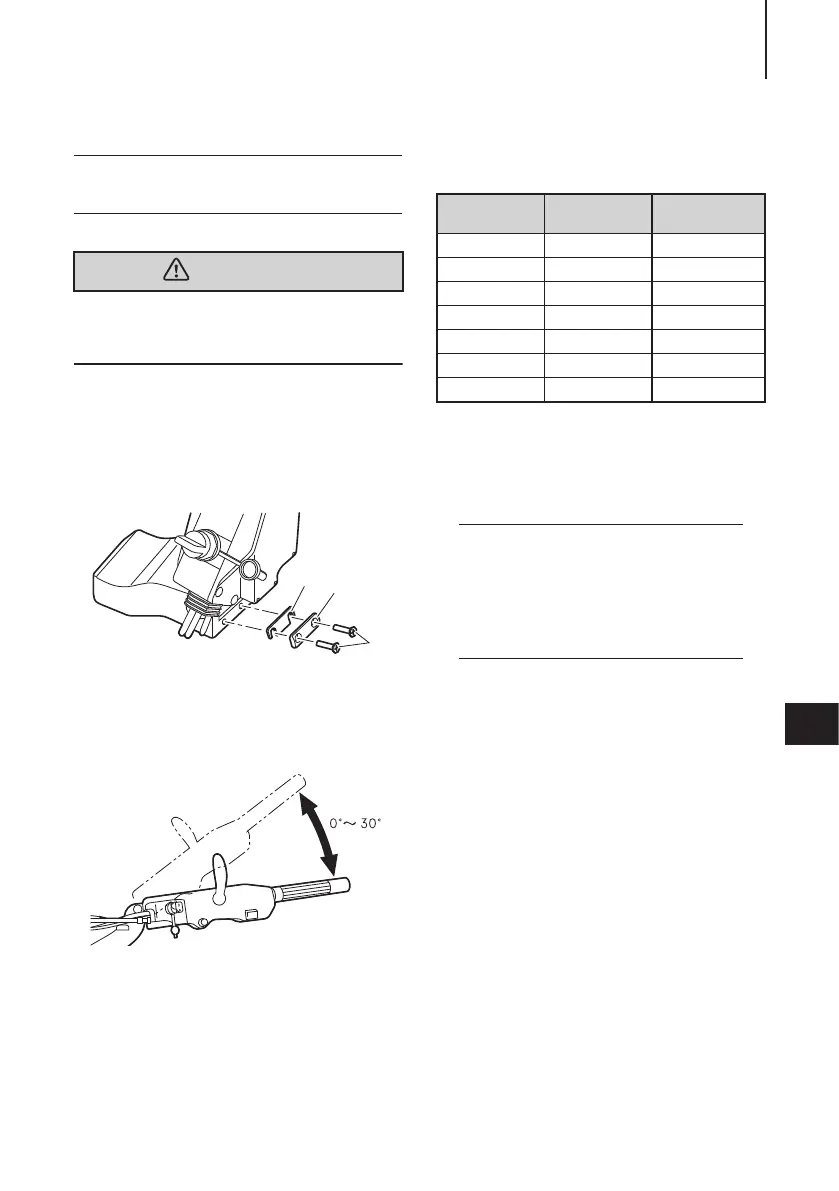

The angle of the multi-function tiller han-
dle can be adjusted between 0 and 30
degrees by using the spacer kit that
comes with the multi-function tiller han-
dle.
1. Spacer [1]
2. Spacer [2]
3. Screw
 Angle of Multi-Function Tiller Handle
according to the number of spacers.
After adjusting the angle, fully turn the til-
ler handle to both side and check that
there is no problem in operation.
ENON00022-A
Notes
z Tighten the screws securely.
z Periodically make sure that the bolts
are not loose.
z The multi-function tiller handle kit
includes one spacer [1], one spacer [2]
and screws.
5. Multi-function tiller handle
angle adjustment
WARNING
1
2
3
ENOF02550-0
ENOF02551-0
Spacer [1]
(Qty)
Spacer [2]
(Qty)
Angle (approx)
000r
019.5r
1114r
2120.5r
3123.5r
4127r
5130r
