BATTERIES CHARGE LEVEL INDICATOR
Activating the push button of the brush (2) the
signal lamp of the battery charge level (1) will
come on. When the signal lamp is in green
colour it means that the battery charge level is
sufficient for the functioning of the machine. If
the signal lamp is in red colour it means that
the battery charge level is insufficient for the
functioning of the machine and it is necessary
to recharge immediately the batteries (see
under "BATTERIES RECHARGING”).

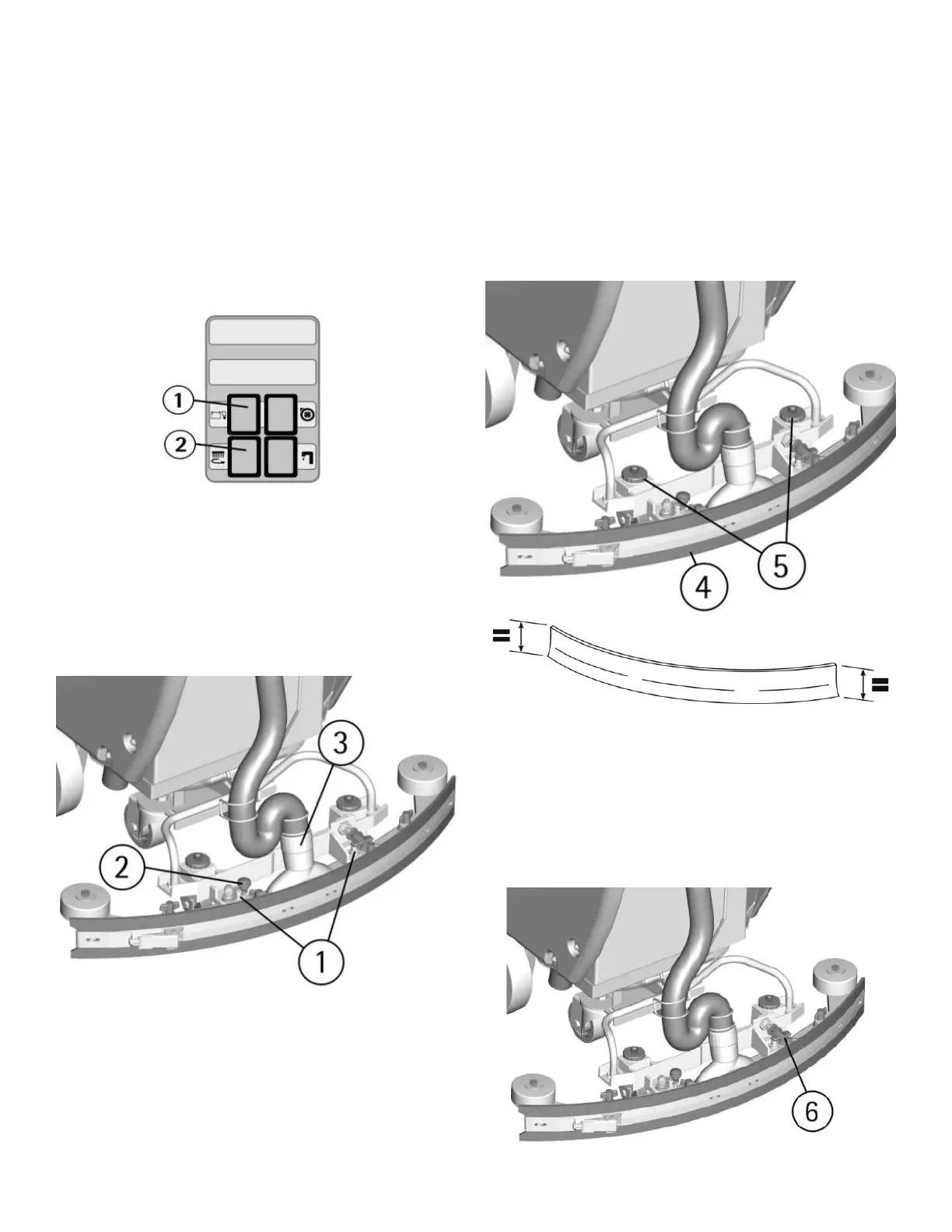

SQUEEGEE ASSEMBLY
With the squeegee support lowered, slide the
two stud bolts (1) placed on the upper part of
the squeegee inside the slots on the support.
Block the squeegee by rotating the lever (2)
clockwise. Insert the squeegee hose (3) into its
coupling, respecting its position as indicated in
the figure.
ADJUSTMENT OF THE SQUEEGEE HEIGHT
The squeegee must be adjusted in height
depending on the rubber wear. In order
to guarantee a perfect drying during the
operation, the lower blade of the rear squeegee
rubber (4) must work slightly bent backwards
(operator side) in uniformed way in all its
length.
Acting counterclockwise it is possible to
decrease the rubber bending. A label placed
near the two registers (5) indicates rotation
sense to increase or reduce the height. Note:
The wheels of the squeegee support must be
adjusted through the registers (5) at the same
height so that the squeegee works parallel to
the floor.
ADJUSTMENT OF THE SQUEEGEE
INCLINATION
In case of need, to increase the rubber bending
in the central part, it is necessary to tilt the
squeegee rotating counterclockwise the
register (6). To increase the rubber bending on
the squeegee extremities, rotate the register
clockwise.
Acting clockwise upon the two registers (5) it is
possible to increase the bending of the rubber.
