Chapter 3
Setup
1

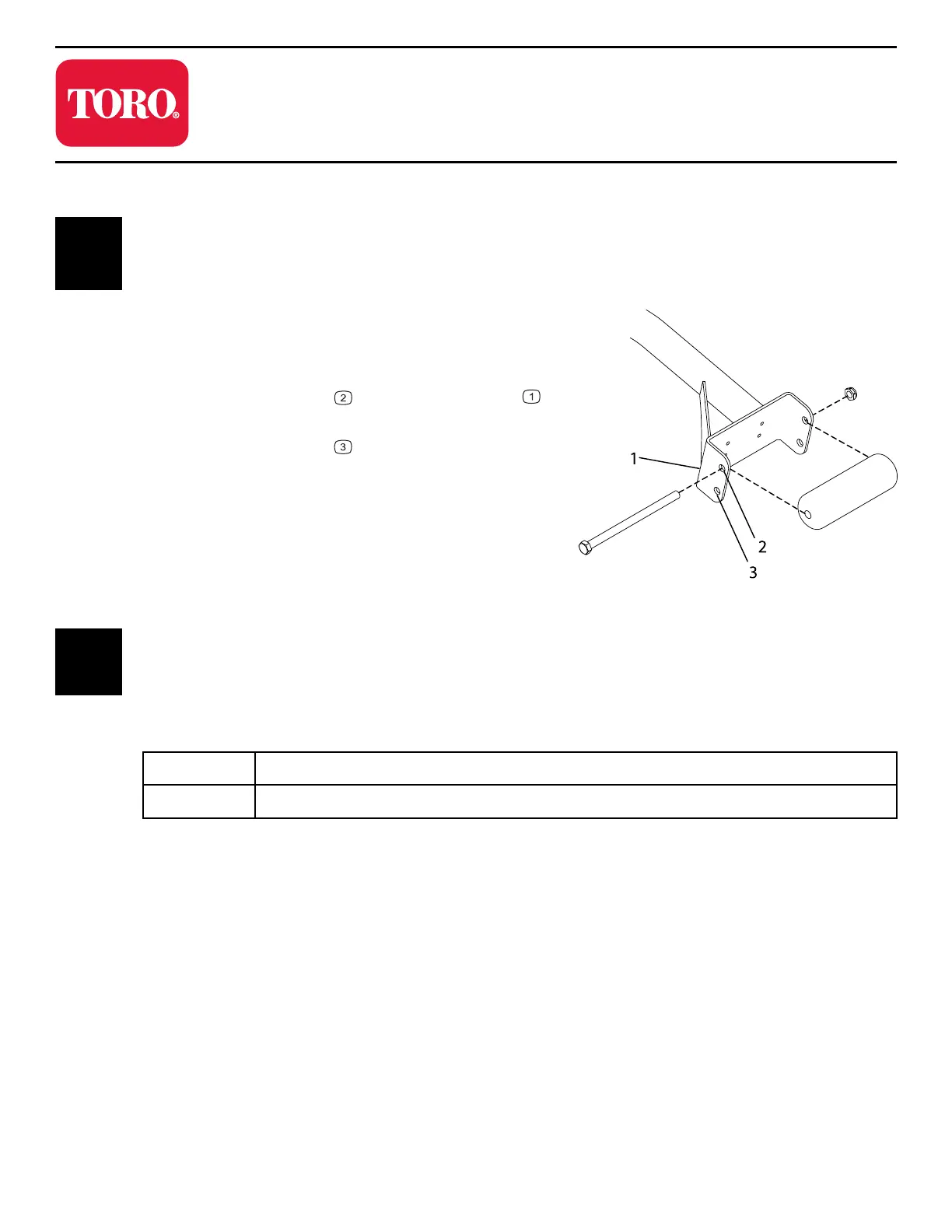

Adjusting the Front Cutting Unit Roller
Position
G419213
Check all cutting unit roller positions and adjust if
needed.
• For 27-inch cutting units, use the upper
mounting holes
of the roller support .
• For 32-inch cutting units, use the lower
mounting holes
of the roller support.
2
Installing the Cutting Units
Parts Required
1 Right front hose guide
1 Left front hose guide
Preparing the Machine
Remove the shipping brackets from the reel motors and discard.
3466-702 A Page 3–1 Setup
