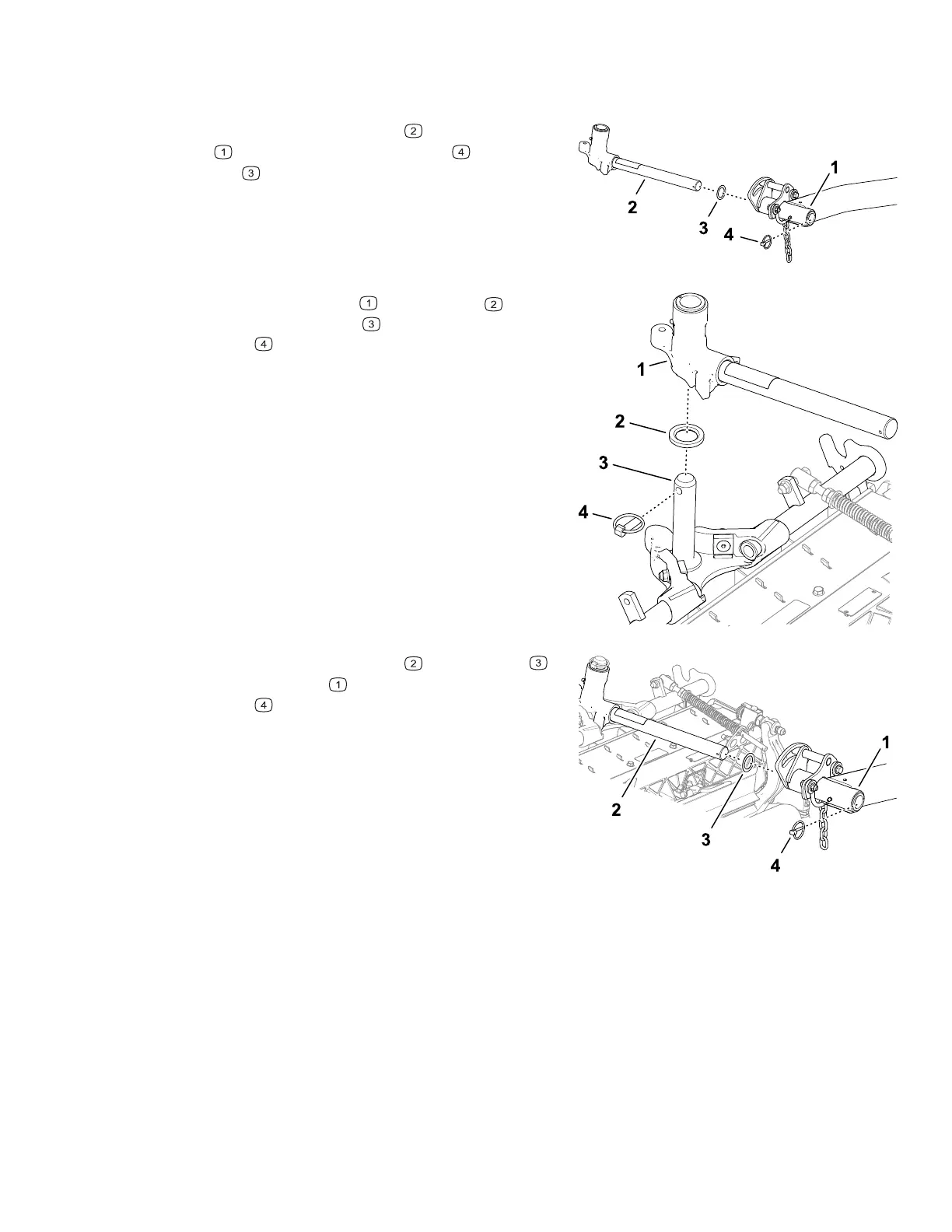

Installing the Rear Cutting Units to the Lift Arms
Cutting Units adjusted for a 1.2 cm (3/4 inch) or Lower Height of Cut
G420582
1. Slide the lift-arm pivot shaft out of the lift
arm
by removing the lynch pin and
washer
.
G420583
2. Slide the lift-arm yoke and washer onto
the carrier frame shaft
and secure it with the
lynch pin
.
3. Slide a cutting unit under the lift arm.
G420584
4. Slide the lift-arm pivot shaft and washer
onto of the lift arm and secure it with the
lynch pin
.
5. Repeat this procedure for the other rear cutting
unit.
Setup: Installing the Cutting Units Page 3–10 3466-702 A
