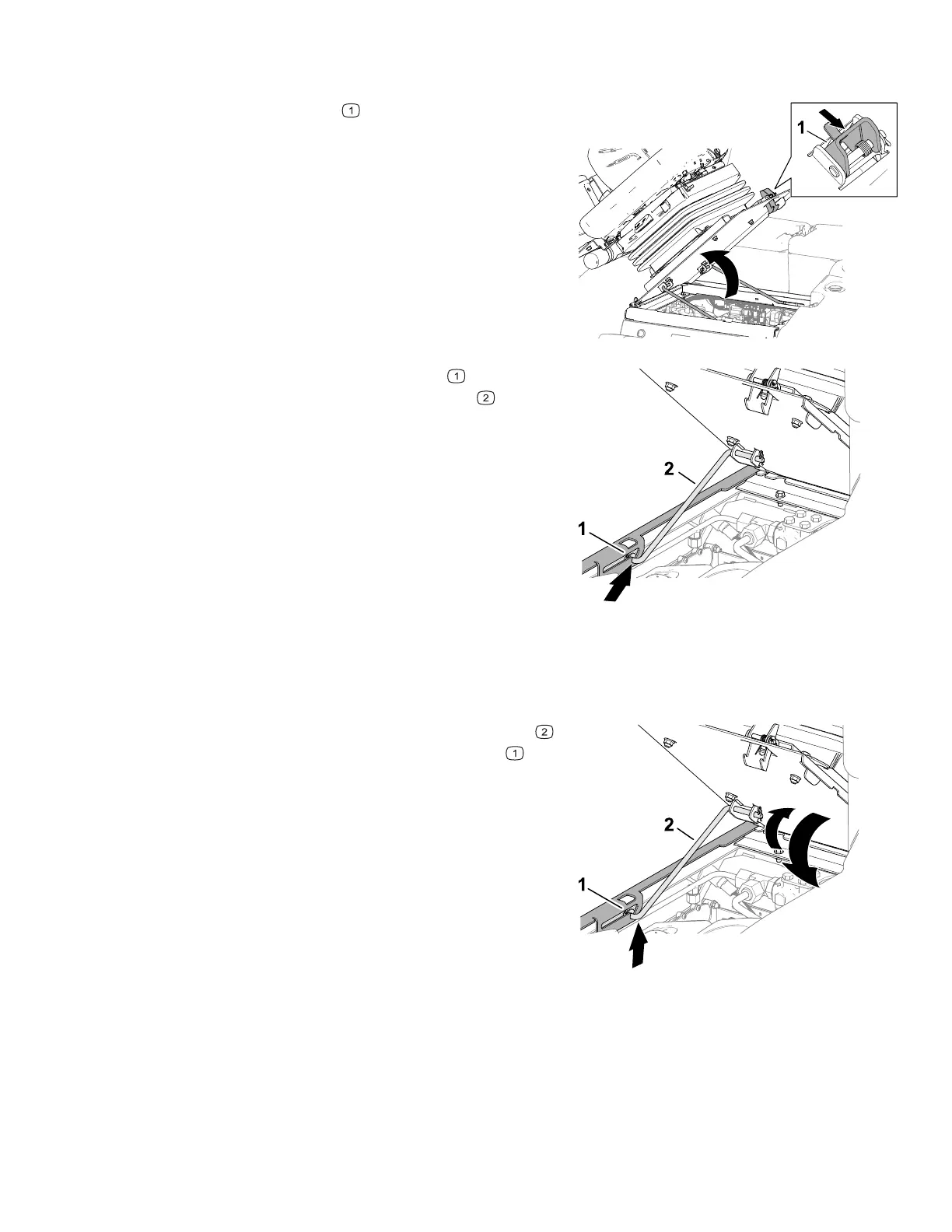

Tilting the Seat
G424263
1. Move the seat latch outward and carefully
rotate the seat up.
G424264
2. Ensure that the forward prop rod seats in
the slot detent of the rod-guide plate
.
Lowering the Seat
G424265
1. Rotate the seat slightly, and lift the prop rod
out of the detent of the seat support slot .
2. Carefully lower the seat until it latches
securely.
Jacking Point Locations
Note: Support the machine with jack stands whenever you work under the machine.
Use the following as machine-lift points:
3466-702A Page 6–9 Maintenance: Pre-Maintenance Procedures
