Installing the Bumper

Note: This procedure is only needed for Model No.

07253TC.

1. Remove the 2 bolts, washers, and nuts secured to the

front of the frame.

2. Align the mounting holes and secure the bumper to the

frame with the fasteners previously removed (Fig. 5).

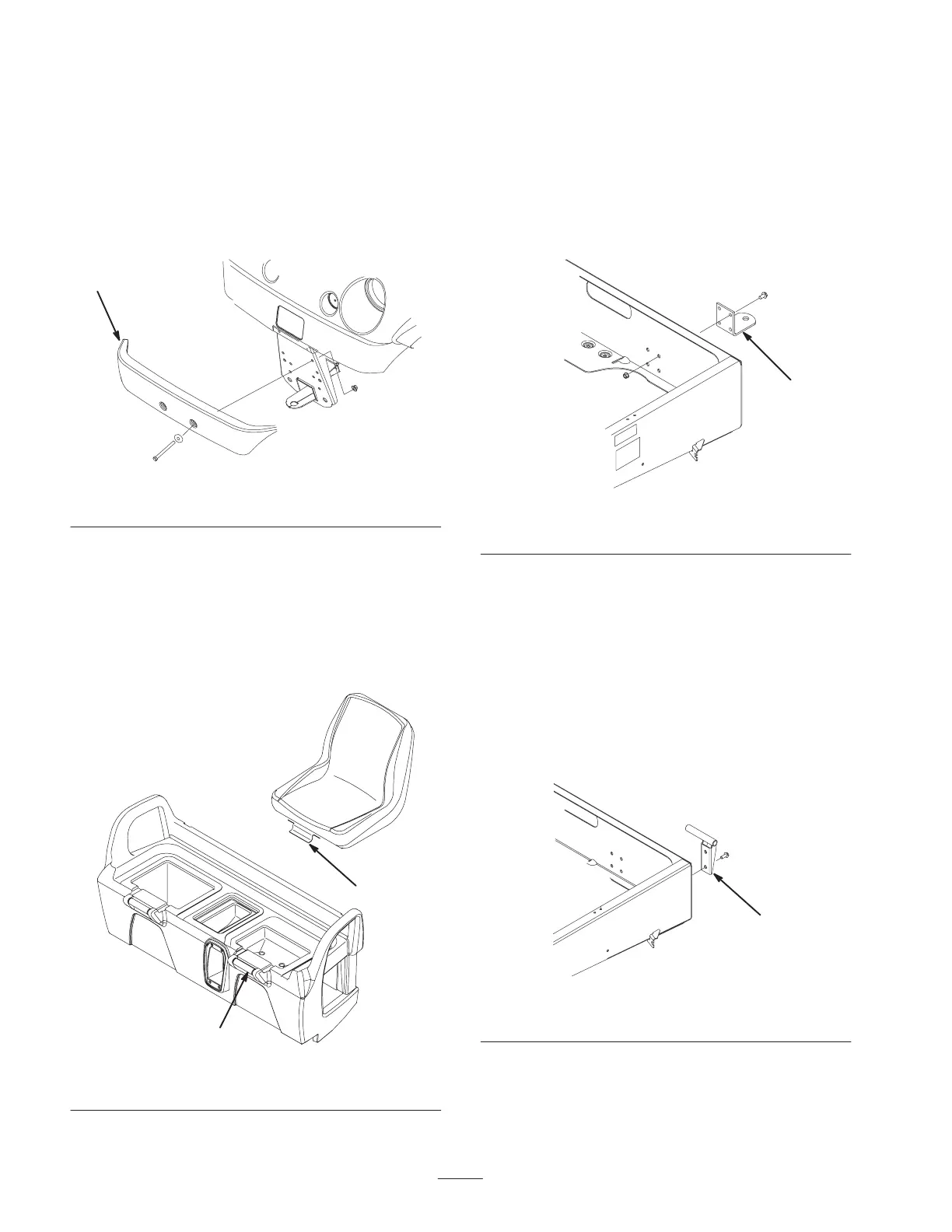

Figure 5

1. Bumper

Installing the Seats

Note: This procedure is only needed for Model No.

07253TC.

Insert the seat bracket into the seat base opening and pivot

the seat downward (Fig. 6).

Figure 6

1. Seat bracket 2. Seat base

Installing the Hitch

Note: This procedure is only needed for Model No.

07253TC.

1. Remove the 4 bolts and nuts from the inside rear of the

frame.

2. Align the hitch with the mounting holes on the frame.

Secure the hitch with the screws and nuts (Fig. 7).

Figure 7

1. Hitch

Installing the Cargo Box

Note: This procedure is only needed for Model No.

07253TC.

1. Position the cargo box onto the frame. The cargo box

must lay flat and be centered.

2. Mount the left hand pivot bracket to the left rear corner

of the frame with 2 flange head screws (3/8 x 1 in.).

Position the bracket as shown in Figure 8.

Figure 8

1. Pivot bracket

3. Slide the cargo box mounting hole onto the pivot

bracket (Fig. 9).
