31
9. Repeat the procedure on the opposite side of the
vehicle.
3
2
1

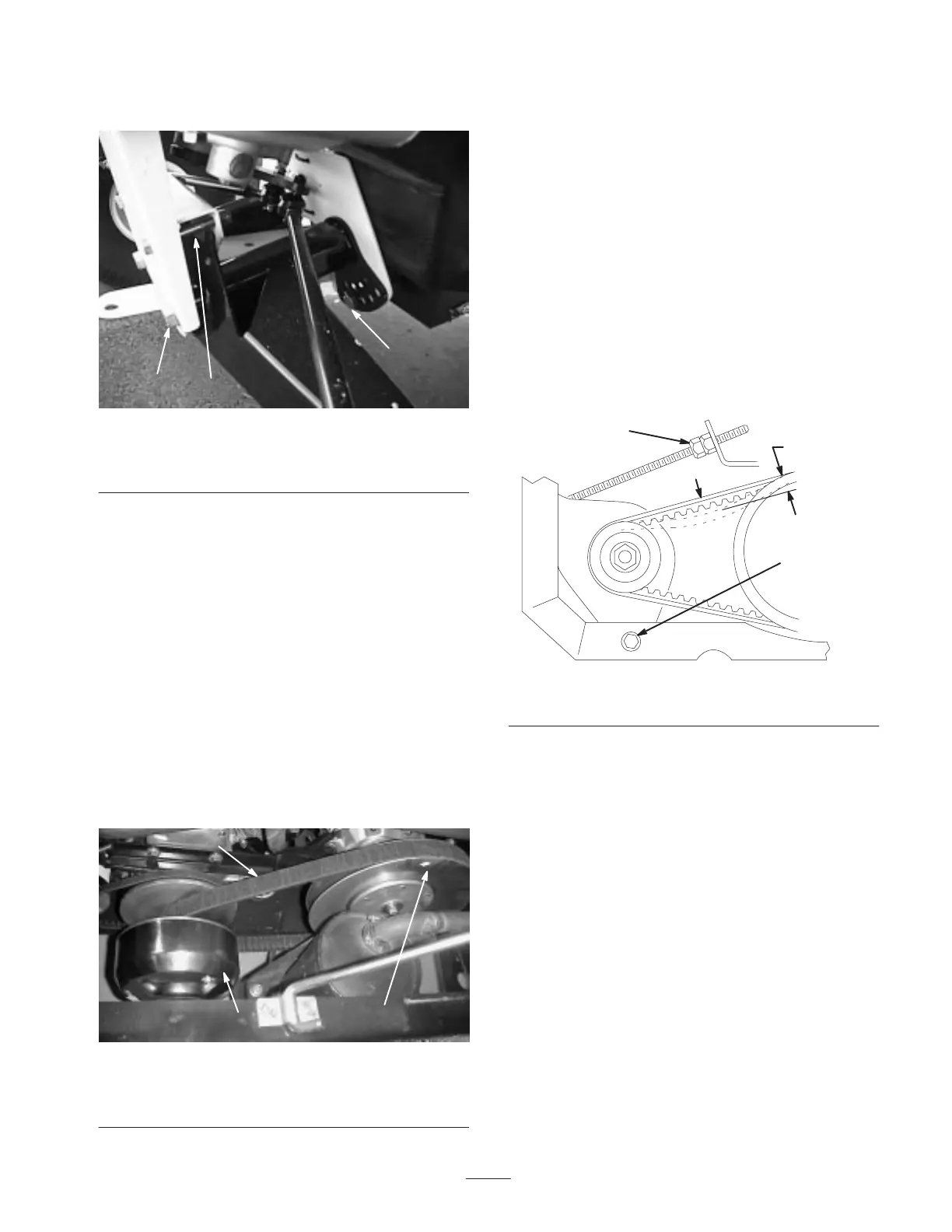

Figure 33
1. Travel limiting bolt
2. Centering bolt
3. Ride height adjustment
bolt
Servicing the Drive Belt
Service Interval/Specification
Check the condition and tension of the drive belt after the
first day of operation and every 200 operating hours
thereafter.
1. Park the machine on a level surface, set the parking
brake, turn the ignition off, and remove the key.
2. Raise the bed and secure it with the prop rod.
3. Put the vehicle in neutral; refer to Neutral Lock
Assembly, page 27.
4. Rotate and inspect the belt for excessive wear or
damage. Replace the belt if necessary.
1
2
3
Figure 34
1. Drive belt
2. Primary clutch
3. Secondary clutch
Replacing the Drive Belt
1. Rotate and route the belt over the secondary clutch
(Fig. 34).
2. Remove the belt from the primary clutch (Fig. 34).
3. To replace the belt, reverse the procedure.
Adjusting the Starter Generator
Belt
Check the tension of the starter generator belt after the first
day of operation and every 200 operating hours thereafter.
1. Park the machine on a level surface, set the parking
brake, turn the ignition off, and remove the key.
2. Loosen the starter generator pivot bolt (Fig. 35).
m–4956
1
2
10 lb.
1/4 in.
Figure 35
1. Generator pivot bolt 2. Jam nut
3. Adjust the jam nut on the starter rod (Fig. 35) until the
belt flexes 1/4 in. with 10 lb. of force.
4. Tighten the starter generator pivot bolt (Fig. 35).
To Next Page
