34

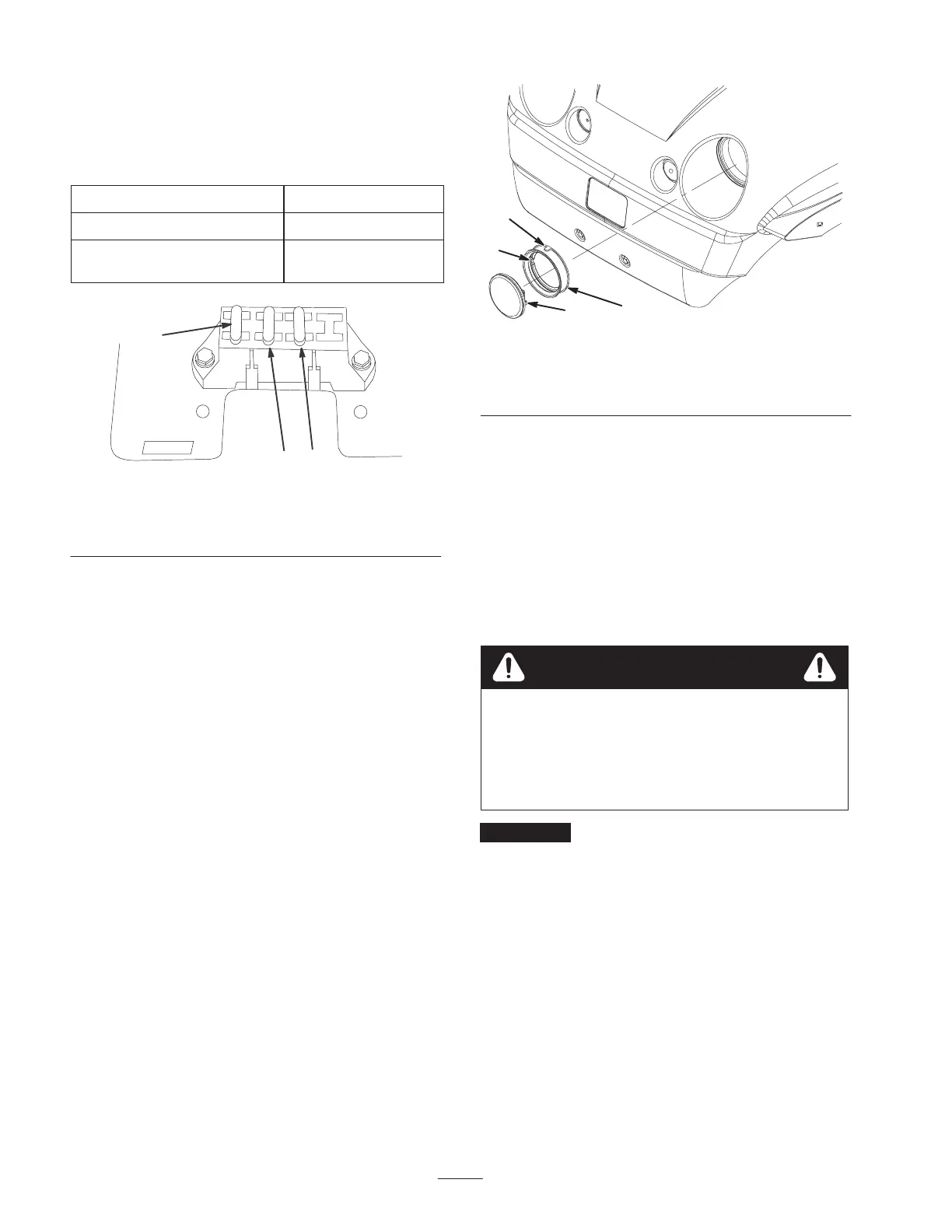

Replacing the Fuses
There are 3 fuses in the electrical system. They are located
beneath the bed in a box on the right hand side of the frame
(Fig. 42).
Ignition system 10 amp.
Lights 10 amp.
Power point 10 amp.
(15 amp. max.)
1
2
3
m–5323
Figure 42
1. Ignition system
2. Lights
3. Power point
Replacing the Headlights
Specification: GE Headlight #H7610
1. Set the parking brake, turn the ignition off, and remove
the key.
2. Reach beneath the dash and push the headlight out of
the hood.
3. Remove the screws attaching the wire harness to the
headlight.
4. Remove the rubber seal from around the headlight
(Fig. 43). Discard the headlight.
5. Align the notch on the inside of the seal with the notch
on the new headlight (Fig. 43). Slide the seal onto the
headlight until the seal is firmly in place.
1
2
3
4
Figure 43
1. Rubber seal
2. Inside notch—align with
notch on headlight
3. Outside notch—align with
notch in hood
4. Headlight
6. Attach the headlight to the wire harness using the
previously removed screws.
7. Align the notch on the outside of the seal with the notch
in the hood. Push the headlight and seal into the hood
until it is firmly in place.
Note: Applying soapy water to the outside of the seal may
aid in sliding the seal into the hood.
Servicing the Battery
Battery posts, terminals, and related accessories
contain lead and lead compounds, chemicals
known to the State of California to cause cancer
and reproductive harm. Wash hands after
handling.
Warning
Important Do not jump start the vehicle.
Service Interval/Specification
Always keep the battery clean and fully charged. Use a
paper towel to clean the battery and battery box. If the
battery terminals are corroded, clean them with a solution
of four parts water and one part baking soda. Apply a light
coating of grease to the battery terminals to prevent
corrosion.
Voltage: 12 volt with 280 cold cranking Amps @ 0° F
