27
1 1

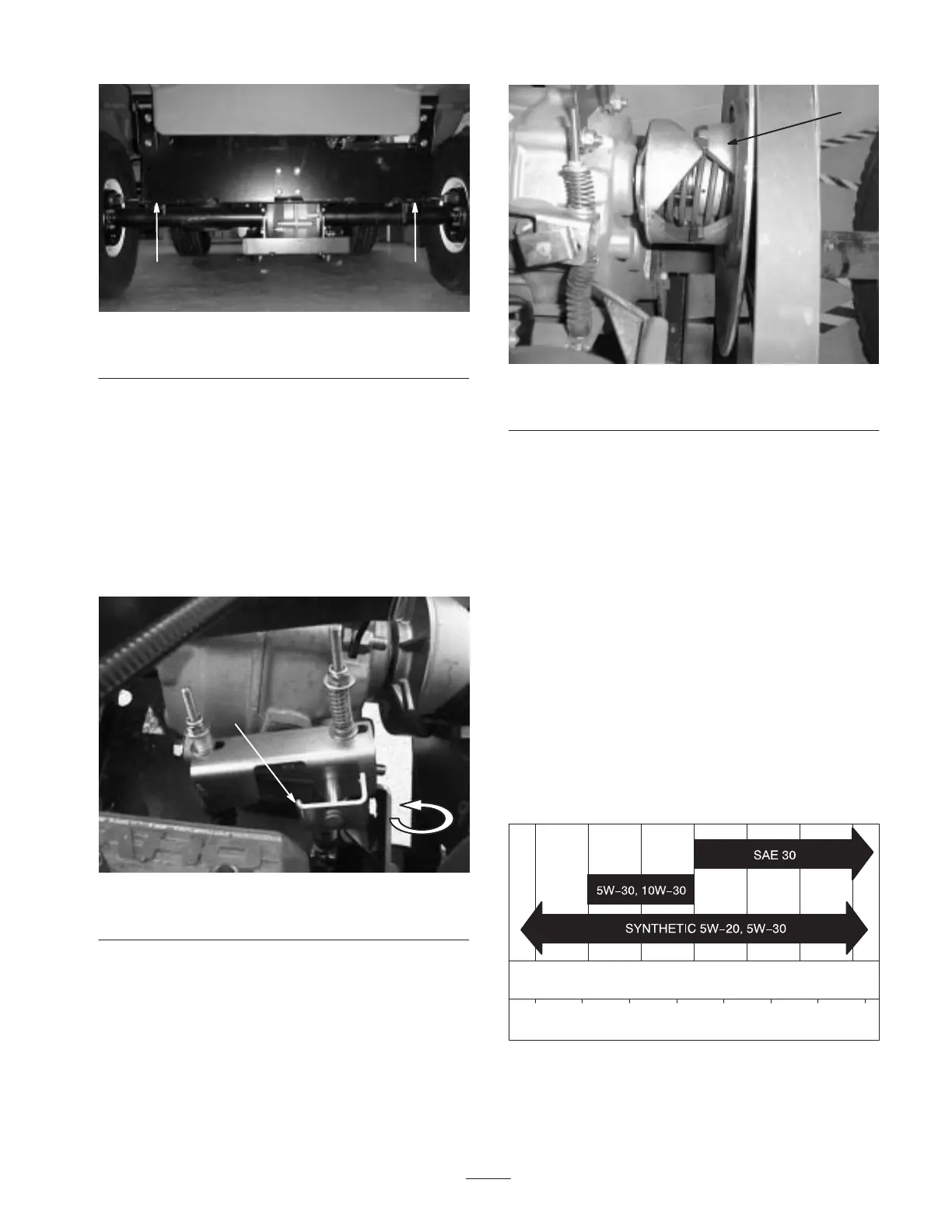

Figure 24
1. Rear jacking points
Neutral Lock Assembly
When performing routine maintenance and/or engine
diagnostics, the transaxle must be shifted into a neutral
position. The vehicle does not have a neutral position on
the shift lever. The following steps must be performed to
put the vehicle in neutral:
1. To lock the transaxle in neutral, rotate the locking pin
180 degrees on the shift block (Fig. 25).
1
Figure 25
1. Locking pin
2. Shift the gear selector into Reverse and then into
Forward. Leave the gear shift selector in the Forward
position.
3. Ensure that the transaxle is locked in neutral by rotating
the secondary clutch (Fig. 26). The tires should not
rotate. If tire rotation does occur, repeat step 2 until the
tires no longer rotate.
1
Figure 26
1. Secondary clutch
Servicing the Engine Oil
Service Interval/Specification
Check the oil level before each use.
Change the oil after the first 8 operating hours and every 50
hours thereafter.
Replace the oil filter every 100 hours.
Note: Change the oil and oil filter more frequently when
operating conditions are extremely dusty or sandy.
Oil Type: Detergent oil (API service SF, SG, SH, SJ, or
higher)
Crankcase Capacity: 48 oz./1-1/2 qt. (1.4 liters) when the
filter is changed
Viscosity: See the table below
F
–20 0 20 40 60 80 100
°
C
–30
°
–20 –10 0 10 20 30 40
USE THESE SAE VISCOSITY OILS
Checking the Oil Level
To check the oil level, refer to Checking the Crankcase Oil,
page 18.
