BeltMaintenance
ServicingtheDriveBelt
CheckingtheDriveBelt
ServiceInterval:Aftertherst8hours
Every200hours
1.Parkthemachineonalevelsurface.
2.Engagetheparkingbrake.
3.Shutofftheengineandremovethekey.
4.Raisethecargobedandsecureitwiththeprop
rod;refertoRaisingtheCargoBedtotheDump
Position(page21).
5.ShiftthetransmissionintoNEUTRAL.
6.Rotateandinspectthebelt(Figure67)forsigns
ofexcessivewearordamage.
Note:Replacethebeltifitisexcessivelyworn
ordamaged;refertoReplacingtheDriveBelt
(page56).
g034106

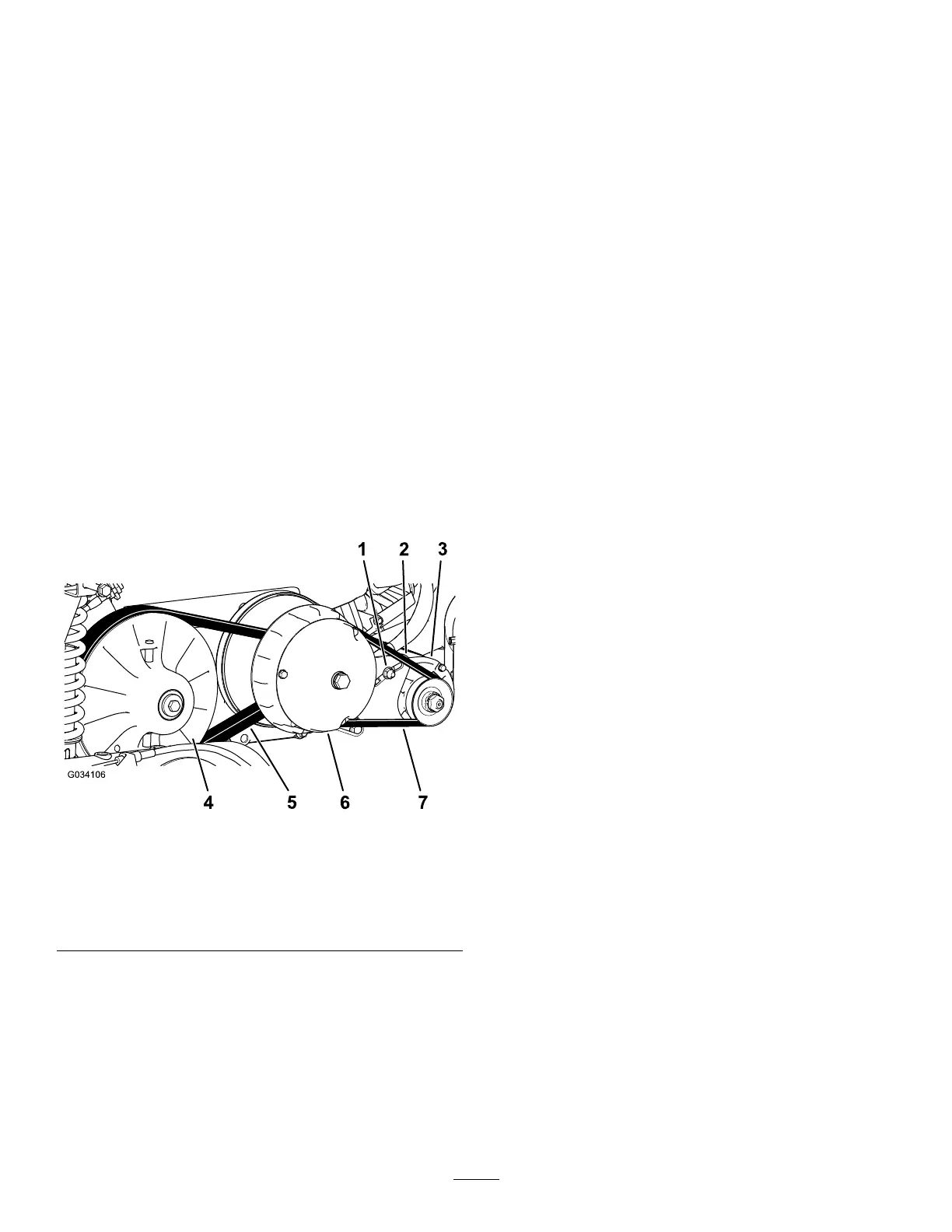

Figure67
1.Generator-pivotnut
5.Drivebelt
2.Generator-pivotbracket
6.Primaryclutch
3.Startergenerator7.Starter-generatorbelt
4.Secondaryclutch
7.Lowerthecargobed.
ReplacingtheDriveBelt
1.Raisethecargobed;refertoRaisingtheCargo
BedtotheDumpPosition(page21).
2.ShiftthetransmissionintotheNEUTRALposition,
engagetheparkingbrake,rotatethekeyswitch
totheOFFposition,andremovethekey.
3.Rotateandroutethebeltoverthesecondary
clutch(Figure67).
4.Removethebeltfromtheprimaryclutch(Figure
67).
Note:Discardtheoldbelt.
5.Alignthenewbeltovertheprimaryclutch
(Figure67).
6.Rotateandroutethebeltoverthesecondary
clutch(Figure67).
7.Lowerthecargobed.
Adjustingthe
Starter-GeneratorBelt
ServiceInterval:Aftertherst8hours
Every200hours
1.Raisethecargobed;refertoRaisingtheCargo
BedtotheDumpPosition(page21).
2.Loosenthepivotnutforthestartergenerator
(Figure67).
3.Alignaprybarbetweentheenginemountand
starter.
4.Applydownwardpressuretotheprybartorotate
thestarterdownintheslotuntilthebelttension
onlyallows6mm(1/4inch)beltdeectionwith
44N∙m(10ft-lb)offorce(Figure67).
5.Tightenthepivotnuthandtight,andremovethe
prybar(Figure67).
6.T orquethepivotnutto88to115N∙m(65to85
ft-lb).
7.Lowerthecargobed.
