Toro 22187 User Manual

Setup
Loose Parts
Use the chart below to verify that all parts have been shipped.
Step
Description
Qty.
Use
Handle
1
Bolt (5/16 x 1-1/4 inches)
2
Washer
4
Thin locknut (5/16 inch)
2
Bolt (5/16 x 1-1/2 inches)
2
Locknut (5/16 inch)
2
Bag support rod
1
Cap locknut
2
1
Cable tie
1
Install the handle.
2
No parts required
–
Install the starter rope.
Self-tapping screw
2
3
Fuel tank
1
Install the fuel tank and fuel line.
4
Discharge tunnel plug
1
Install the discharge tunnel plug.
5
No parts required
–
Fill the crankcase with oil.
Note: Deter mine the left and right sides of the
mac hine from the nor mal operating position.
Step
1
Installing the Handle
Parts needed for this step:
1
Handle
2
Bolt (5/16 x 1-1/4 inches)
4
Washer
2
Thin locknut (5/16 inch)
2
Bolt (5/16 x 1-1/2 inches)
2
Locknut (5/16 inch)
1
Bag support rod
2
Cap locknut
1
Cable tie
Procedure
1. Mount the handle to the outside of the la wn
mo w er housing (using the bottom hole) with 2
bolts (5/16 x 1-1/4 inc hes), w ashers , and thin
loc kn uts (5/16 inc h) ( Figure 3 ).

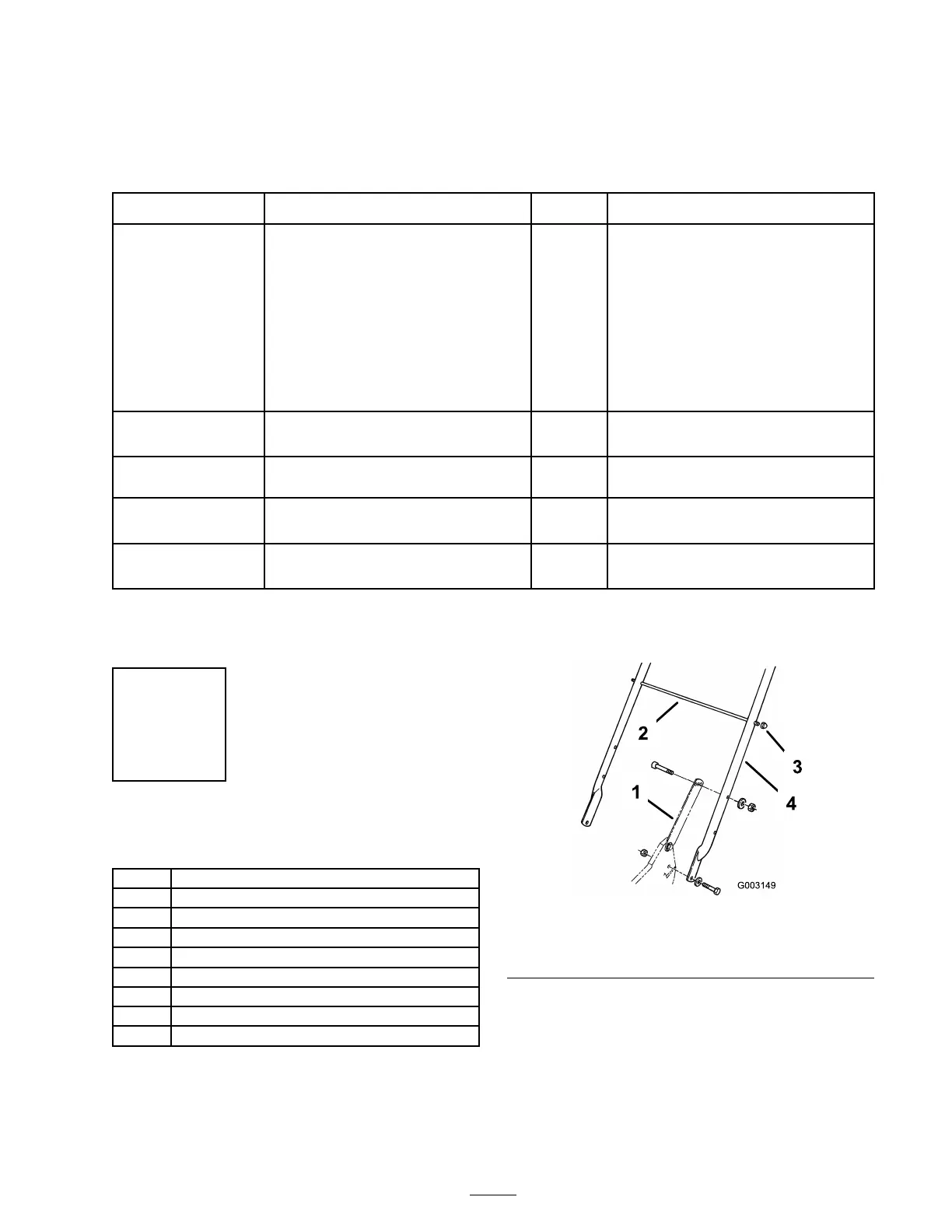

Figure 3
1. Handle latch
3. Cap locknut (2)
2. Bag support rod 4. Handle
2. Secure the handle latc hes to the handle with
2 bolts (5/16 x 1-1/2 inc hes), w ashers , and
loc kn uts (5/16 inc h) ( Figure 3 ).
7
