17
Operation
Traction Unit Overview

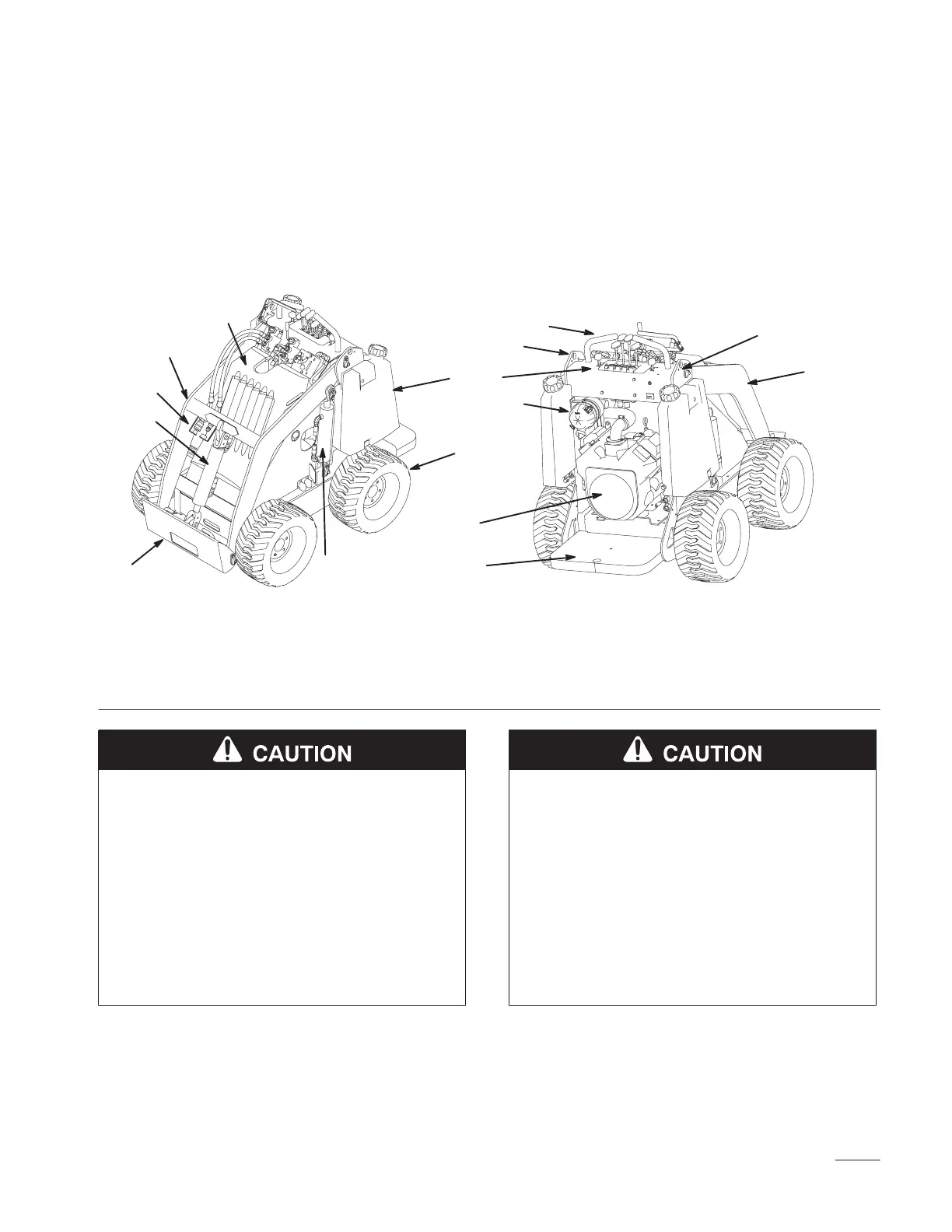

Figure 8 contains a front and back view of the traction unit. Familiarize yourself with all of the traction unit
components listed in Figure 8.
m–4393/4389
5
1
3
2
6
7
8
9
10
11
12
11
3
4
13
14
Figure 8
1. Mount plate
2. T ilt cylinder
3. Loader arms
4. Lift cylinder
5. Fuel tank
6. Wheel
7.
Operator platform
8. Engine
9.
Air filter
10. Control panel
11. Lift points
12. Handle
13.
Auxiliary hydraulic couplers
14. Hood
POTENTIAL HAZARD
• The operator could fall off of the platform.
WHAT CAN HAPPEN
• The operator could be seriously injured.
HOW TO AV
OID THE HAZARD
• Do not move any of the contr ol levers
unless standing with both feet on the
platform and with hands holding the
handles.
POTENTIAL HAZARD
• If the traction unit is operated without
covers or guards in place, the operator
could be injured by moving parts.
WHAT CAN HAPPEN
• The operator could be seriously injured.
HOW TO AV
OID THE HAZARD
• Do not operate the traction unit with any of
the covers or guards removed.
