32

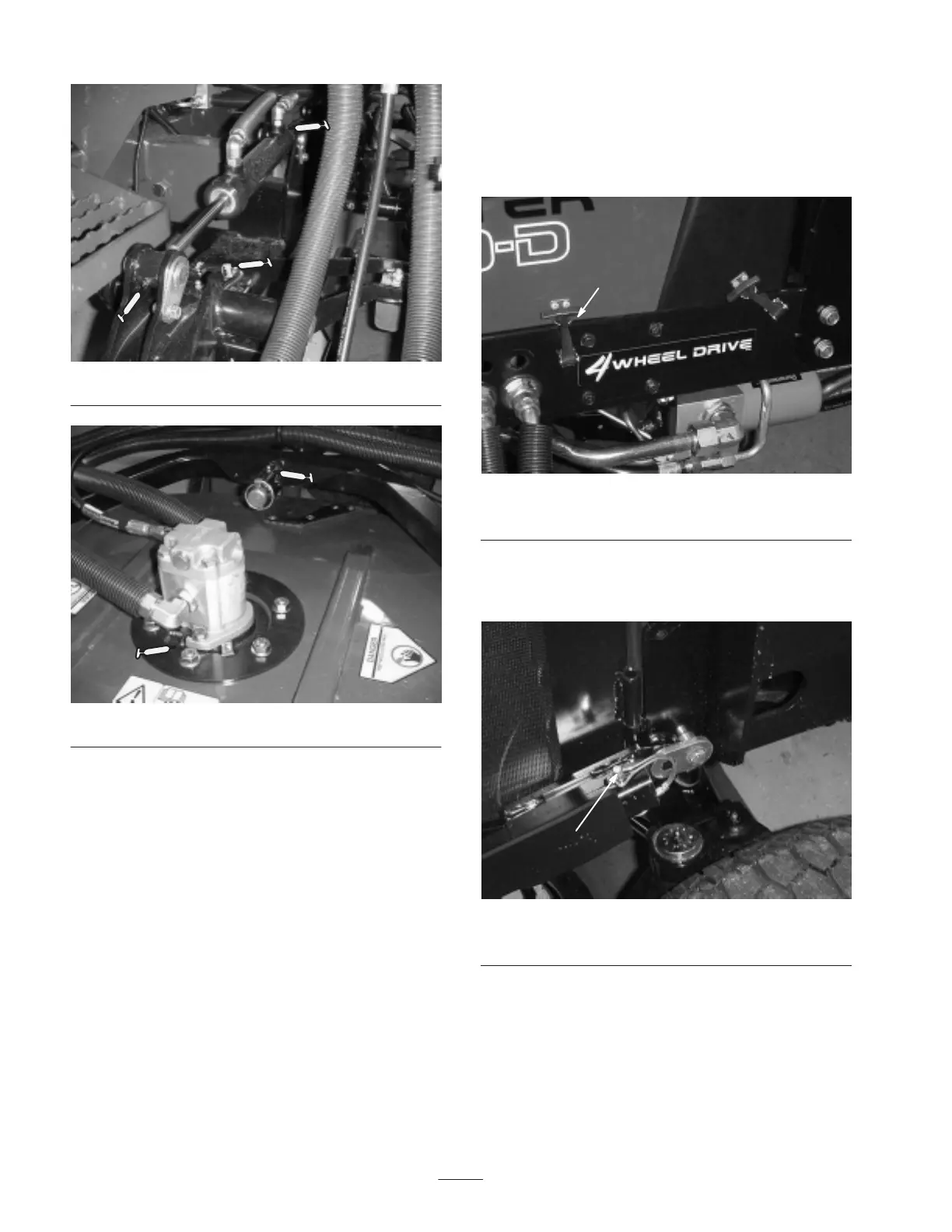

Figure 19
Figure 20
Hood Removal
To gain additional access to engine compartment, the hood
may be removed from traction unit.
1. Release hood latches (Fig. 21) and raise hood.
1
Figure 21
1. Hood latch
2. Unhook lanyard from hood pin, remove pin and slide
hood tubes rearward off guides (Fig. 22).
1
Figure 22
1. Hood pin
