1
2
3
4
G015663

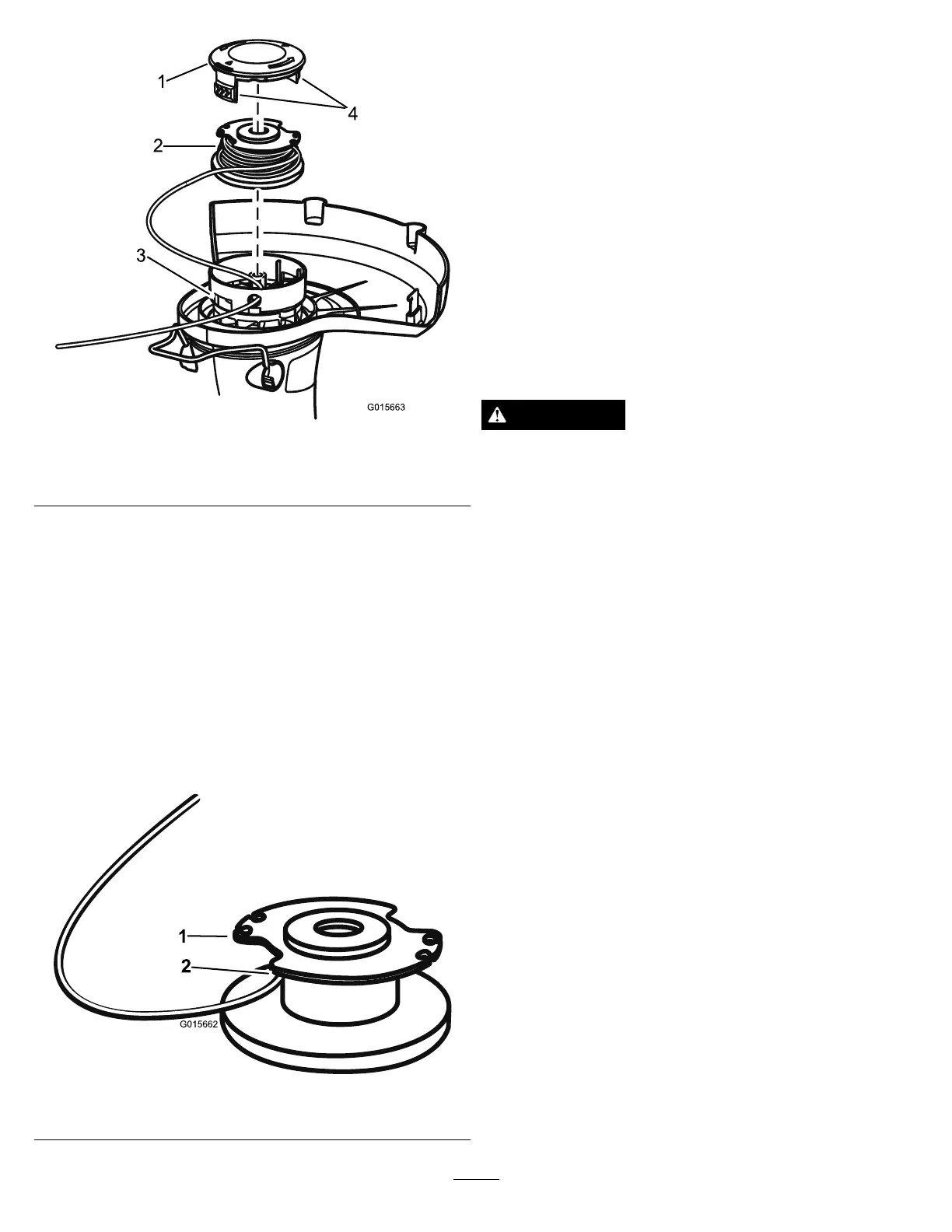

Figure15
1.Spoolretainer3.Slots
2.Spool
4.Tabs
3.Pullthespoolretaineruptoremoveitandremovethespool.
4.Toinstallthenewspool,makesurethestringiscapturedinone
oftheretainingslotsonthenewspool.Makesuretheendofthe
stringextendsapproximately6inches(152mm).
5.Installthenewspoolsothatthestringalignswiththeeyeletinthe
stringhead.Threadthestringintotheeyelet.
6.Pullthestringextendingfromthestringheadsothestringreleases
fromtheslotinthespool.
7.Reinstallthespoolretainerbydepressingtabsintoslotsand
pushingdownuntilspoolretainerclicksintoplace.
ReplacingtheString
1.Removethebattery.
2.Removethespool.SeeReplacingtheSpool(Figure15).
1
2
G015662
Figure16
1.Spool
2.Hole
Note:Removeanyoldstringremainingonthespool.
3.Thespoolwillacceptupto15feet(4.5m)ofstring.Useonly.065
inch(1.6mm)diametermonolamentstring.
Note:Donotuseanyothergaugeortypeofstring,asthiscould
damagethetrimmer.
4.Insertthestringintotheanchorholeintheupperpartofthespool
(Figure16).Windthestringontothespoolinthedirectionshown
bythearrowsonthespool.
5.Placethestringintheslotontheupperspoolange,leavingabout
6inches(152mm)extendedbeyondtheslot.
Note:Donotoverll.Afterwindingthestring,thereshouldbeat
least1/4inch(6mm)betweenthewoundstringandtheoutside
edgeofthespool.
6.Replacethespoolandthespoolretainer.RefertoSpool
Replacementearlierinthismanual.
BatteryPackPreparationForRecycling
WARNING
Uponremoval,coverthebatterypack'sterminalswithheavy-duty
adhesivetape.Donotattempttodestroyordisassemblethe
batterypackorremoveanyofitscomponents.Lithium-ion
batteriesmustberecycledordisposedofproperlyatthenearest
batteryrecyclingfacility.
Service
Shouldthisitemneedservice,taketheproducttoyourAuthorizedT oro
ServiceDealer.YourToroDealerisspeciallytrainedtorepairT oro
productsandwillensurethatyourTorostays“All”T oro.
Storage
•Cleanallforeignmaterialfromtheproduct.
•Storeitinawell-ventilatedplacethatisinaccessibletochildren.
•Keepawayfromcorrosiveagentssuchasgardenchemicalsand
de-icingsalts.
9
