RemovingandInstallingthe

DividerPlate

Youneedtoremovethedividerplatetoprovideaccessbefore

performingsomemaintenanceprocedures.

RemovingtheDividerPlate

1.Unlatchandopenthecowl;refertoOpeningtheCowl

(page22).

2.Useawrenchtoremovethe4boltsthatsecurethe

dividerplatetothefrontcowl.

Note:Retaintheboltsandwashersforinstallingthe

dividerplate.

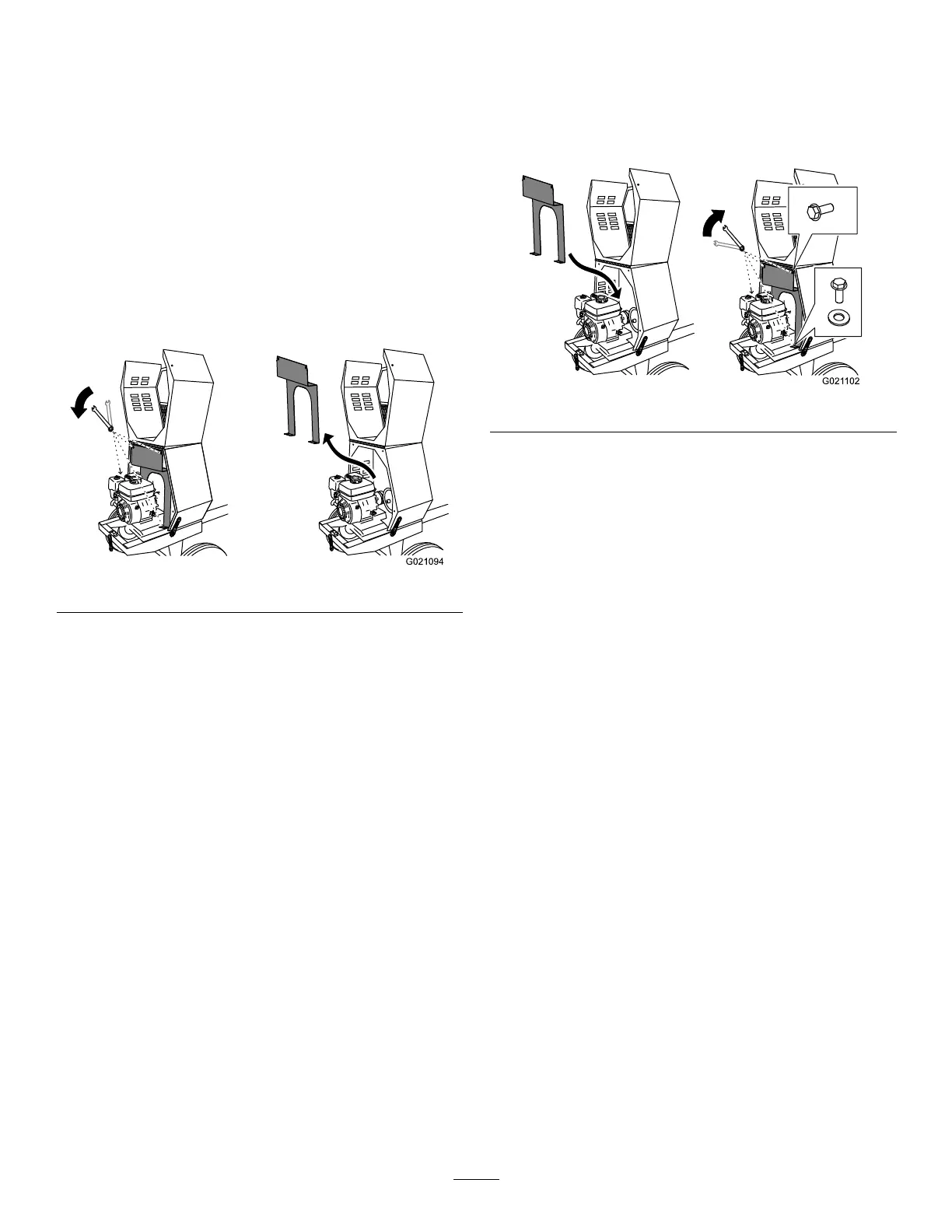

G021094

Figure39

3.Toremovethedividerplate,liftitupwardandtiltit

backsothatitclearsvariousenginecomponents.

InstallingtheDividerPlate

1.Guidethedividerplateintopositionagainstthefront

cowl.

Note:Startwiththedividerplatetiltedslightlyback,

thentiltitforwardwhileloweringitintoposition.

G021 102

Figure40

2.Aligntheboltholesinthedividerplateandthefront

cowl.

3.Installeachofthe4boltsandhand-tightenthemto

preventcross-threading.

4.Tightentheboltswithawrenchuntiltheyaresecure.
