6.Useabrushtocarefullyremovecarbondepositsfrom
thespark-arresterscreen(Figure51).
Note:Replacethesparkarresterifithasbreaksor
holes.
1
2
G019332

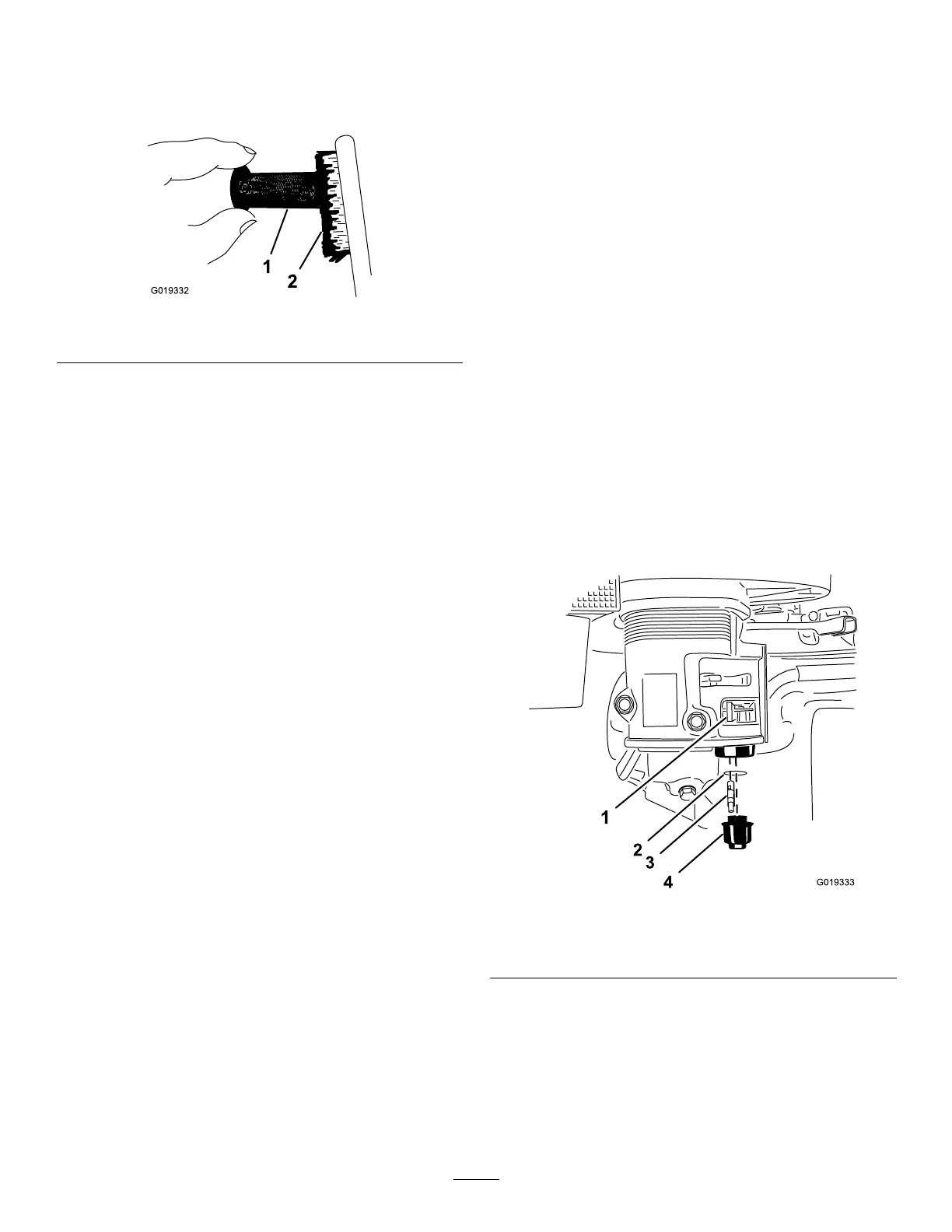

Figure51
1.Screen
2.Brush
7.Installthesparkarrester,muferprotector,exhaust
deector,andmuferinthereverseorderof
disassembly.
8.Installthedividerplate;refertoInstallingtheDivider
Plate(page29).
FuelSystem
Maintenance
CleaningtheFuel-Sediment
Cup
ServiceInterval:Every100hours/Every6months
(whichevercomesrst)—Cleanthe
fuel-sedimentcup.
Yearlyorbeforestorage—Cleanthefuel-sedimentcup.
Underneaththefuelvalveisasedimentcuptocatchdirtin
thefuel.
1.Parkthemachineonalevelsurfaceandshutoffthe
engine.
2.Ensurethattheengineandtheexhaustsystemsurfaces
arecool.
3.MovetheleverofthefuelvalvetotheOFFposition,all
thewaytotheleft(Figure52).
4.Unscrewthesedimentcup(Figure52).
5.RemoveandretainthefuellterandO-ring(Figure
52).
Note:DonotcleantheO-ringinsolvent.
2
3
4
1
G019333
Figure52
1.Fuelvalve—Offposition3.Fuellter
2.O-ring4.Sedimentcup
6.Cleanthefuellterandsedimentcupusinga
nonammablesolvent,anddryitcarefully.
7.WipetheO-ringwithaclean,drycloth.
8.Installthefuellterinthebottomofthecarburetor
(Figure52).
9.AligntheO-ringintothegrooveinthesedimentcup
andinstallthesedimentcuptothefuel-valvehousing.
35
