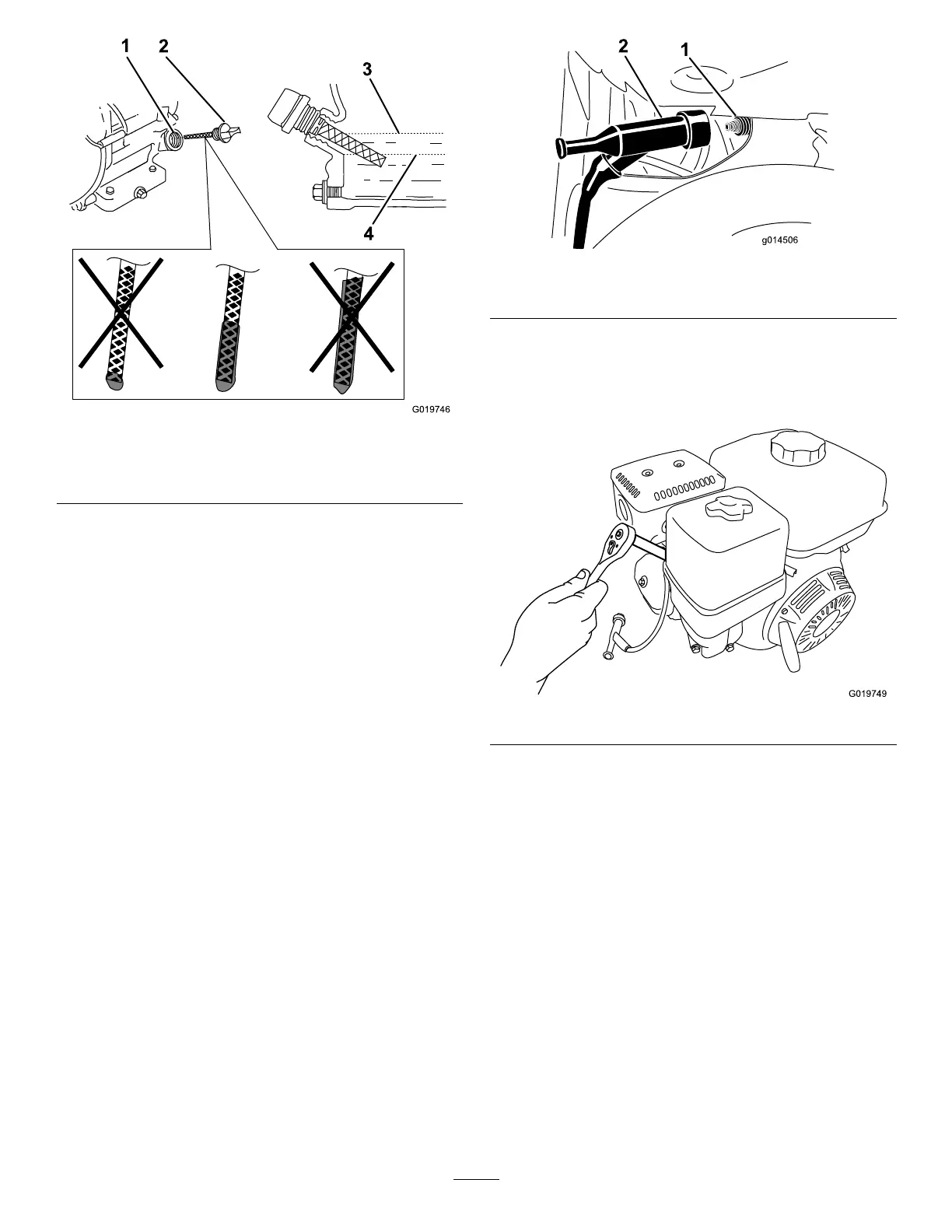

Figure46
1.Oil-llhole3.Oil-levelupperlimit
2.Dipstick
4.Oil-levellowerlimit
7.Replaceandsecurethedipstick.
8.Wipeupanyspilledoil.
ServicingtheSparkPlug
ServiceInterval:Every100hours/Every6months
(whichevercomesrst)—Checkthe
sparkplug.
Every300hours/Yearly(whichevercomes
rst)—Replacethesparkplug.
Type:NGKBPR6ESorequivalent
Gap:0.7to0.8mm(0.028to0.031inch)
Note:Usea21mm(13/16inch)spark-plugwrenchfor
removingandinstallingthesparkplug.
RemovingtheSparkPlug
1.Parkthemachineonalevelsurfaceandshutoffthe
engine.
2.Ensurethatthemachinesurfacesarecool.
3.Pullthespark-plugwireofftheterminalofthespark
plug(Figure47).
Figure47
1.Sparkplug
2.Wire
4.Cleanaroundthesparkplug.
5.Rotatethesparkplugcounterclockwiseusinga21mm
(13/16inch)spark-plugwrenchtoremovetheplug
andthesealingwasher(Figure48).
G019749
Figure48
33
