Toro GrandStand 74568TE User Manual

EngineMaintenance
ServicingtheAirCleaner
ServiceInterval/Specication
Inspectthefoamandpaperelementsandreplacethem
iftheyaredamagedorexcessivelydirty.
Note:Servicetheaircleanermorefrequently(every
fewoperatinghours)iftheoperatingconditionsare
extremelydustyorsandy.
Important:Donotoilthefoamorpaperelement.
RemovingtheFoamandPaper
Elements
1.DisengagethePTOandsettheparkingbrake.
2.Stoptheengine,removethekey,andwaitforall
movingpartstostopbeforeleavingtheoperating
position.
3.Cleanaroundtheaircleanertopreventdirt
fromgettingintotheengineandcausingdamage
(
Figure40).
4.Unscrewthecoverknobsandremovetheaircleaner
cover(Figure40).
5.Unscrewthehoseclampandremovetheaircleaner
assembly(
Figure40).
6.Carefullypullthefoamelementoffthepaper
element(Figure40).

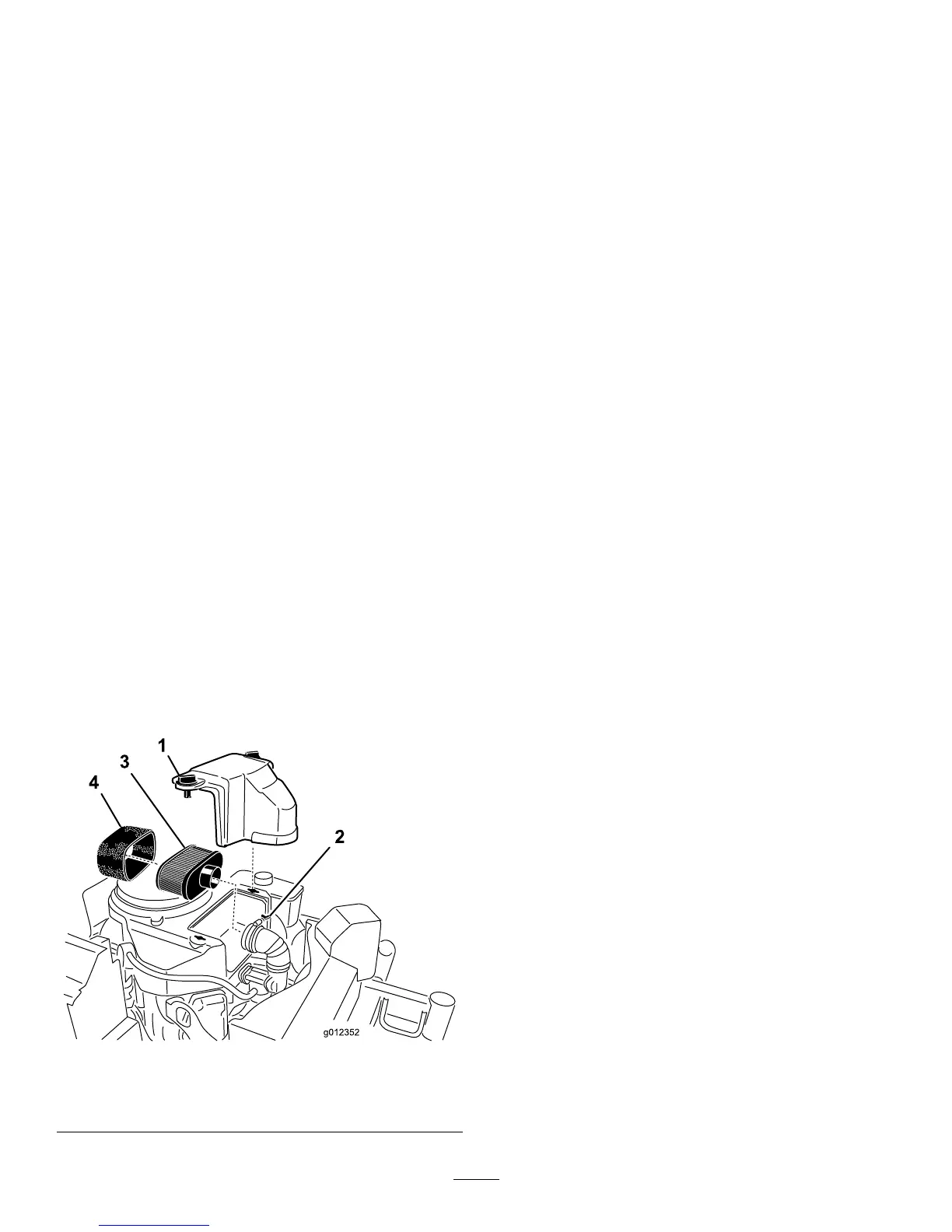

Figure40
1.Cover
3.Paperelement
2.Hoseclamp4.Foamelement
CleaningtheFoamAirCleanerElement
ServiceInterval:Every25hours
1.Washthefoamelementinliquidsoapandwarm
water.Whentheelementisclean,rinseitthoroughly.
2.Drytheelementbysqueezingitinacleancloth.
Important:Replacethefoamelementifitis
tornorworn.
ServicingthePaperAirCleaner
Element
ServiceInterval:Every50hours—Checkthepaperair
cleanerelement.
Every200hours—Replacethepaper
aircleanerelement.
1.Donotcleanthepaperlter,replaceit(
Figure40).
2.Inspecttheelementfortears,anoilylm,ordamage
totherubberseal.
3.Replacethepaperelementifitisdamaged.
InstallingtheFoamandPaperElements
Important:Topreventenginedamage,always
operatetheenginewiththecompletefoamand
paperaircleanerassemblyinstalled.
1.Carefullyslidethefoamelementontothepaperair
cleanerelement(
Figure40).
2.Placetheaircleanerassemblyontotheaircleaner
baseorhoseandsecureit(
Figure40).
3.Placetheaircleanercoverintopositionandtighten
thecoverknob(Figure40).
ServicingtheEngineOil
ServiceInterval:Beforeeachuseordaily—Checkthe
engineoillevel.
Aftertherst8hours—Changethe
engineoil.
Every100hours—Changetheengine
oil.(moreoftenindirtyordusty
conditions)
Every200hours—Changetheengine
oillter.
Note:Changetheoilmorefrequentlywhenthe
operatingconditionsareextremelydustyorsandy.
