Toro Groundsmaster 4000 User Manual

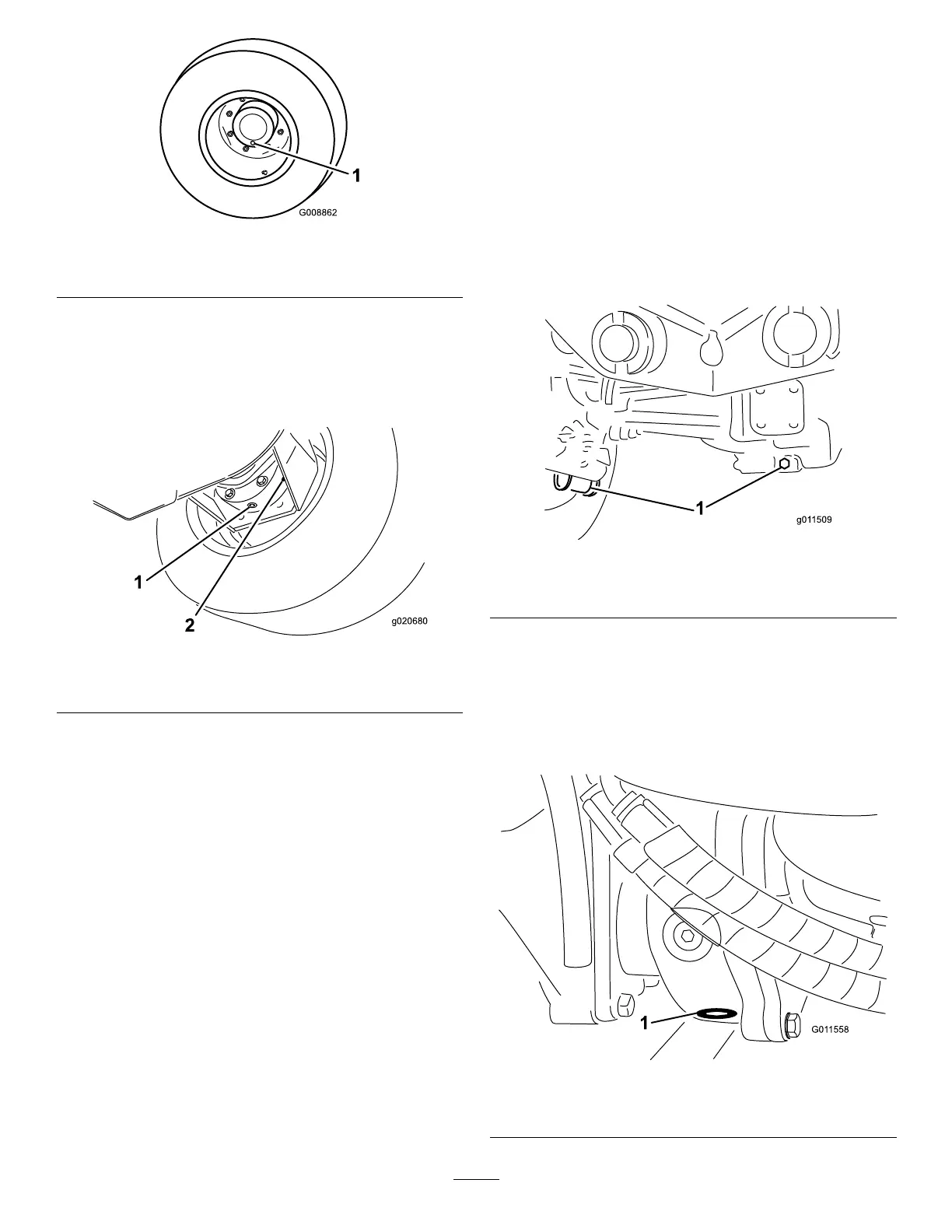

g008862
Figure93
1.Check/drainplug
2.Placeadrainpanundertheplanetaryhub,
removetheplug,andallowtheoiltodrain.
3.Placeadrainpanunderthebrakehousing,
removethedrainplug,andallowtheoiltodrain
(Figure94).
g020680
g020680
Figure94
1.Drainplug2.Brakehousing
4.Whenalloftheoilhasdrainedfromboth
locations,installthepluginthebrakehousing.
5.Rotatethewheeluntiltheopenplugholeinthe
planetaryisatthe12o'clockposition.
6.Throughtheopenhole,slowlylltheplanetary
with0.65L(22oz)ofhighqualitySAE
85W-140wtgearlube.
Important:Iftheplanetaryllsbeforethe
0.65L(22oz)ofoilisadded,waitonehour
orinstalltheplugandmovethemachine
approximatelytenfeettodistributetheoil
throughthebrakesystem.Then,removethe
plugandaddtheremainingoil.
7.Installtheplug.
8.Repeattheprocedureontheopposite
planetary/brakeassembly.
ChangingtheRear-AxleOil
ServiceInterval:Aftertherst200hours
Every800hours
1.Positionthemachineonalevelsurface.
2.Cleantheareaaroundthe3drainplugs;1on
eachendand1inthecenter(Figure95).
3.Removethecheckplugstomakedrainingthe
oileasier.
4.Removethedrainplugsandallowtheoiltodrain
intothepans.
g011509
Figure95
1.Drain-pluglocation
5.Cleantheareaaroundthedrainplugatthe
bottomofthegearbox(Figure96).
6.Removethedrainplugfromthegearboxand
allowtheoiltodrainintoapan.
Note:Removethellplugtomakedrainingthe
oileasier.
g011558
Figure96
1.Drainplug
67
