Assembly
14

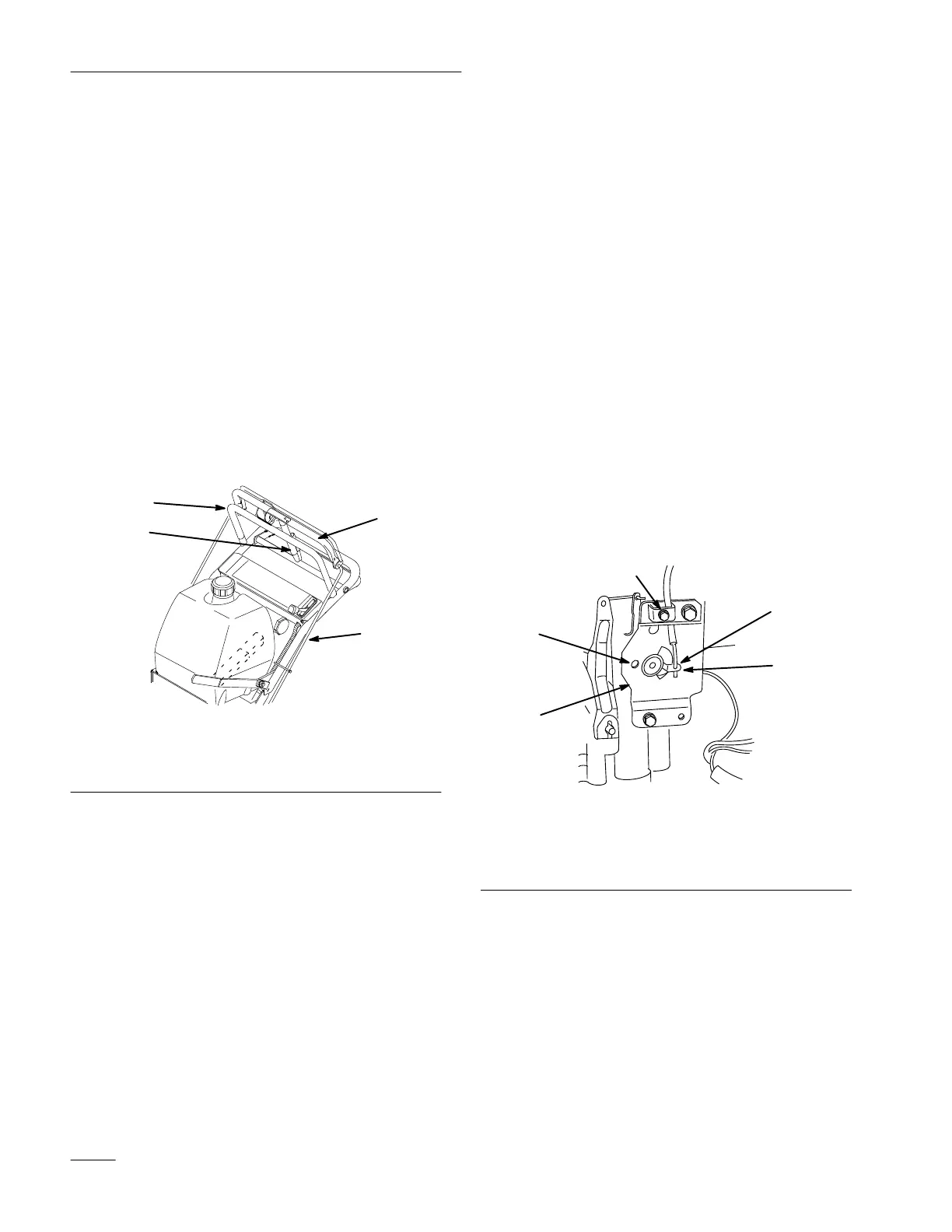

3. Check the gap between upper control bar and
fixed bar with wheel drive fully engaged. Gap
should be approximately 1 to 1-1/4 in.
(25–32 mm) (Fig. 6).
Note: The upper control bar and fixed bar
must be parallel in the engaged,
relaxed and brake positions.
4. Check operation. If adjustment is required,
remove hairpin cotter securing rod to upper
control bar. Thread rod in or out of fitting for
proper position and install into upper control bar
with hairpin cotter.
5. After adjusting control rods, check parking brake
adjustment, refer to: Brake page 35 for
instructions.
m–3770
Figure 6
1. Control
rod
2.
Fixed control bar
3.
Parking brake lever
4.
Upper control bar
Connect
Throttle Cable
1. Place throttle control lever in FAST
position.(Fig. 7).
2. Hook wire Z–bend into hole of speed control
lever (Fig. 7).
3. Loosen cable clamp screw allowing cable
installation, but do not tighten (Fig. 7).
4. Move control cable casing and wire until hole in
speed control lever is aligned with hole in base
plate. Insert a 1/4 in. (6.35 mm) diameter pin or
bolt into aligned holes to hold adjustment.
5. Pull throttle cable slightly to remove any slack
and tighten cable clamp screw to lock
adjustment in place.
6. Remove alignment pin and check control
operation.
m–3787
Figure 7
1. Wire
Z-bend
2.
Speed control lever
3.
Base plate
4.
Alignment holes 1/4 in.
(6.35mm)
5.
Cable clamp
