Adjustingthe
Motion-ControlLevers
Ifthemotion-controlleversdonotalignhorizontally,
adjustthemotion-controllevers.
1.Parkthemachineonalevelsurface,disengage
thePTO,andengagetheparkingbrake.
2.Shutofftheengine,removethekey,andwait
forallmovingpartstostopbeforeleavingthe
operatingposition.
3.Pushthemotion-controlleversdowntothe
operatingposition.

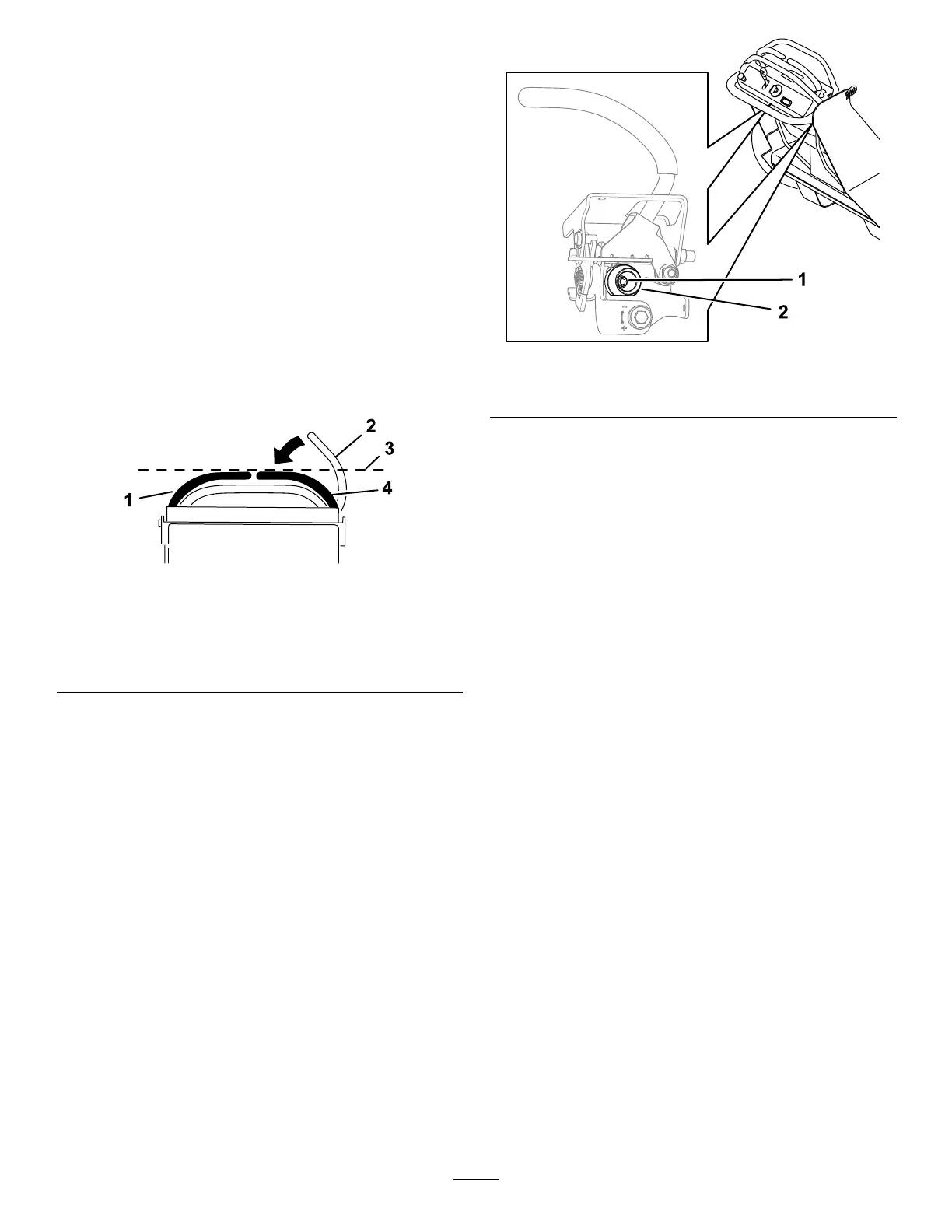

g300386
Figure60
1.Leftmotion-controlleverin
operatingposition
3.Checkthehorizontal
alignmenthere.
2.Rightmotion-controllever
inneutralposition
4.Rightmotion-controllever
inoperatingposition
4.Checkthehorizontalalignmentofthe
motion-controllevers(Figure60).
5.Loosenthenutholdingthecamforthe
motion-controlleveryouareadjusting(Figure
61).
g300397
Figure61
1.Nut
2.Cam
6.Adjustthecamuntilitalignswiththeother
motion-controlleverandtightenthenutforthe
cam(Figure61).
Note:Movingthecamclockwiselowersthe
lever;movingthecamcounterclockwiseraises
thelever.
Important:Donotrotatetheatofthecam
pastvertical.Theoperator-presencecontrol
switchshouldnevercontacttheatofthe
cam.
42
