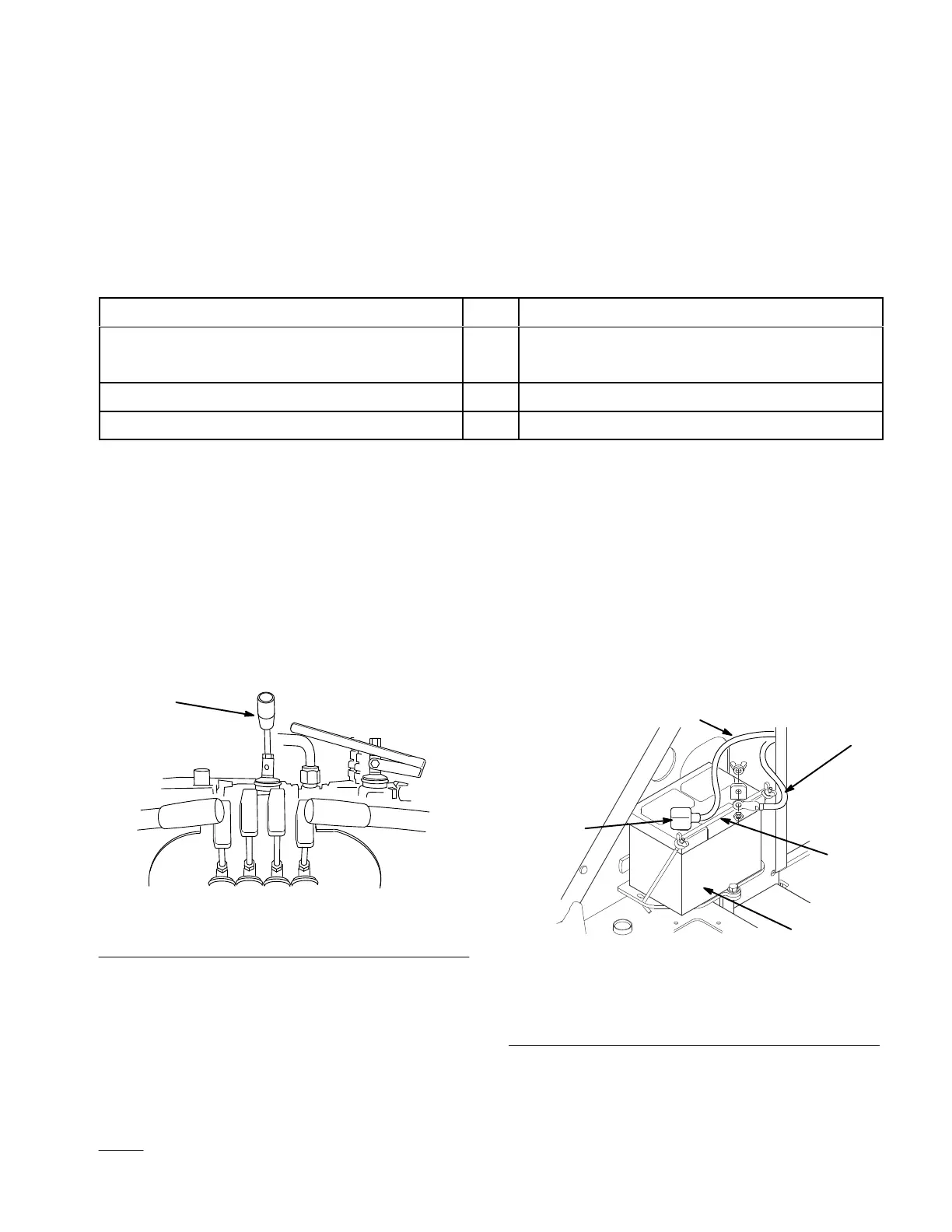

Assembly
Loose Parts
Note: Use the chart below to verify that all parts have been shipped.
DESCRIPTION QTY. USE
T raction Unit
V alve Lever
1
1
Install valve lever
Key 2 Start engine
Hydraulic oil filter 1 Break-in oil change
Installing the V alve Lever
1. Thread the lever into the pump selector valve
(Fig. 3).
Note: The lever should be installed with the
bend toward the operator.
2. Tighten the jam nut on the lever to lock it in
position.
1
m–3883
Figure 3
1. Pump selector lever
Activating the Battery
The traction unit is shipped with a dry battery. Bulk
electrolyte with 1.260 specific gravity must be
purchased from a local battery supply outlet.
1. Remove the hood; refer to Removing the Hood,
page 26.
2. Remove the wing nuts and bar securing the
battery (Fig. 4).
3
5
1 m–4391
2
4
Figure 4
1. Battery
2. Bar
3. Positive
cable
4. Rubber cover
5. Negative cable
