Maintenance
28
4. Install the air cleaner cover with the side
indicated as UP facing up and secure the latches
(Fig. 20).
Servicing
the Engine Oil
Change oil after the first 25 operating hours and then
every 100 operating hours thereafter.
Note: Change oil more frequently when
operating conditions are extremely
dusty or sandy.
Oil Type: Detergent oil (API service SG or SH)
Crankcase Capacity: w/filter, 2.1 qt. (2 l)
Viscosity: See table below
F
–20 0 20
40 60
80 100
°
C
–30
°
–20 –10
01020
30 40
USE THESE SAE VISCOSITY OILS
32
5W–20, 5W–30
10W–30, 10W–40
Changing the Oil
1. Start the engine and let it run for five minutes.
This warms the oil so it drains better.
2. Park the traction unit so that the drain side is
slightly lower than the opposite side to ensure
that the oil drains completely.
3. Lower the loader arms, chock the wheels, and
stop the engine. Remove the key.
POTENTIAL HAZARD
• Components will be hot if the traction unit
has been running.
WHAT CAN HAPPEN
• Touching hot components can cause burns.
HOW TO AV
OID THE HAZARD
• Allow the traction unit to cool before
performing maintenance or touching any
components.
4. Place one end of a hose on the drain valve and
the other end in a pan.
5. Open the drain valve by turning it
counterclockwise, pulling out as you turn it
(Fig. 21).
6. When the oil has drained completely, close the
drain valve and remove the hose.
Note: Dispose of the used oil at a certified
recycling center.
1
m–3216

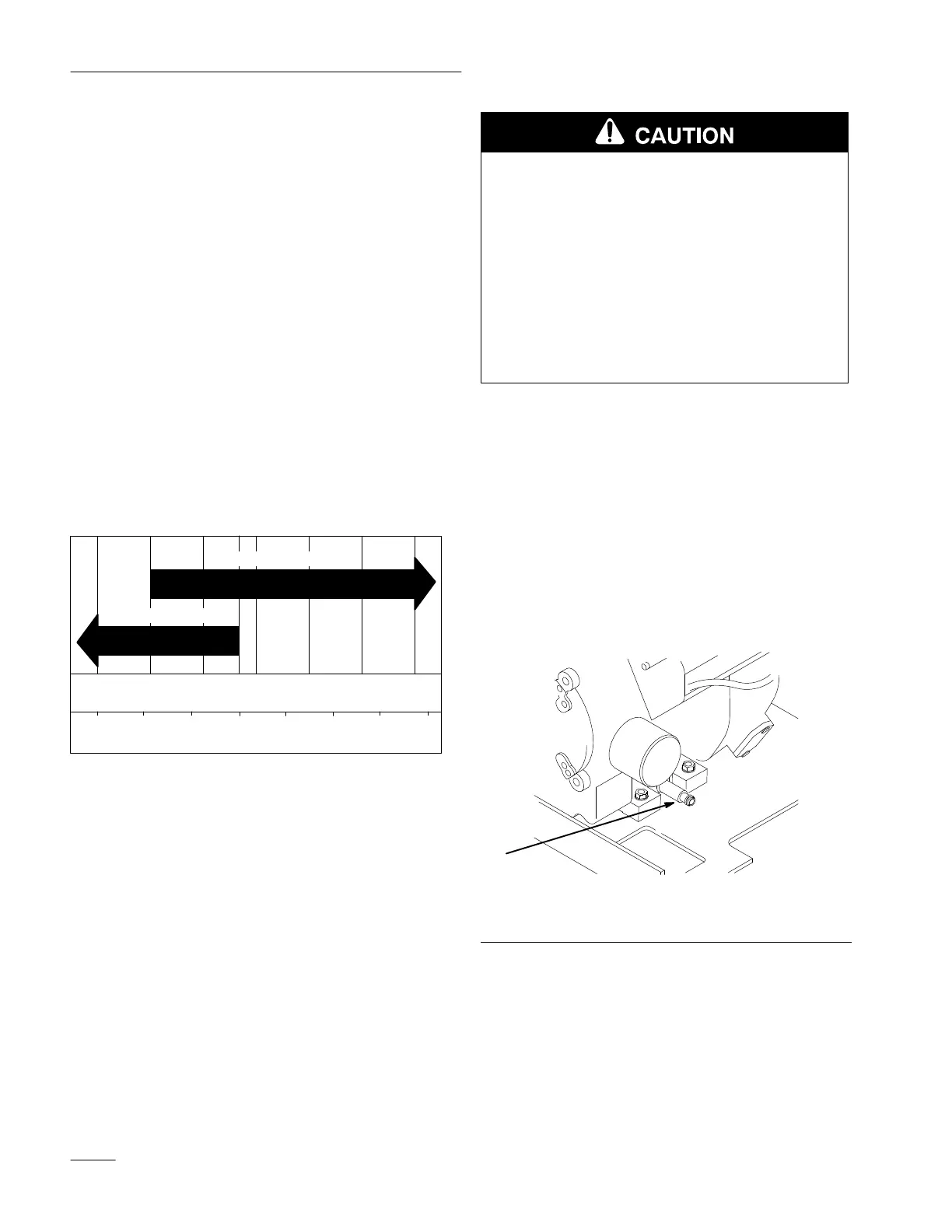

Figure 21
1. Oil
drain valve
7. Remove the oil fill cap and slowly pour
approximately 80% of the specified amount of
oil in through the valve cover.
8. Check the oil level; refer to Checking the Oil
Level, page 15.
