ProductOverview

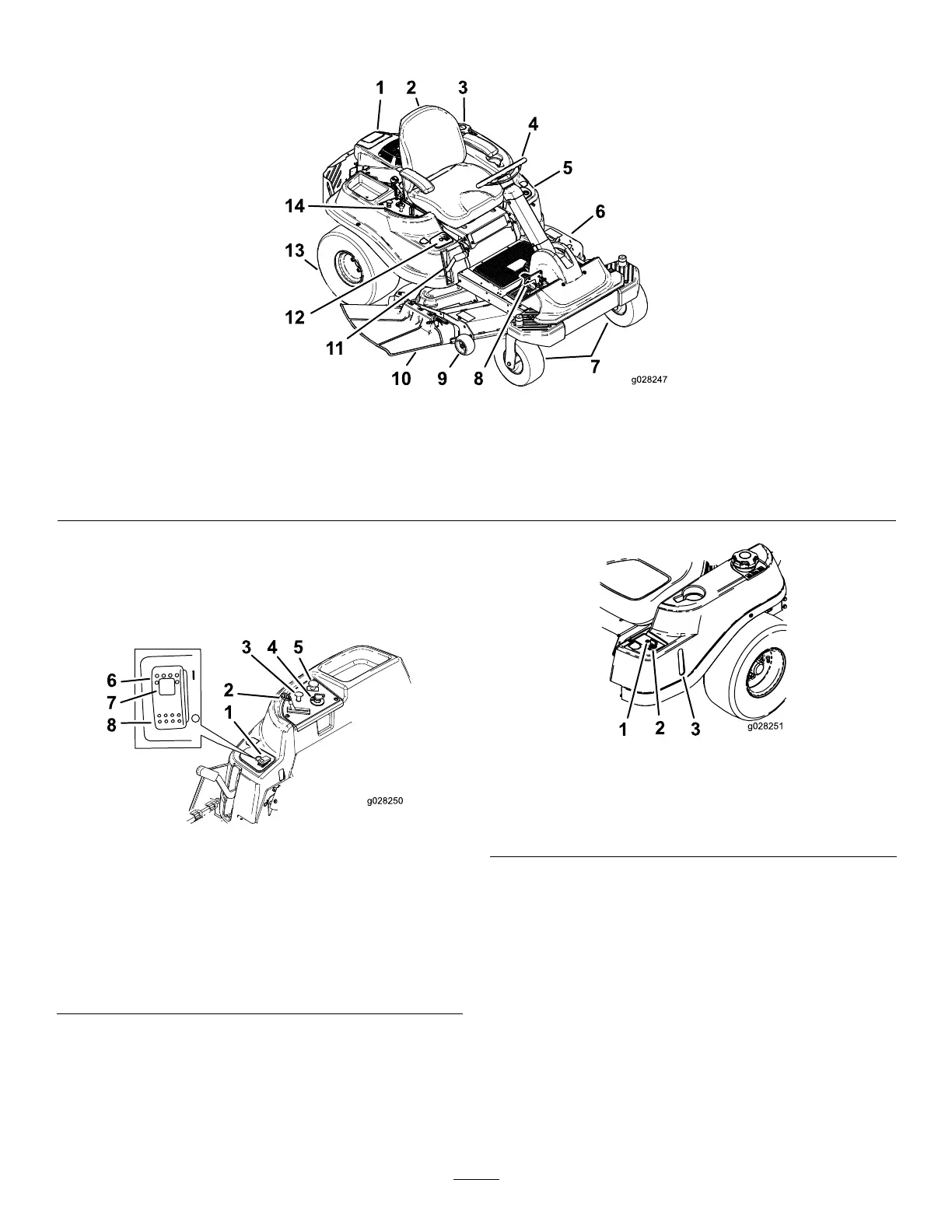

Figure4
1.Engine
5.KeyChoice
®
control
9.Anti-scalproller13.Reardrivewheel
2.Seat
6.Mowerdeck
10.Deector14.Controlpanel
3.Gastankcap
7.Frontcasterwheel
11.Height-of-cutlever
4.Steeringwheel
8.Traction-controlpedal
12.SmartPark
™
switch
Controls
BecomefamiliarwithallcontrolsinFigure5andFigure6
beforeyoustarttheengineandoperatethemachine.
Figure5
ControlPanel
1.Parkingbrakeswitch5.Blade-controlswitch
(powertake-off)
2.Throttle
6.Parkingbrake—On
3.Choke
7.Parkingbrakeindicator
light
4.Ignitionswitch
8.Parkingbrake—Off
Figure6
1.Operating–in–Reverse
warninglight
3.Fuel-presencewindow
2.KeyChoicekey(bluein
color)
IgnitionSwitch
Theignitionswitchhas3positions—Off,RunandStart.The
keywillturntoStartandmovebacktoRunuponrelease.
TurningthekeytotheOffpositionwillstoptheengine;
however,alwaysremovethekeywhenleavingthemachine
topreventsomeonefromaccidentallystartingtheengine
(Figure5).
ChokeControl
Usethechoketostartacoldengine.Pullthechokeknobup
toengageit.Pushdownonthechokeknobtodisengage
it(Figure5).
13
