Toro Titan ZX4800 User Manual

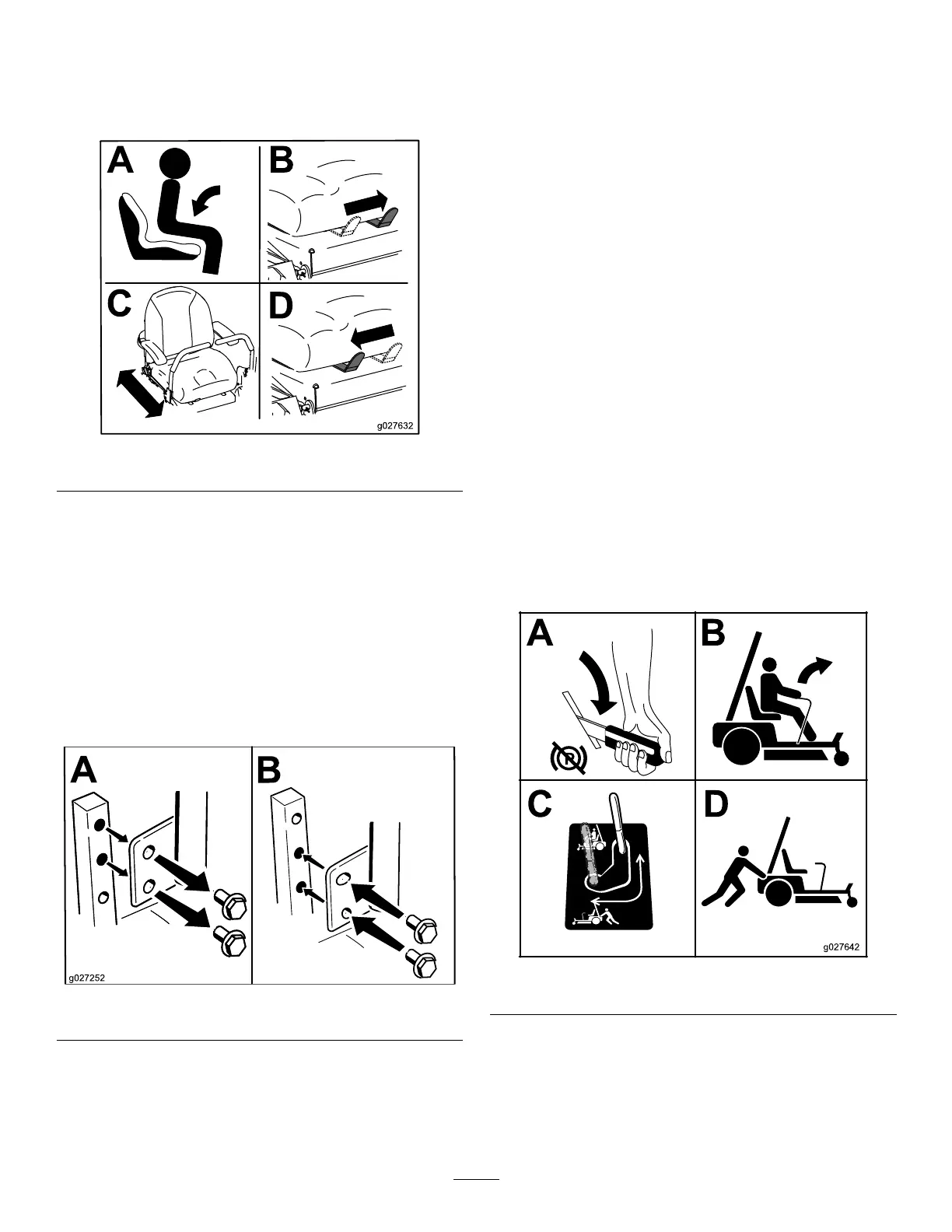

PositioningtheSeat
Theseatcanmoveforwardandbackward.Position
theseatwhereyouhavethebestcontrolofthe
machineandaremostcomfortable.
g027632
Figure25
AdjustingtheMotion
ControlLevers
AdjustingtheHeight
Note:Repeattheadjustmentfortheoppositecontrol
lever.
Themotioncontrolleverscanbeadjustedhigheror
lowerformaximumoperatorcomfort(Figure26).
g027252
Figure26
AdjustingtheTilt
Themotioncontrolleverscanbetiltedforeoraftfor
maximumoperatorcomfort.
1.Loosentheupperboltholdingthecontrollever
tothecontrolarmshaft.
2.Loosenthelowerboltjustenoughtopivotthe
controlleverforeoraft.Tightenbothboltsto
securethecontrolinthenewposition.
3.Repeattheadjustmentfortheoppositecontrol
lever.
PushingtheMachineby
Hand
Important:Alwayspushthemachinebyhand.
Nevertowthemachinebecausedamagemay
occur.
ToPushtheMachine
1.Parkthemachineonalevelsurfaceand
disengagethebladecontrolswitch.
2.Movethemotioncontrolleversoutwardto
neutrallockposition,stoptheengine,remove
thekey,andwaitforallmovingpartstostop
beforeleavingtheoperatingposition.Makesure
theparkingbrakeisdisengaged.
3.Dothisprocedureoneachsideofthe
machineFigure27.
g027642
Figure27
ToOperatetheMachine
Movethebypasstothepositionforoperatingthe
machine(Figure27)toengagethewheelmotors.
25

Toro Titan ZX4800 Specifications

General

Transmission	Hydrostatic
Cutting Width	48 inches
Ground Speed (Reverse)	4 mph
Seat	High-back, adjustable
Tires (Rear)	20 x 10.0-8
