Toro Titan ZX4800 User Manual

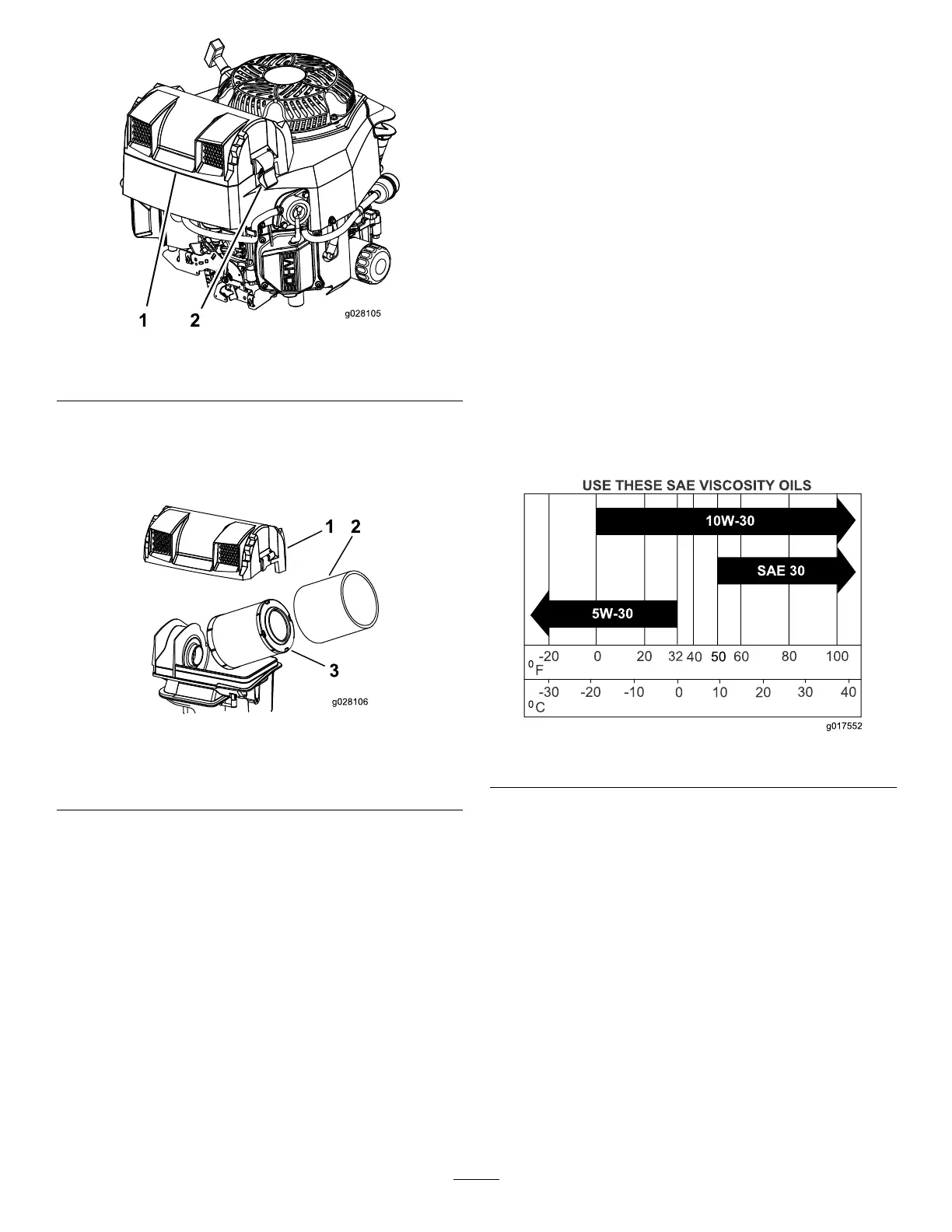

g028105
Figure33
1.Air-cleanercover2.Air-cleanerlatch
3.Removethefoamandpaperelements(Figure
34).
4.Removethefoamelementfromthepaper
element(Figure34).
g028106
Figure34
1.Air-cleanercover3.Paperelement
2.Foamelement
ServicingtheFoamElement
1.Washthefoamelementinwarmwaterand
detergent.
2.Rinseandallowittoairdry.
3.Lightlyoilthefoamelementwithnewoiland
squeezeoutexcessoil.
ServicingthePaperElement
1.Gentlytapthepaperelementtodislodgedirt.
Note:Donotwashthepaperelementoruse
pressurizedair,asthiswilldamagetheelement.
Note:Replaceadirty,bent,ordamaged
element.Handlethenewelementcarefully;
donotuseifthesealingsurfacesarebentor
damaged.
2.Cleantheair-cleanerbaseasrequired,and
checkthecondition.
InstallingtheElements
1.Installthefoamelementontothepaperelement.
2.Installtheelementsontotheair-cleanerbase
(Figure34).
3.Installthecover,andsecureitwiththelatches
(Figure33).
ServicingtheEngineOil
OilType:Detergentoil(APIserviceSJorhigher)
CrankcaseCapacity:1.9L(64oz)whenthelter
ischanged
Viscosity:Seethetablebelow.
g017552
Figure35
CheckingtheEngine-OilLevel
ServiceInterval:Beforeeachuseordaily—Check
theengine-oillevel.
1.Parkthemachineonalevelsurface,disengage
theblade-controlswitch,stoptheengine,and
removethekey.
2.Makesuretheengineisstopped,level,andis
cool,sotheoilhastimetodrainintothesump.
3.Checktheengine-oillevel(Figure36).
33

Toro Titan ZX4800 Specifications

General

Transmission	Hydrostatic
Cutting Width	48 inches
Ground Speed (Reverse)	4 mph
Seat	High-back, adjustable
Tires (Rear)	20 x 10.0-8
