ServicingtheFuses
Theelectricalsystemisprotectedbyfuses.Itrequires
nomaintenance,however,ifafuseblowscheckthe
component/circuitforamalfunctionorshort.
1.Thefusesarelocatedonrighthandconsolenextto
theseat(Figure58).
2.Toreplacethefuses,pulloutonthefusetoremove
it.
3.Installanewfuse(
Figure58).

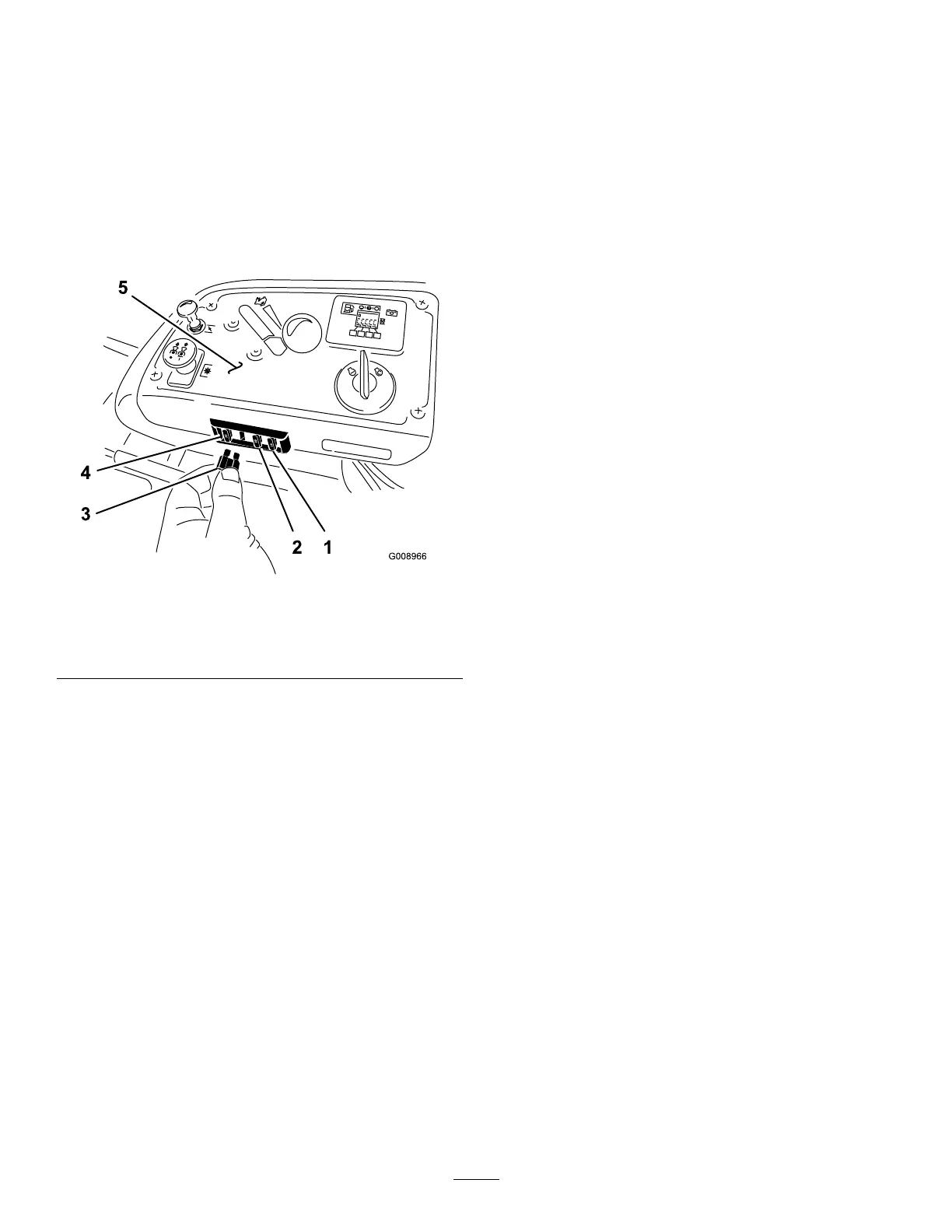

Figure58
1.Optionalaccesory-15amp
4.Main-25amp
2.Charge-25amp5.Console
3.PTO-10amp
DriveSystem
Maintenance
CheckingtheSeatBelt
ServiceInterval:Beforeeachuseordaily
Visuallyinspectseatbeltforwear,cuts,andproper
operationofretractorandbuckle.Replacebefore
operatingifdamaged.
CheckingtheRollover
ProtectionSystem(ROPS)
Knobs
ServiceInterval:Beforeeachuseordaily
Checkthatboththemountinghardwareandtheknobs
areingoodworkingcondition.Makesuretheknobs
arefullyengagedwiththeROPSintheraisedposition.
Theupperhoopoftherollbarmayneedtobepushed
forwardorpulledrearwardtogetbothknobsfully
engaged.
42
