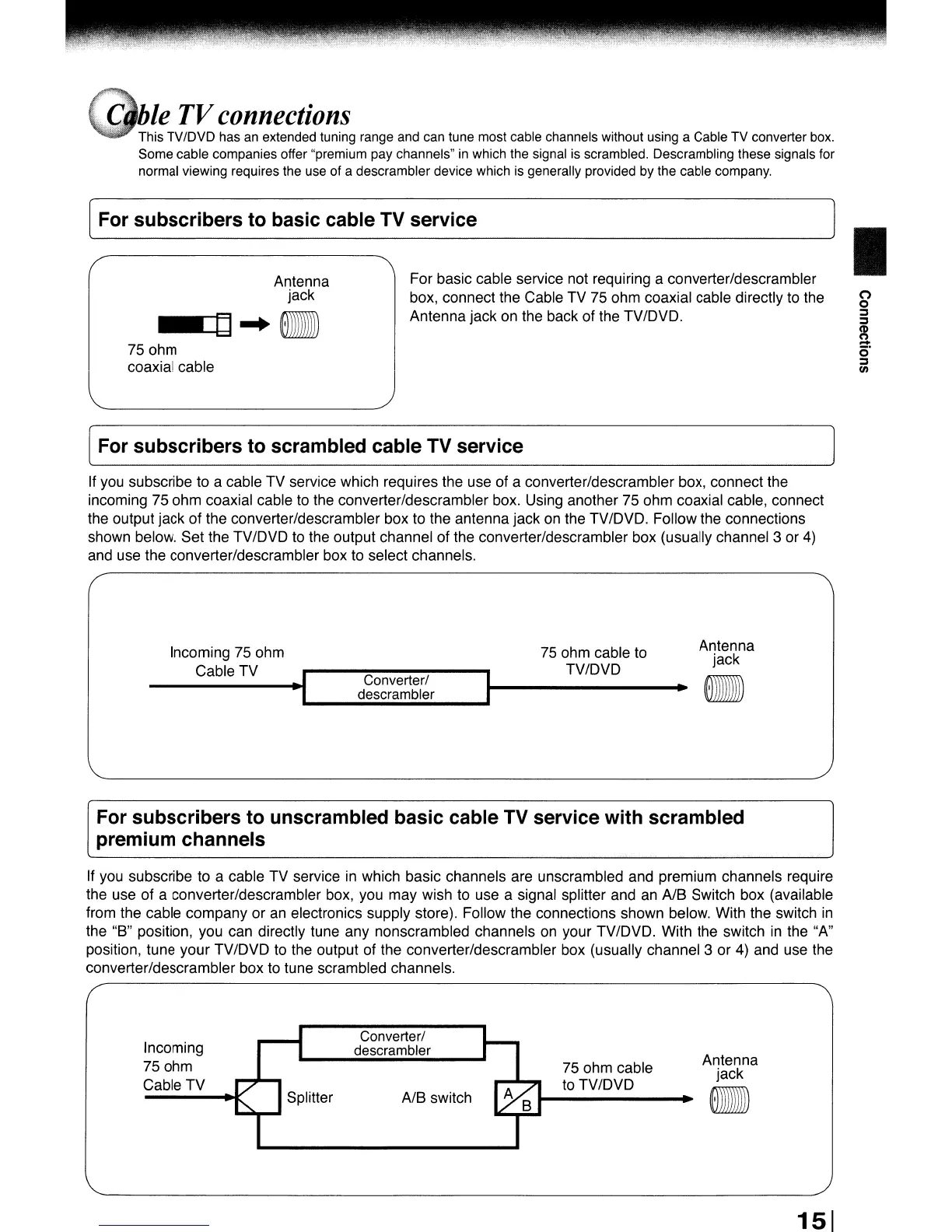

ible
TV
connections
This TV/DVD has an extended tuning range and can tune most cable channels without using a Cable TV converter box.
Some cable companies offer "premium pay channels"
in
which the signal is scrambled. Descrambling these signals for
normal viewing requires the use of a descrambler device which is generally provided by the cable company.
For subscribers to basic cable TV service
Antenna
jack
-=td
....
75 ohm
coaxial cable
For basic cable service not requiring a converter/descrambler
box, connect the Cable TV
75 ohm coaxial cable directly
to
the
Antenna jack on the back of the TV/DVD.
I
For subscribers to scrambled cable TV service
If you subscribe to a cable TV service which requires the use of a converter/descrambler box, connect the
incoming 75 ohm coaxial cable to the converter/descrambler box. Using another 75 ohm coaxial cable, connect
the output jack of the converter/descrambler box to the antenna jack on the TV/DVD. Follow the connections
shown below. Set the TV/DVD to the output channel of the converter/descrambler box (usually channel 3 or
4)
and use the converter/descrambler box to select channels.
75 ohm cable to
TV/DVD
Incoming
75 ohm
Cable TV
I Converterl
-------
.....
~
descrambler
----------
••
--_
.........................
_
......
Antenna
jack
•
For subscribers to unscrambled basic cable TV service with scrambled
premium channels
If you subscribe to a cable TV service
in
which basic channels are unscrambled and premium channels require
the use of a converter/descrambler box, you may wish to use a signal splitter and an
AlB Switch box (available
from the cable company or an electronics supply store). Follow the connections shown below. With the switch
in
the
"B"
position, you can directly tune any nonscrambled channels on your TV/DVD. With the switch
in
the "A"
position, tune your TV/DVD to the output of the converter/descrambler box (usually channel 3 or 4) and use the
converter/descrambler box to tune scrambled channels.
Incoming
75 ohm
Cable
TV
Converter/
descrambler
AlB switch
75 ohm cable
to TV/DVD
Antenna
jack
•
151
