Installation Guidelines
Toshiba DP5000-Series Digital Telephones
13 of 20
Installation Guidelines

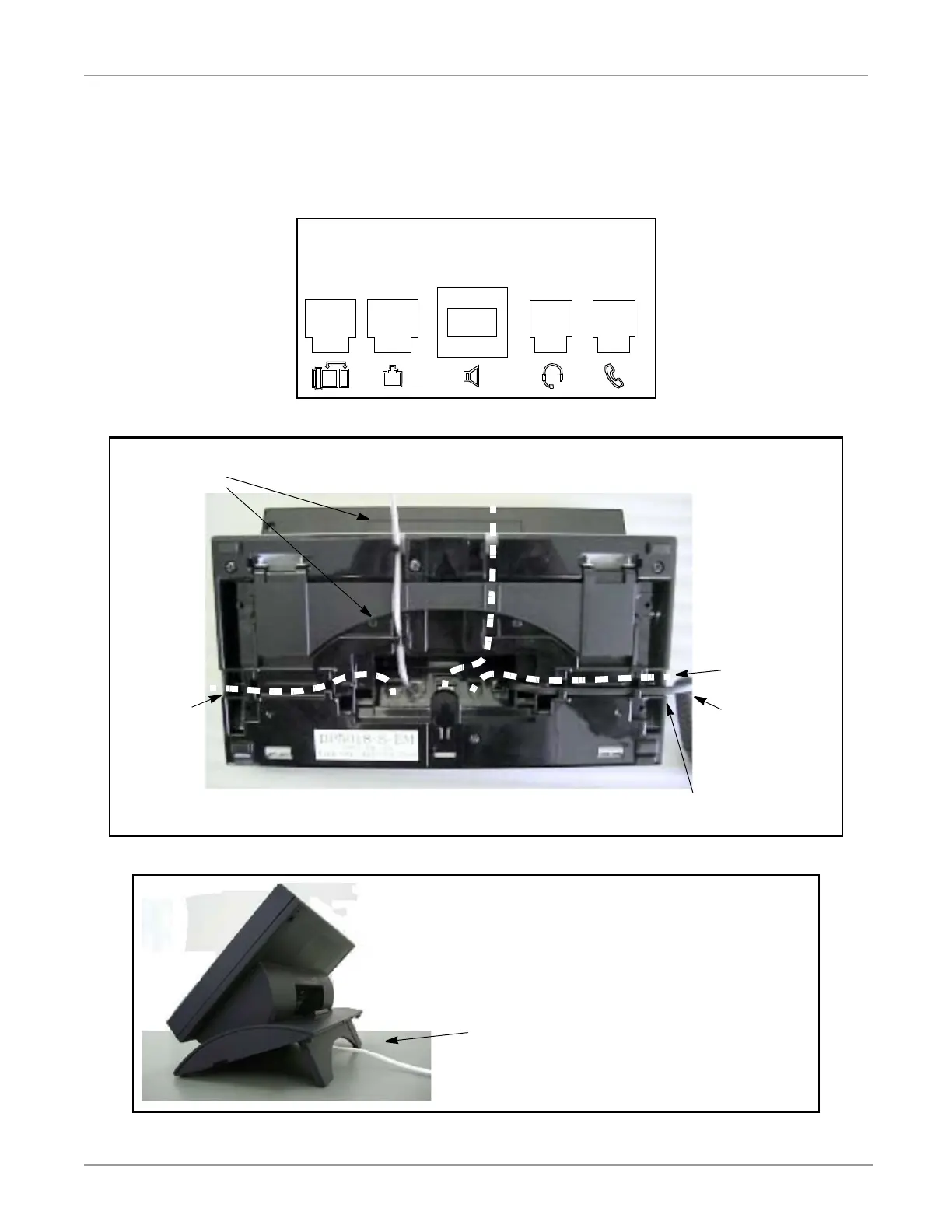

The connectors on the DP5000-series telephones are identified with icons. The connector icons and their
meaning are shown below.
Connectors
ADM HandsetHeadset
Ext. Speaker
Line Cord
Line Cord
ADM Cord Handset Cord
Headset Cord
External
Speaker (BESCB)(To CIX system)
The DP5000-series telephones include the special long-tail handset cords
required to fit the new tilt bases.
Cable clips
When the tilt stand extension is used, simply
remove the line cord from under the rear cable
clip. This will allow the tilt stand extension to
deploy without strain on the line cord.
