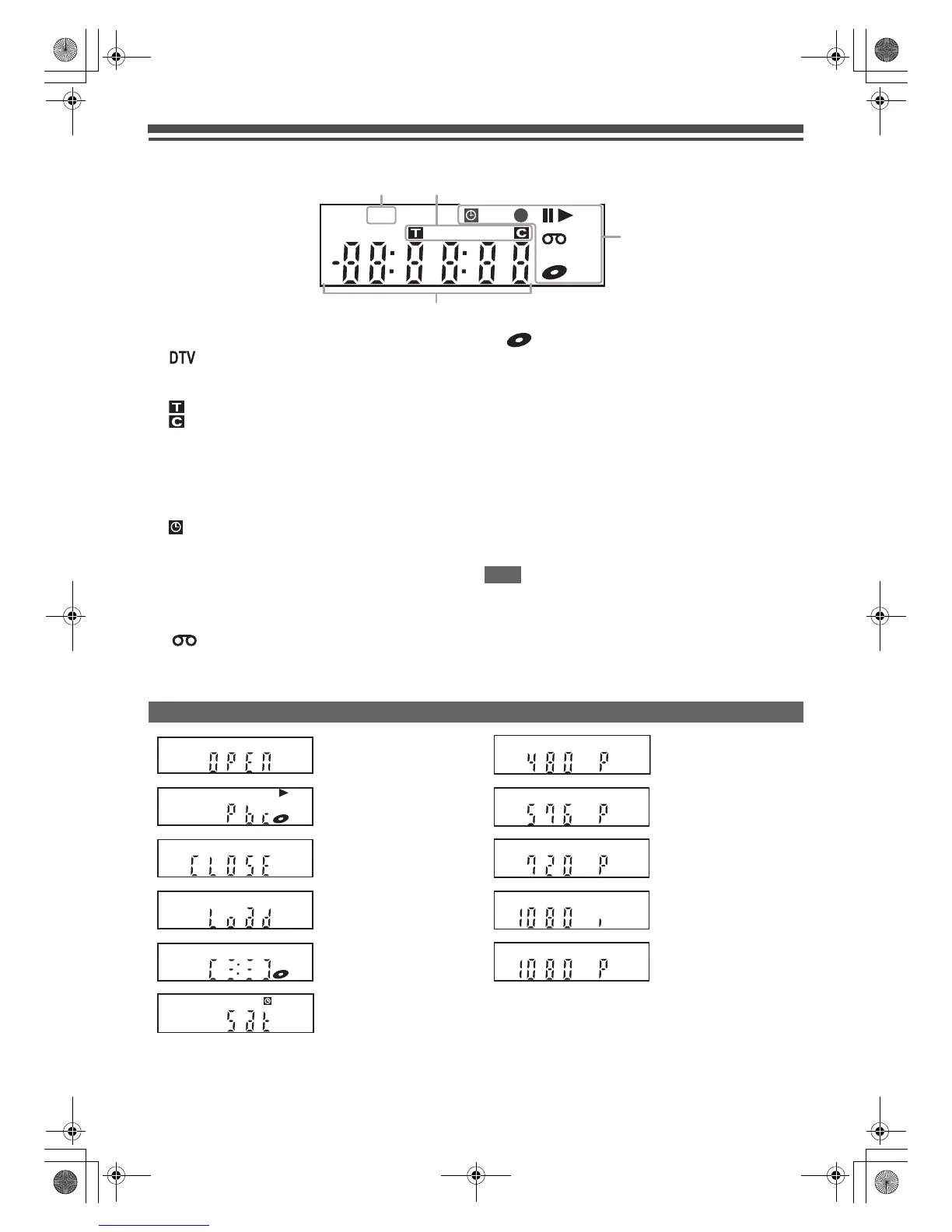

Front Panel Display Guide
1 DTV indicator
2 Title / Track and Chapter number
3 Current status of the unit
4 Displays the following
• Playing back time
• Current title / chapter / track / file number
• Recording time / remaining time
•Clock
• Channel number
• One-touch Timer Recording (OTR) remaining time
• Selected HDMI video resolution
Note
• Except when satellite recording is in standby, front panel
display stays off while the unit is in power off / timer-standby
mode.
This is a new Power Save (ECO) feature.
The disc tray is opening.
The PBC function of the
video CD is activated.
The disc tray is closing.
A disc is loading.
Data is being recorded on a
disc.
Appears when the satellite
link recording is in standby.
Appears when HDMI video
resolution (480p) is
selected.
Appears when HDMI video
resolution (576p) is
selected.
Appears when HDMI video
resolution (720p) is
selected.
Appears when HDMI video
resolution (1080i) is
selected.
Appears when HDMI video
resolution (1080p) is
selected.
DB
DTV
DVD
VCR
4
3
2
1
: Appears when the channel is in digital mode.
: Title / track number
: Chapter number
F: Appears when a tape or disc playback is paused.
Appears during step by step playback.
B: Appears when playing back a tape or disc.
F B: Appears during slow forward / reverse playback.
: Appears when the timer programming or One-
touch Timer Recording (OTR) is set and operating.
Appears when the unit goes into the satellite link
standby or recording mode.
Flashes when satellite recording was not executed
because of some error.
I: Appears during recording.
Flashes when recording being paused.
: Appears when a videotape is in this unit.
: Appears when a disc is in this unit.
: Appears during dubbing.
:Appears when this unit is in DVD output mode, or
the timer-standby mode for DVD recording.
:Appears when this unit is in VCR output mode, or
the timer-standby mode for VCR recording.
DB
DVD
