2-4 User’s Manual
The Grand Tour
Right side

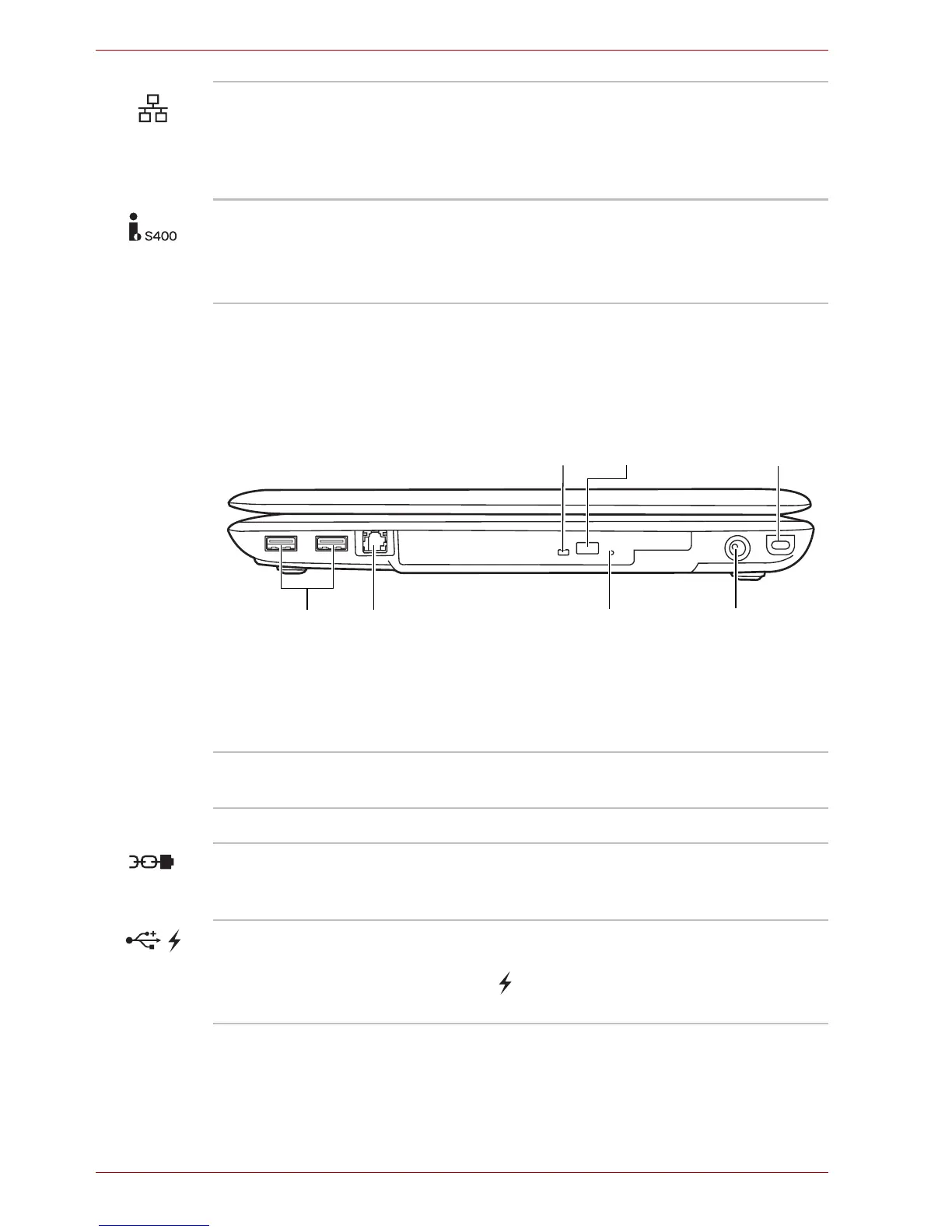

The following figure shows the computer's right side.
The right side of the computer
* The figure shows Modem Jack.
LAN Jack This jack lets you connect to a LAN. The adaptor
has built-in support for Fast Ethernet LAN or
Giga bit Ethernet.(Depend on the model you
purchased). Refer to Chapter 4, Operating
Basics, for details.
i.LINK (IEEE1394a)
Port
This port allows you to connect an external
device, such as a digital video camera, for
highspeed data transfer.
(Provided with some models)
USB
Ports
Emergency
Eject Hole
Modem
Jack or FM
Antenna
Jack*
ODD
Indicator
Eject
Button
Security
Lock
DC in 19V
Jack
ODD Indicator The ODD indicator glows amber when the
computer accesses the optical disc drive.
Eject Button Press this button to open the ODD tray.
Security Lock A security cable attaches to this port. The
optional security cable anchors your computer to
a desk or other large object to deter theft.
Universal Serial Bus
(USB 2.0) ports
Universal Serial Bus port which comply to the
USB 2.0 standard, are provided. The ports with
the icon ( ) has USB Sleep and Charge
function.
