Toshiba SureMark 4610 User Manual

Communication and power
Fiscal logic assembly
The fiscal logic assembly for the 4610-1NF printer consists of a tray assembly, optional keylock, covers,
fiscal screw, connectors, and ports. This section provides an illustration and text describing the parts of the
fiscal logic assembly.
K Top Cover
The top cover is secured in place with four screws and provides an extra layer of fiscal security by
providing an additional protection against tampering or disabling the fiscal logic card.
J Keylock (optional)
The optional keylock is used to lock the electronic journal card slot cover in the closed position
and secure the installed electronic journal card that contains the electronic journal.
I Electronic journal card slot cover
The electronic journal card slot cover is a device that can be used as an additional fiscal security
device to secure the electronic journal card in card slot.
L
A
C
D
E
F
G
H
I
J
K
B

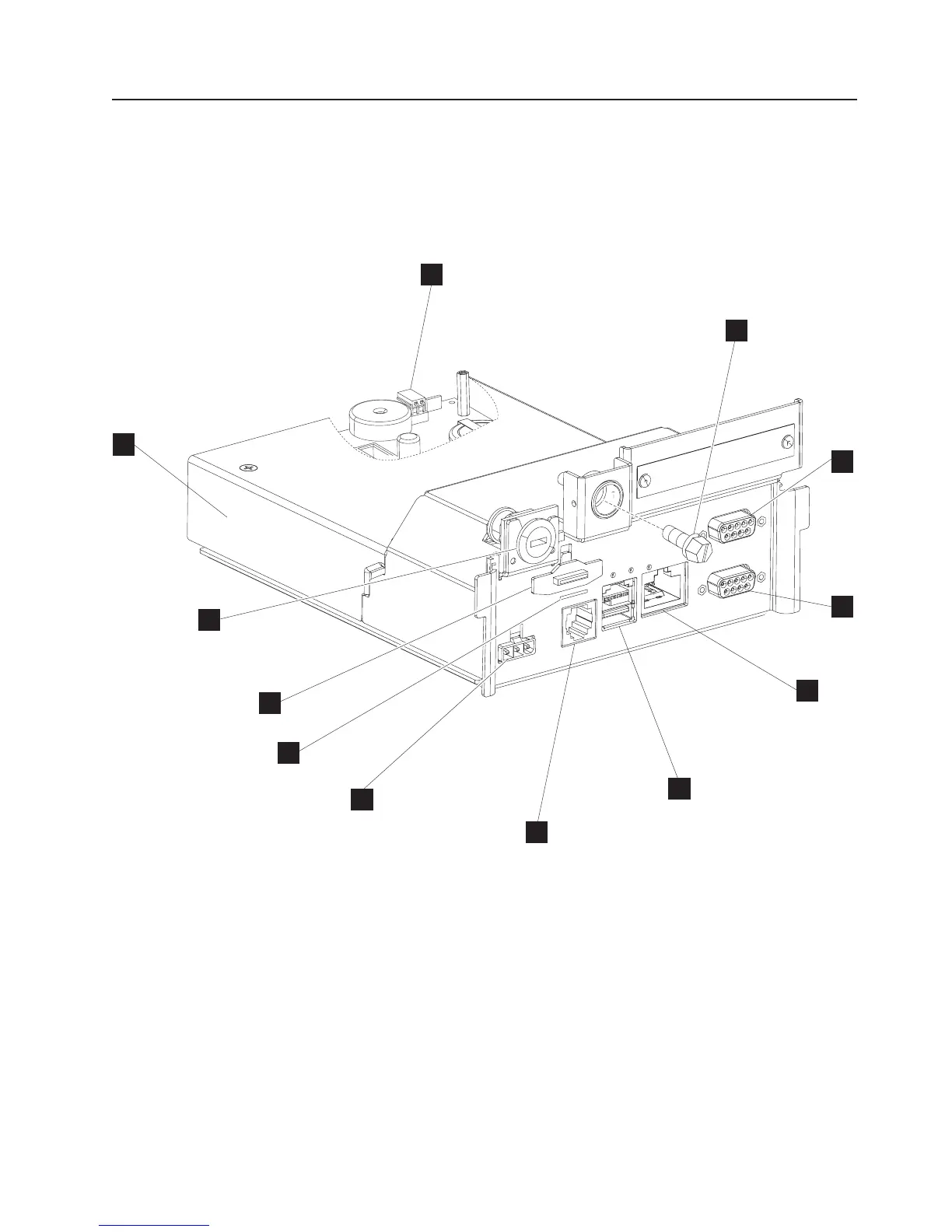

Figure 4. Fiscal Logic Assembly with USB and RS-232 communications options
Chapter 1. Introduction 7
|
|
|
|
|
|
|
|
|
|
