Toyota TNS 200 User Manual

05-01
RAV4 (A2) TNS 200
RAV4 (RHD) - 16

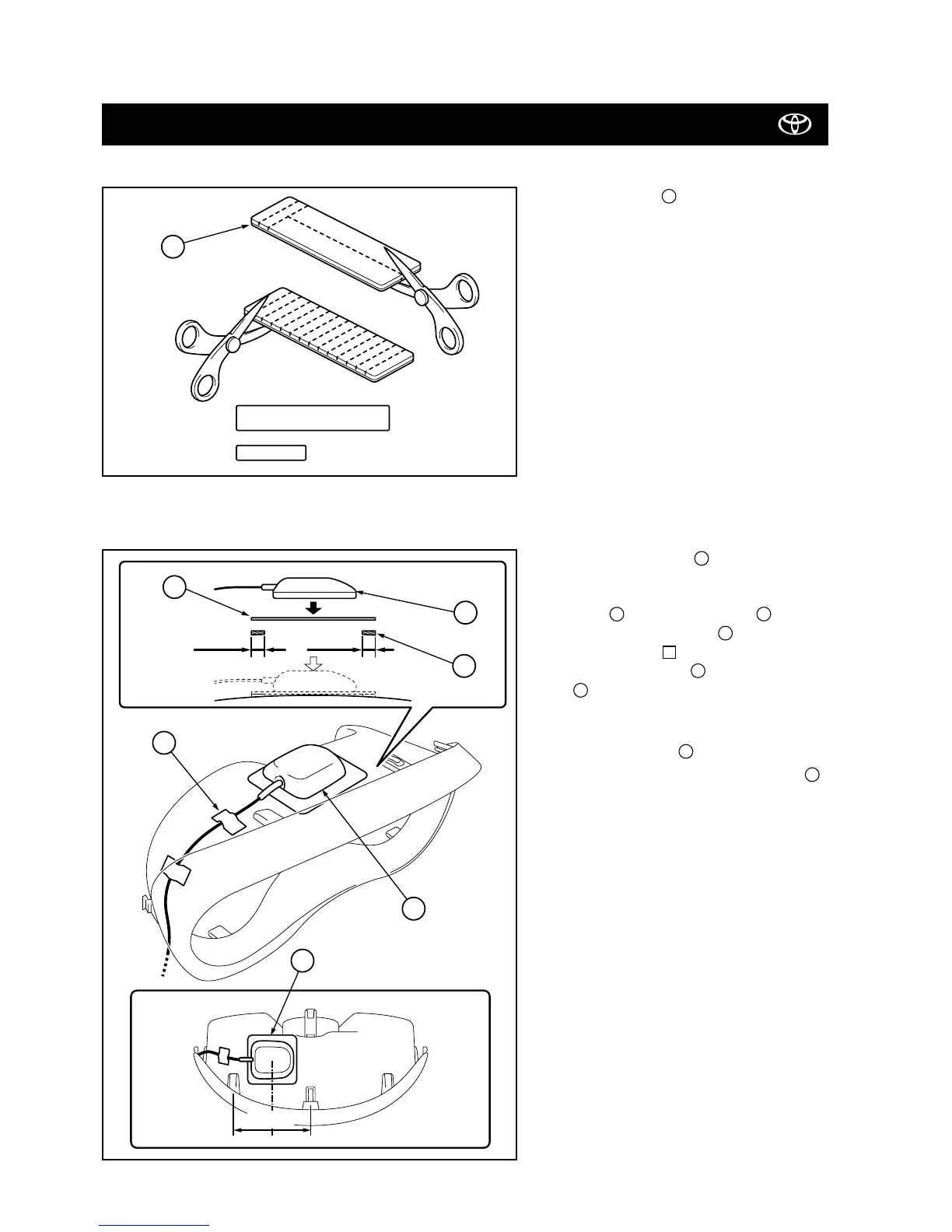

INSTALLATION OF THE GPS ANTENNA
1. Cut the foam into 2 large pieces
and 14 small pieces as shown in the
illustration.
8
Fig. 10
x 2
x 14
Fig. 11
10
3
11
10mm
10mm
8
3
10
Centre
8
2. Cut the butyl tape into pieces of
10mm width.
Remove the release paper of the earth
plate and apply the tape .
Attach the earth plate to the meter
cluster panel as shown and mount
the GPS antenna to the earth plate
.
CAUTION: Clean the installation
position surface before attaching
the earth plate .
Fix the antenna cord using the foam
(2x).
8
10
10
3
3
10
11
10
11
