TP-Link AP200 User Manual

17
Chapter 4
1. Visit http://tplinkap.net, then log in with the username and password you set for the
AP device.

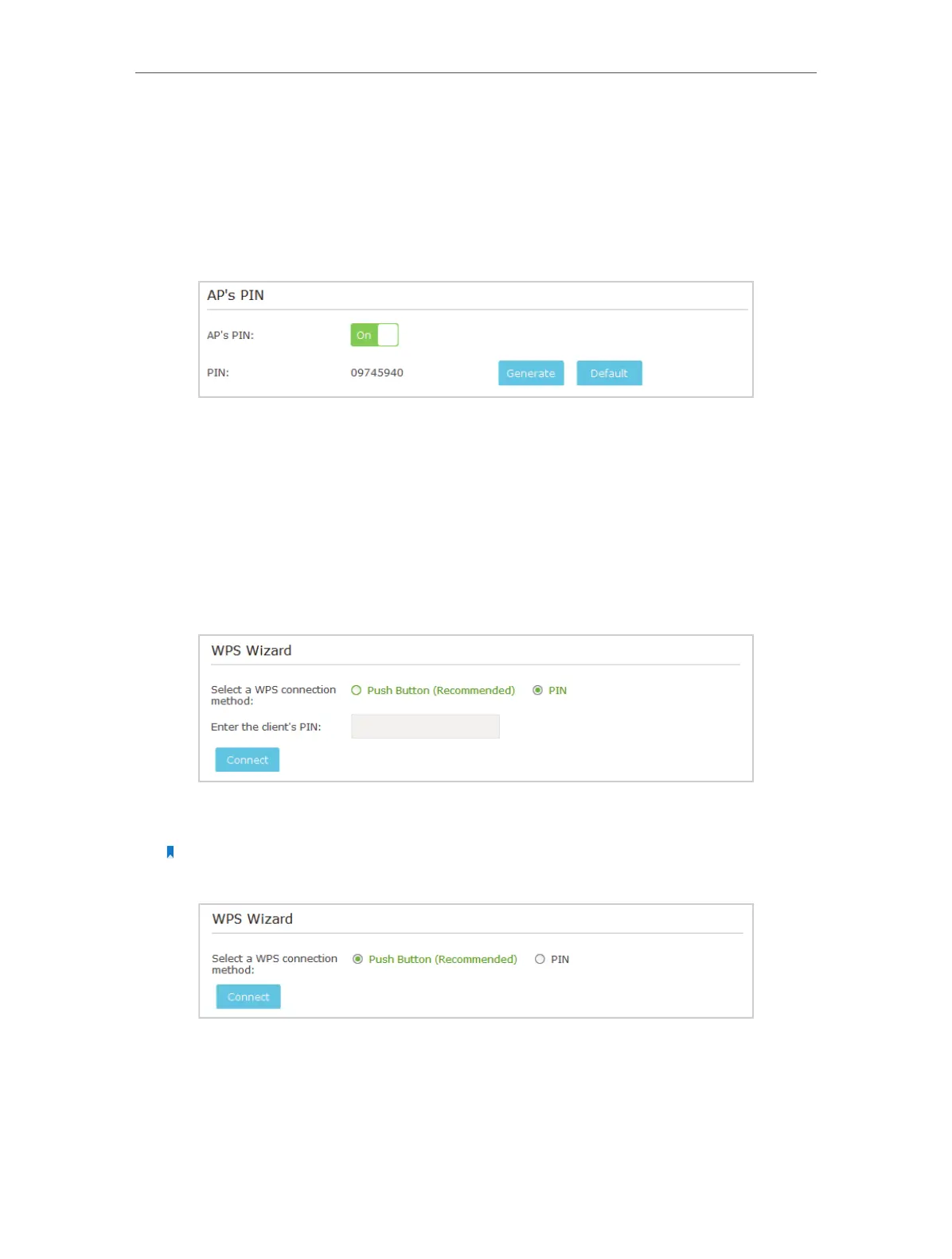

2. Go to Settings > Wireless > WPS. There are also two ways to use WPS PIN method:
using the AP device’s PIN and using the wireless client’s PIN.
¾ Using the AP‘s PIN
1 ) Toggle On Enable AP’s PIN to allow wireless clients to connect to the device
using the AP’s PIN.
2 ) Click Generate to generate a new PIN randomly or click Default to restore the
current PIN to the factory default PIN. Using this PIN to connect to the AP
device. The default PIN can be found on the label of the AP device.
¾ Using the wireless client’s PIN
1 ) Select the PIN as the setup method.
2 ) Entering the wireless client’s WPS PIN into Enter the client’s PIN field and click
Connect.
Note:
Selecting Push button (Recommended) is equal to pressing the physical WPS button on the device.
4. 3. Specify the Wireless Settings
Follow the steps below to check or modify your wireless connection settings.

TP-Link AP200 Specifications

General

2.4 GHz	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u
Receiver sensitivity	2.4GHz: 11g 54M: -76dBm@10% PER 11n HT20 MCS7: -73.5dBm@10% PER 11n HT40 MCS7: -71dBm@10% PER 5GHz: 11a 6Mbps:-93dBm@10% PER 11a 54Mbps: -75dBm@10% PER 11ac HT20 MCS8: -67dBm@10% PER 11ac HT40 MCS9: -62.5dBm@10% PER 11ac HT80 MCS9: -59.5dBm@10% PER
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	750 Mbit/s
Maximum data transfer rate (5 GHz)	433 Mbit/s
Maximum data transfer rate (2.4 GHz)	300 Mbit/s
Output current	1 A
Output voltage	12 V
Antenna type	External
Antenna features	Detachable antenna
Antennas quantity	2
Internal	No
Placement	Table
Certification	CE, FCC, RoHS
Product color	Black
Cables included	LAN (RJ-45)
Security algorithms	64-bit WEP, 128-bit WEP, WPA-PSK, WPA2-PSK, WPS
Compatible operating systems	Microsoft Windows 98SE, NT, 2000, XP, Vista, Windows 7, 8, 8.1, 10, Mac OS, NetWare, UNIX, Linux
Operating altitude	5 - 90 m
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	10 - 90 %
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1

Weight and Dimensions

Depth	162 mm
Width	242 mm
Height	44 mm
