TP-Link Archer AX95 User Manual

95
Chapter 14
Customize Your Network Settings

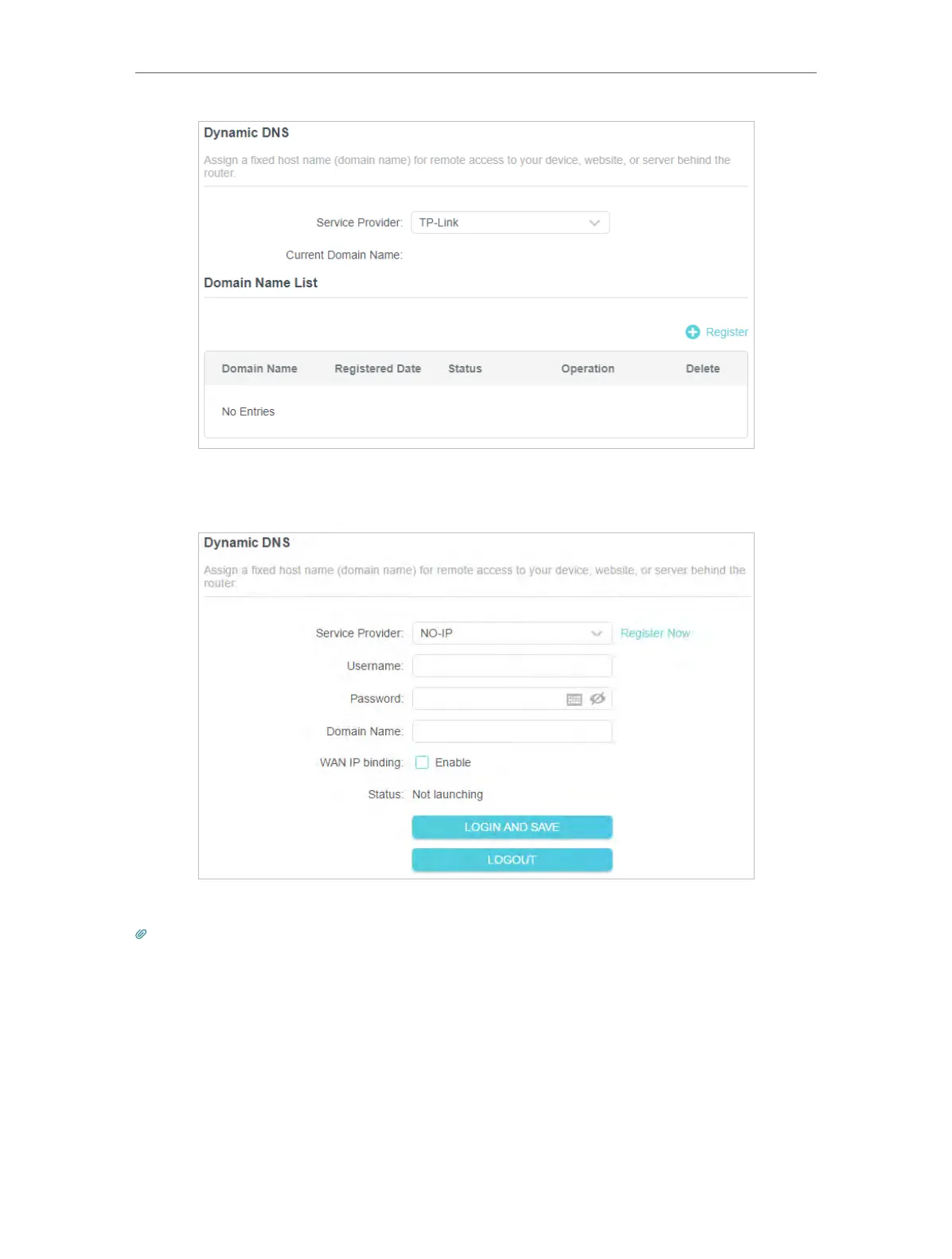

If you have selected NO-IP or DynDNS, enter the username, password and domain
name of your account.
5. Click LOGIN AND SAVE.
Tips: If you want to use a new DDNS account, please click Logout first, and then log in with a new account.
14. 5. Create Static Routes
Static routing is a form of routing that is configured manually by a network administrator
or a user by adding entries into a routing table. The manually-configured routing
information guides the router in forwarding data packets to the specific destination.

TP-Link Archer AX95 Specifications

General

DSL WAN	No
Ethernet WAN	Yes
WAN connection type	RJ-45
Wi-Fi band	Tri-band (2.4 GHz / 5 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
WLAN data transfer rate (max)	7800 Mbit/s
WLAN data transfer rate (first band)	574 Mbit/s
WLAN data transfer rate (third band)	4804 Mbit/s
WLAN data transfer rate (second band)	2402 Mbit/s
Product type	Tabletop router
Product color	Black
VPN server	OpenVPN, PPTP, L2TP
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100, 1000, 2500 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Number of guest networks (5 GHz)	3
Number of guest networks (2.4 GHz)	1
Antennas quantity	8
Processor cores	4
Processor frequency	1700 MHz
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Firewall security	SPI Firewall
Security algorithms	WPA, WPA-Enterprise, WPA2, WPA2-Enterprise, WPA3
Package type	Box
Number of products included	1 pc(s)
Power source type	DC
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	183.9 mm
Width	277.3 mm
Height	57.3 mm
