TP-Link Archer AXE75 User Manual

36
Chapter 7
Guest Network
7. 2. Customize Guest Network Options
1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for
the router.

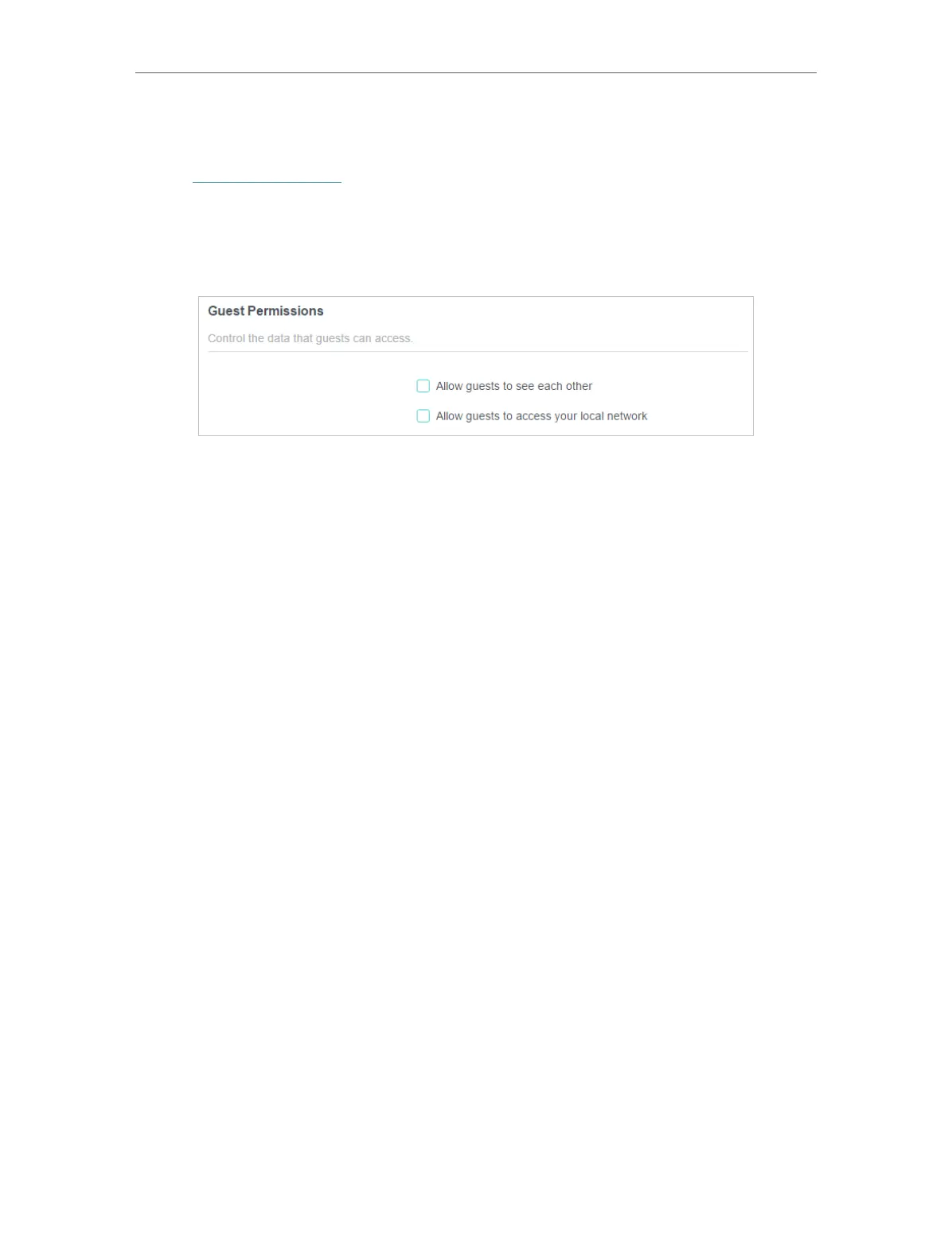

2. Go to Advanced > Wireless >Guest Network. Locate the Guest Permissions section.
3. Customize guest network options according to your needs.
• Allow guests to see each other
Tick this checkbox if you want to allow the wireless clients on your guest network
to communicate with each other via methods such as network neighbors and Ping.
• Allow guests to access your local network
Tick this checkbox if you want to allow the wireless clients on your guest network
to communicate with the devices connected to your router’s LAN ports or main
network via methods such as network neighbors and Ping.
4. Click SAVE. Now you can ensure network security and privacy!

TP-Link Archer AXE75 Specifications

General

Ethernet WAN	Yes
SIM card slot	No
WAN connection type	RJ-45
3G/4G USB modem compatibility	-
VPN server	OpenVPN Server
VPN support	OpenVPN Server PPTP VPN Server L2TP VPN Server
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11n
Ethernet LAN data rates	2500 Mbit/s
Ethernet interface type	2.5 Gigabit Ethernet
Ethernet LAN interface type	Gigabit Ethernet
Number of guest networks (2.4 GHz)	1
Ethernet LAN (RJ-45) ports	5
IPv4 & IPv6 features	Dual stack IPv4/IPv6
Supported network protocols	IPv4, IPv6
Firewall security	SPI Firewall
Input current	2.5 A
Output voltage	12 V
Power source type	DC
Product type	Tabletop router
Product color	Black
LED indicators	Power, WAN, WLAN
Transmit power	FCC: ≤29dBm (2.4 GHz), ≤28dBm (5 GHz), ≤22dBm (6 GHz) CE: ≤17dBm (2.4 GHz), ≤27dBm (5 GHz), ≤20dBm (6 GHz) dBmW
Antennas quantity	6
Wi-Fi band	Tri-band (2.4 GHz / 5 GHz / 6 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
WLAN data transfer rate (max)	5400 Mbit/s
WLAN data transfer rate (first band)	574 Mbit/s
WLAN data transfer rate (second band)	2402 Mbit/s
Processor cores	4
Processor frequency	1700 MHz
Cables included	LAN (RJ-45)
Package depth	265 mm
Package width	328 mm
Package height	120 mm
Package weight	1530 g
Number of products included	1 pc(s)
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Harmonized System (HS) code	85176990
Sustainability certificates	Federal Communications Commission (FCC), RoHS

Weight and Dimensions

Depth	147.2 mm
Width	272.5 mm
Height	49.2 mm
